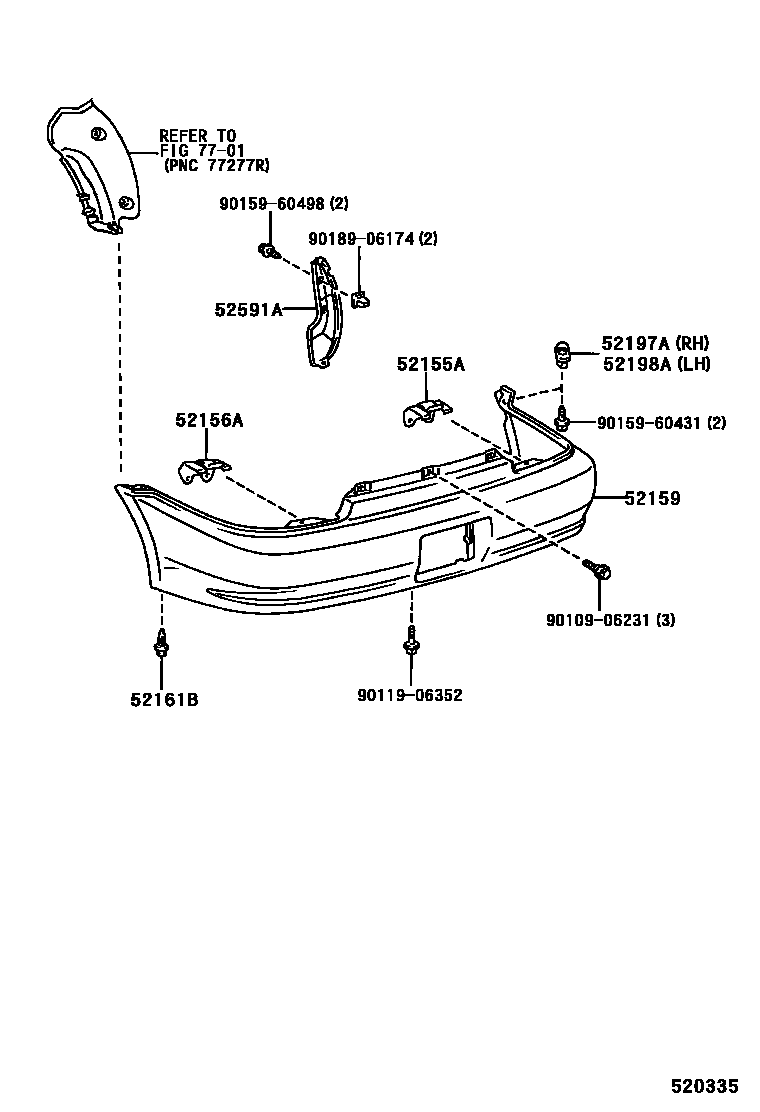

Toyota COROLLA 后保险杠及附件 — Figure 5202
Toyota COROLLA EPC diagram 5202, 后保险杠及附件, with 2 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52155A | Rear bumper right side bracket | 52155-16120 |
| 52156A | Rear bumper left bracket | 52155-16120 |
| 52159 | rear bumper cover | 52159-16470 · 52159-16550 |
| 52161B | Rear bumper insert | 52161-16010 |
| 52197A | Rear bumper right seal support | 52197-16020 |
| 52198A | Rear bumper left seal support | 52197-16020 |
| 52591A | Rear bumper seal | 52591-16090 |
