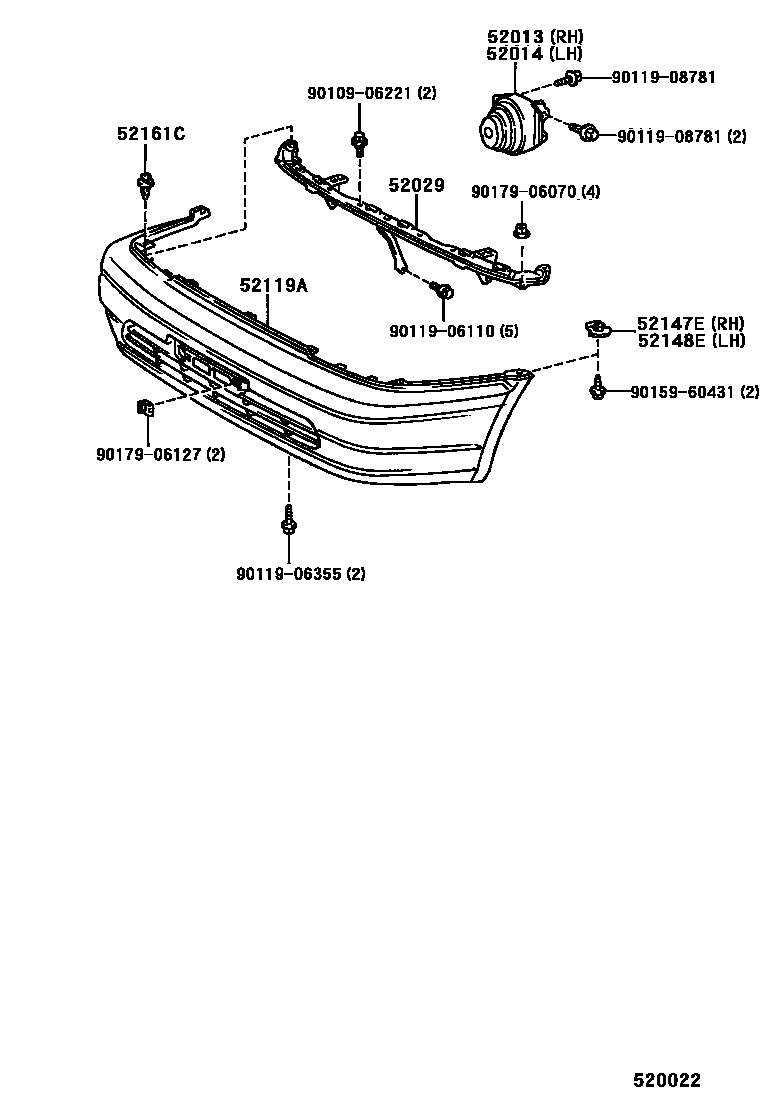

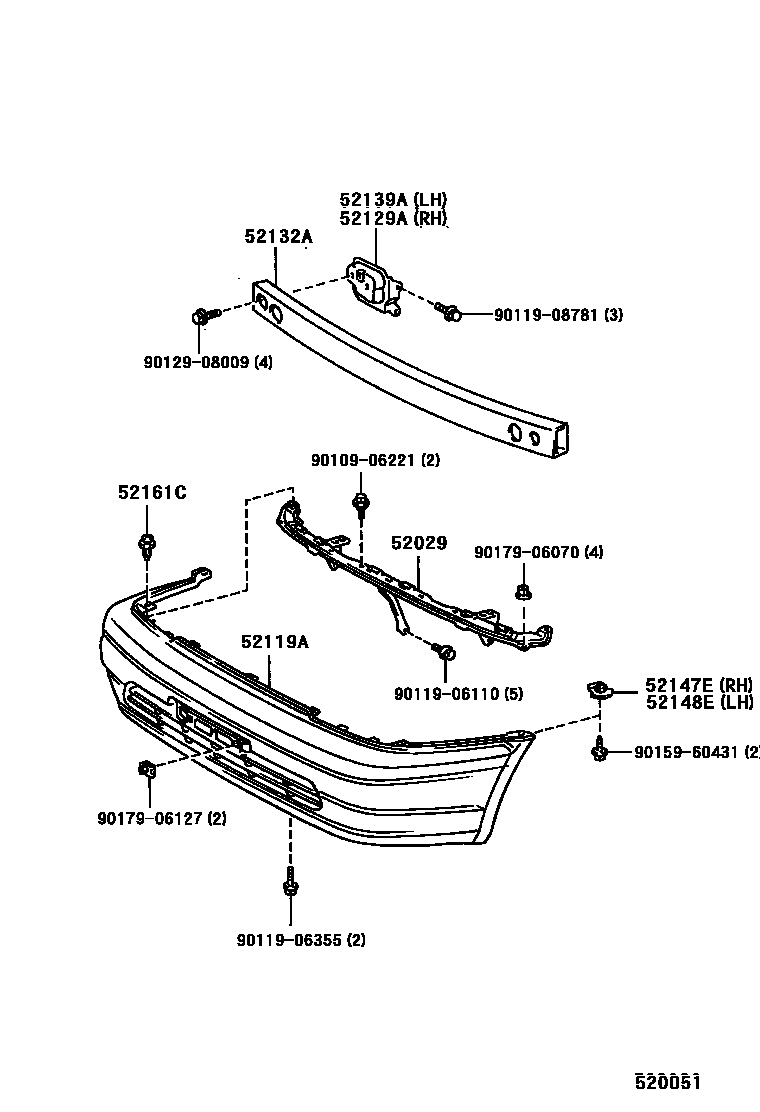

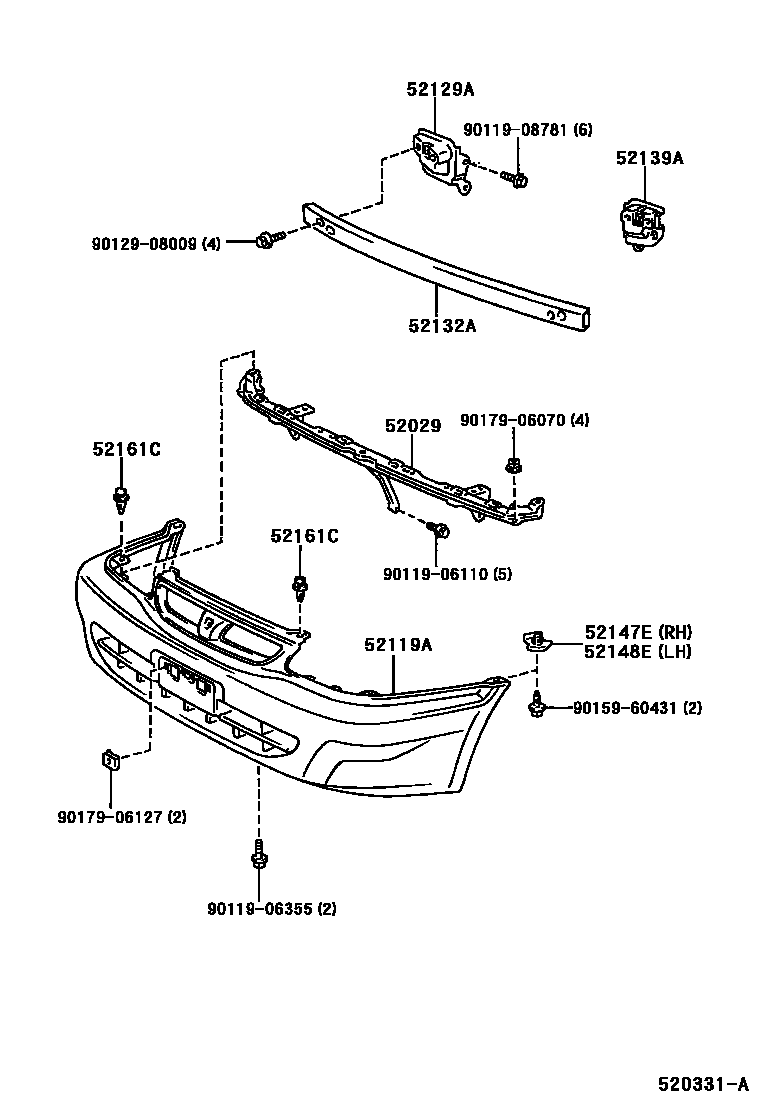

Toyota COROLLA 前保险杠及附件 — Figure 5201
Toyota COROLLA EPC diagram 5201, 前保险杠及附件, with 3 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52013 | Front bumper right inner arm sub-assembly | 52013-16010 |
| 52014 | Front bumper left inner arm sub-assembly | 52014-16010 |
| 52029 | Front bumper upper reinforcement sub-assembly | 52029-16050 · 52029-16052 |
| 52119A | front bumper cover | 52119-16400 · 52119-16560 |
| 52129A | Front bumper No. 2 upper right arm | 52129-16010 |
| 52132A | No. 2 front bumper reinforcement | 52132-16060 · 52132-16070 |
| 52139A | Front bumper No. 2 left upper arm | 52139-16010 |
| 52147E | Front bumper right side mounting support | 52147-16080 |
| 52148E | Front bumper left side mounting support | 52147-16080 |
| 52161C | front bumper insert | 52161-16010 |
