Toyota COROLLA Rear Spring & Shock Absorber — Figure 4804

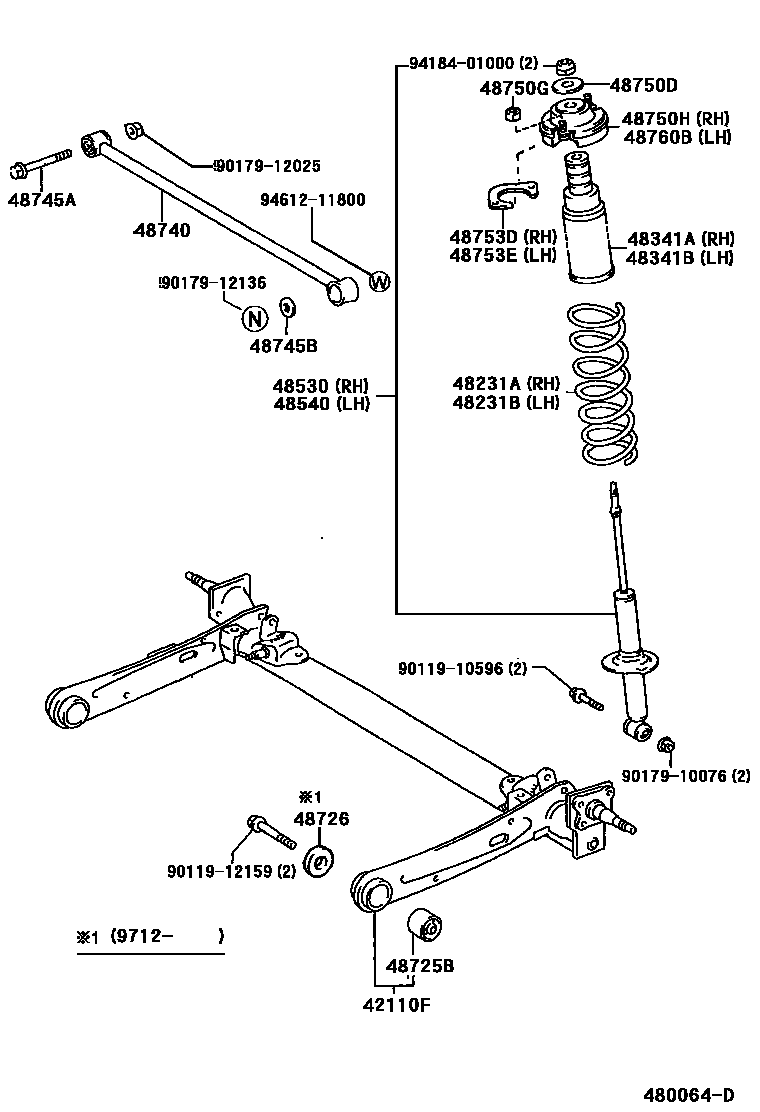

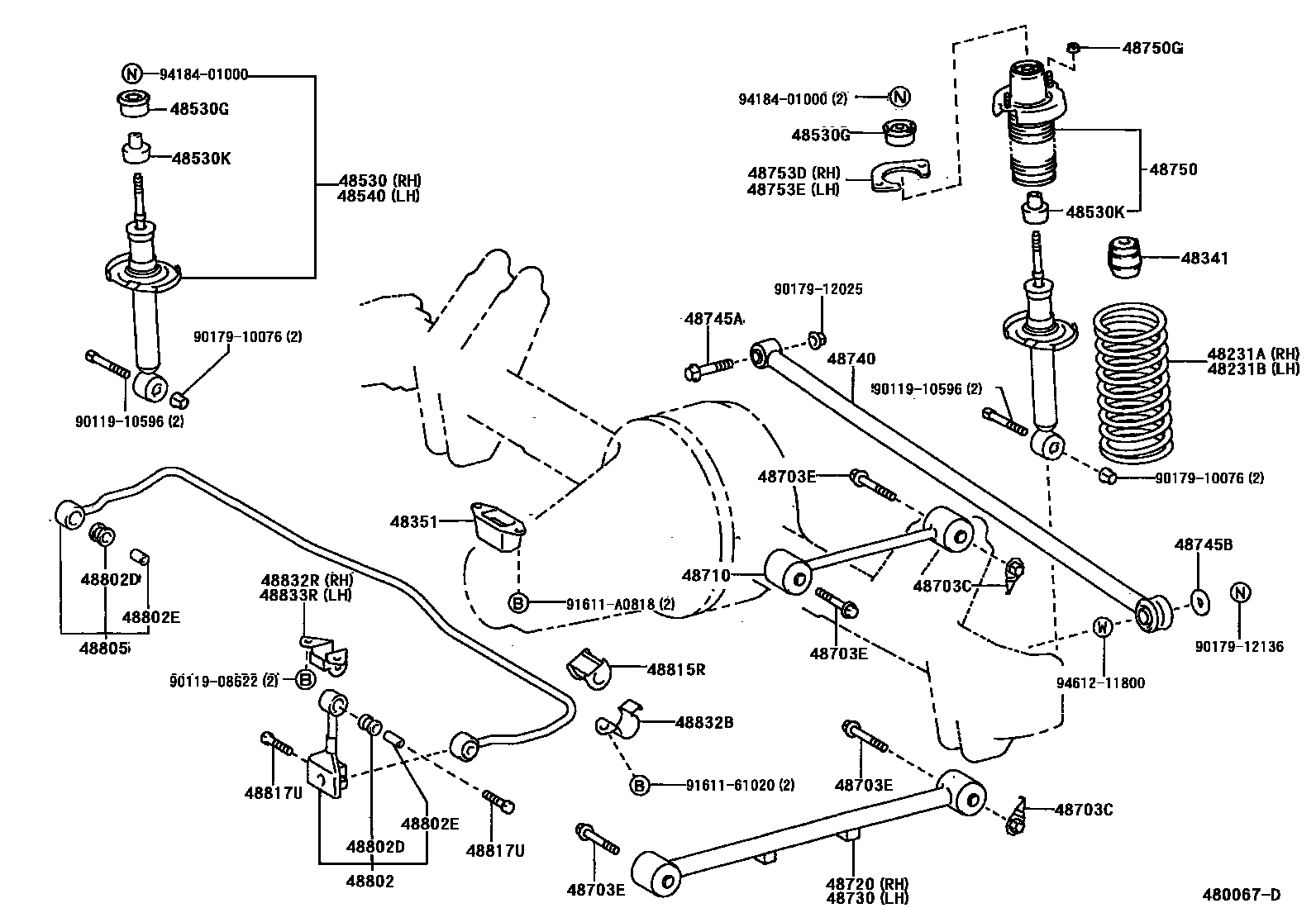

Toyota COROLLA EPC diagram 4804, Rear Spring & Shock Absorber, with 2 images and 37 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 42110F | rear axle assembly | 42110-16160 · 42110-16170 · 42110-16180 · 42110-16181 · 42110-16190 · 42110-16191 |
| 48231A | Right rear coil spring | 48231-10240 · 48231-16690 · 48231-16710 · 48231-16790 · 48231-16820 · 48231-16840 · 48231-16870 · 48231-1G030 |
| 48231B | Left rear coil spring | 48231-10240 · 48231-16690 · 48231-16710 · 48231-16790 · 48231-16820 · 48231-16840 · 48231-16870 · 48231-1G030 |
| 48341 | Rear spring buffer block | 48341-10111 |
| 48341A | No. 1 right rear spring buffer block | 48341-10140 |
| 48341B | No. 1 left rear spring buffer block | 48341-10140 |
| 48351 | Differential case buffer block | 48351-12020 |
| 48530 | Right rear shock absorber assembly | 48530-19565 · 48530-19575 · 48530-19585 · 48530-19605 · 48530-19855 · 48530-19865 · 48530-19875 · 48530-19885 · 48530-80012 · 48530-80013 · 48530-80017 |
| 48530G | Rear shock absorber No. 1 cushion | 90948-01051 |
| 48530K | Rear shock absorber No.2 cushion | 90948-01052 |
| 48540 | Left rear shock absorber assembly | 48530-19565 · 48530-19575 · 48530-19585 · 48530-19605 · 48530-19855 · 48530-19865 · 48530-19875 · 48530-19885 · 48530-80012 · 48530-80013 · 48530-80017 |
| 48703C | Nut (for rear suspension arm) | 90179-12092 |
| 48703E | Bolts (for rear suspension arms) | 90119-12099 · 90119-12213 |
| 48710 | Upper control arm assembly | 48710-16060 |
| 48720 | Right lower control arm assembly | 48720-16050 |
| 48725B | Rear suspension No. 1 arm bushing | 48725-10040 · 48725-16150 |
| 48726 | Rear suspension arm mount | 48726-16010 |
| 48730 | Left lower control arm assembly | 48720-16050 |
| 48740 | Rear transverse control rod assembly | 48740-16070 · 48740-16080 · 48740-16100 |
| 48745A | Hexagonal bolt (for lateral control lever) | 90105-12070 |
| 48745B | Lateral control lever bumper washer | 90201-12037 |
| 48750 | Rear suspension support assembly | 48750-16051 |
| 48750D | Block (for rear mount to rear shock absorber) | 48597-10010 · 90948-02082 |
| 48750G | Nut (for rear suspension mount) | 90179-08090 · 90179-08206 |
| 48750H | Right rear suspension support assembly | 48750-16100 |
| 48753D | Right rear suspension support cover No. 2 | 48753-16020 |
| 48753E | Left rear suspension support cover No. 2 | 48753-16020 |
| 48760B | Left rear suspension support assembly | 48750-16100 |
| 48802 | Stabilizer bar connecting rod sub-assembly | 48802-16010 · 48803-16010 |
| 48802D | Stabilizer bar connecting rod bushing | 90385-11014 |
| 48802E | Spacer (for rear stabilizer bar) | 90560-10275 |
| 48805 | Rear stabilizer bar sub-assembly | 48805-16131 · 48805-16160 · 48805-16170 |
| 48815R | Rear stabilizer bar bushing | 48815-14060 · 48815-22010 · 48815-30070 |
| 48817U | Bolt (for rear stabilizer bar) | 91111-41040 |
| 48832B | Rear stabilizer bar bracket No. 2 | 48832-22020 |
| 48832R | Right rear stabilizer bar bracket No. 1 | 48832-16030 |
| 48833R | Left rear stabilizer bar bracket No. 1 | 48833-16010 |
