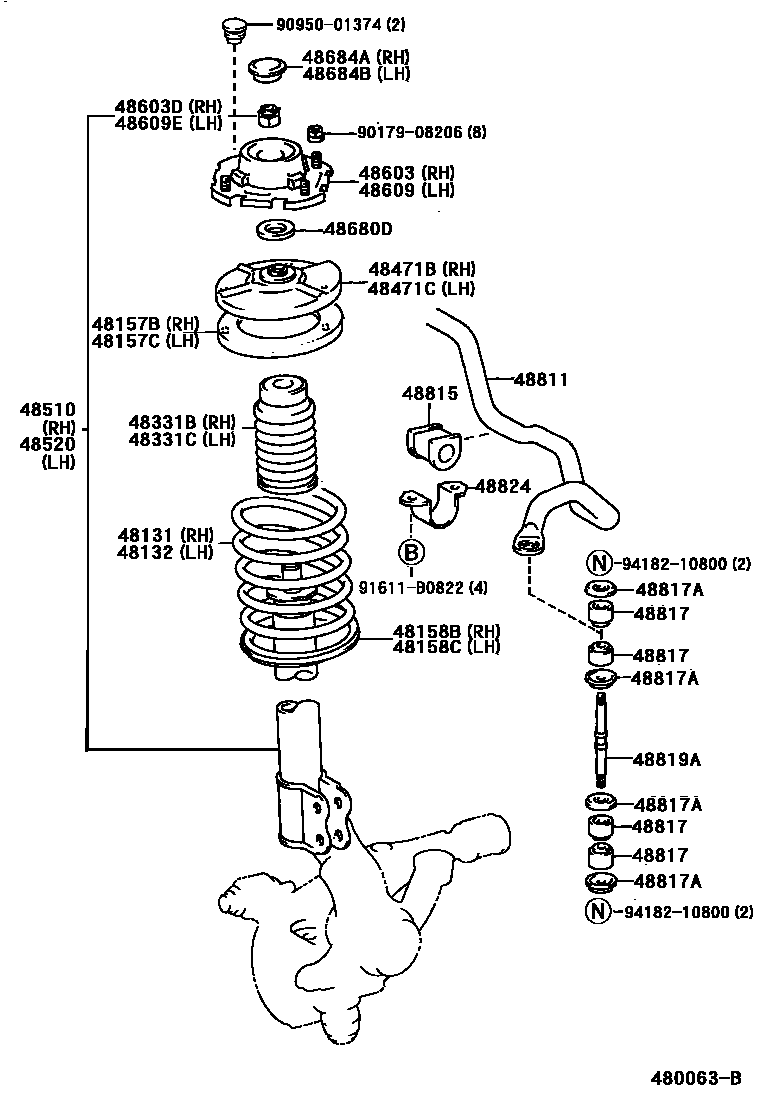

Toyota COROLLA Front Spring & Shock Absorber — Figure 4803
Toyota COROLLA EPC diagram 4803, Front Spring & Shock Absorber, with 1 images and 25 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 48131 | Right front coil spring | 48131-10621 · 48131-10880 · 48131-16760 · 48131-16761 · 48131-16830 · 48131-16850 · 48131-1C110 · 48131-1G010 · 48131-1G030 · 48131-1G051 · 48131-1G060 · 48131-1G151 · 48131-1G360 · 48131-1G570 · 48131-1G680 · 48131-1G690 · 48131-1G740 · 48131-1G750 · 48131-1G890 · 48131-1S070 |
| 48132 | Left front coil spring | 48131-10621 · 48131-10880 · 48131-16760 · 48131-16761 · 48131-16830 · 48131-16850 · 48131-1C110 · 48131-1G010 · 48131-1G030 · 48131-1G051 · 48131-1G060 · 48131-1G151 · 48131-1G360 · 48131-1G570 · 48131-1G680 · 48131-1G690 · 48131-1G740 · 48131-1G750 · 48131-1G890 · 48131-1S070 |
| 48157B | Front coil spring upper right vibration isolation pad | 48157-16040 · 48157-46010 |
| 48157C | Front coil spring upper left vibration isolation pad | 48157-16040 · 48157-46010 |
| 48158B | Front coil spring lower right vibration isolation pad | 48158-16030 |
| 48158C | Front coil spring lower left vibration isolation pad | 48158-16030 |
| 48331B | Right front spring buffer block | 48331-12140 · 48331-16060 · 48331-16070 |
| 48331C | Left front spring buffer block | 48331-12140 · 48331-16060 · 48331-16070 |
| 48471B | Front coil spring upper right seat | 48044-16030 · 48044-46010 |
| 48471C | Front coil spring upper left seat | 48044-16030 · 48044-46010 |
| 48510 | Right front shock absorber assembly | 48510-19355 · 48510-19365 · 48510-19375 · 48510-19385 · 48510-19605 · 48510-19615 · 48510-19625 · 48510-19635 · 48510-19795 · 48510-19805 · 48510-19815 · 48510-19825 |
| 48520 | Left front shock absorber assembly | 48520-19075 · 48520-19085 · 48520-19095 · 48520-19105 · 48520-19295 · 48520-19305 · 48520-19315 · 48520-19325 · 48520-19475 · 48520-19485 · 48520-19495 · 48520-19505 |
| 48603 | Right front suspension bearing sub-assembly | 48609-16220 · 48609-16230 · 48609-16240 · 48609-16280 · 48609-16290 |
| 48603D | Nut (for front mount to right front shock absorber) | 94182-11400 |
| 48609 | Left front suspension bearing sub-assembly | 48609-16220 · 48609-16230 · 48609-16240 · 48609-16280 · 48609-16290 |
| 48609E | Nut (for front mount to left front shock absorber) | 94182-11400 |
| 48680D | Dust seal (for front suspension mount) | 90303-22049 |
| 48684A | Right front suspension support dust cover | 48684-10010 |
| 48684B | Left front suspension support dust cover | 48684-10010 |
| 48811 | front stabilizer bar | 48811-16190 · 48811-16200 · 48811-16220 · 48811-16250 · 48811-16251 · 48811-16260 |
| 48815 | Front stabilizer bar bushing No. 1 | 48815-10080 · 48815-10090 · 48815-14130 · 48815-16170 |
| 48817 | Front stabilizer bar cushion | 48817-10020 |
| 48817A | Crash pad block No. 1 (for front stabilizer bar) | 90948-02032 |
| 48819A | front stabilizer bar bolt | 48819-10010 |
| 48824 | front stabilizer bar bracket | 48824-20040 |
