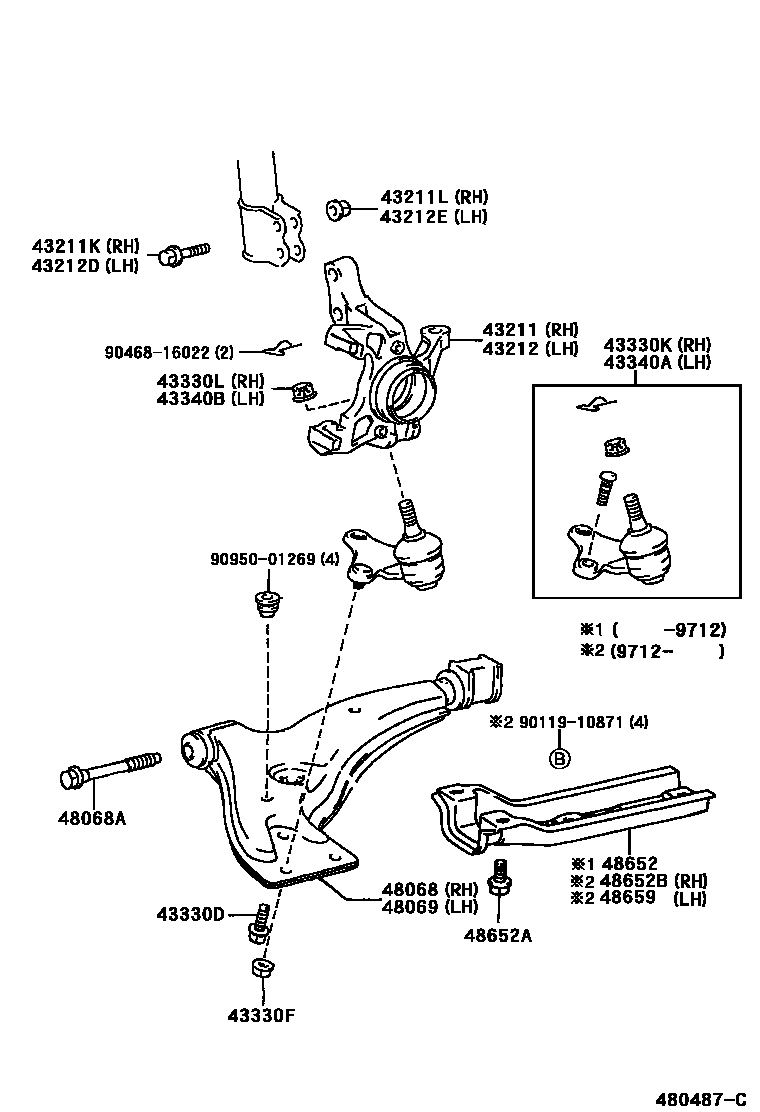

Toyota COROLLA 前桥控制臂和转向节 — Figure 4802
Toyota COROLLA EPC diagram 4802, 前桥控制臂和转向节, with 2 images and 19 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 43211 | Right steering knuckle | 43211-16040 · 43211-16050 · 43211-16051 · 43211-16060 · 43211-16070 · 43211-16071 · 43211-16100 · 43211-46010 · 43211-46020 |

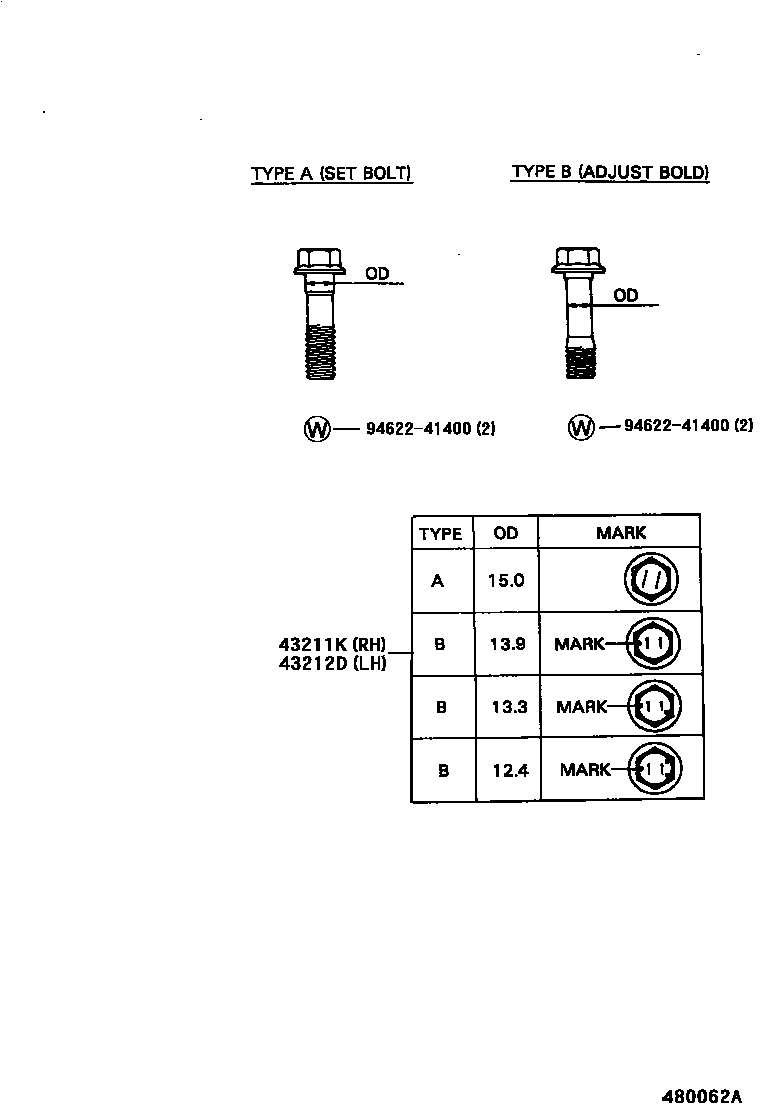

| 43211K | Bolt (for right steering knuckle) | 90105-15001 · 90105-15004 · 90105-15005 · 90105-15006 · 90105-15012 |
| 43211L | Nut (for right steering knuckle) | 90179-15001 · 90179-15006 · 90179-15007 |
| 43212 | left steering knuckle | 43212-16040 · 43212-16050 · 43212-16051 · 43212-16060 · 43212-16070 · 43212-16071 · 43212-16100 · 43212-46010 · 43212-46020 |
| 43212D | Bolt (for left steering knuckle) | 90105-15001 · 90105-15004 · 90105-15005 · 90105-15006 · 90105-15012 |
| 43212E | Nut (for left steering knuckle) | 90179-15001 · 90179-15006 · 90179-15007 |
| 43330D | Bolt (for front lower ball joint) | 90119-10785 |
| 43330F | Nut (used to secure the front lower ball joint) | 90179-10211 |
| 43330K | Right front lower ball joint assembly | 43330-19085 |
| 43330L | Castle nut (for right front lower ball joint) | 90171-12007 |
| 43340A | Left front lower ball joint assembly | 43340-19025 |
| 43340B | Castle nut (for left front lower ball joint) | 90171-12007 |
| 48068 | Right front suspension No. 1 lower arm sub-assembly | 48068-16100 · 48068-16120 · 48068-46011 |
| 48068A | Bolt (for front suspension lower arm) | 90119-12099 |
| 48069 | Left front suspension No. 1 lower arm sub-assembly | 48069-16100 · 48069-16120 · 48069-46011 |
| 48652 | Front lower arm brace | 48652-10020 |
| 48652A | Bolt (for front lower arm bracket) | 90901-19018 |
| 48652B | Right front lower arm brace | 48652-46010 |
| 48659 | Left front lower arm brace | 48659-46010 |
