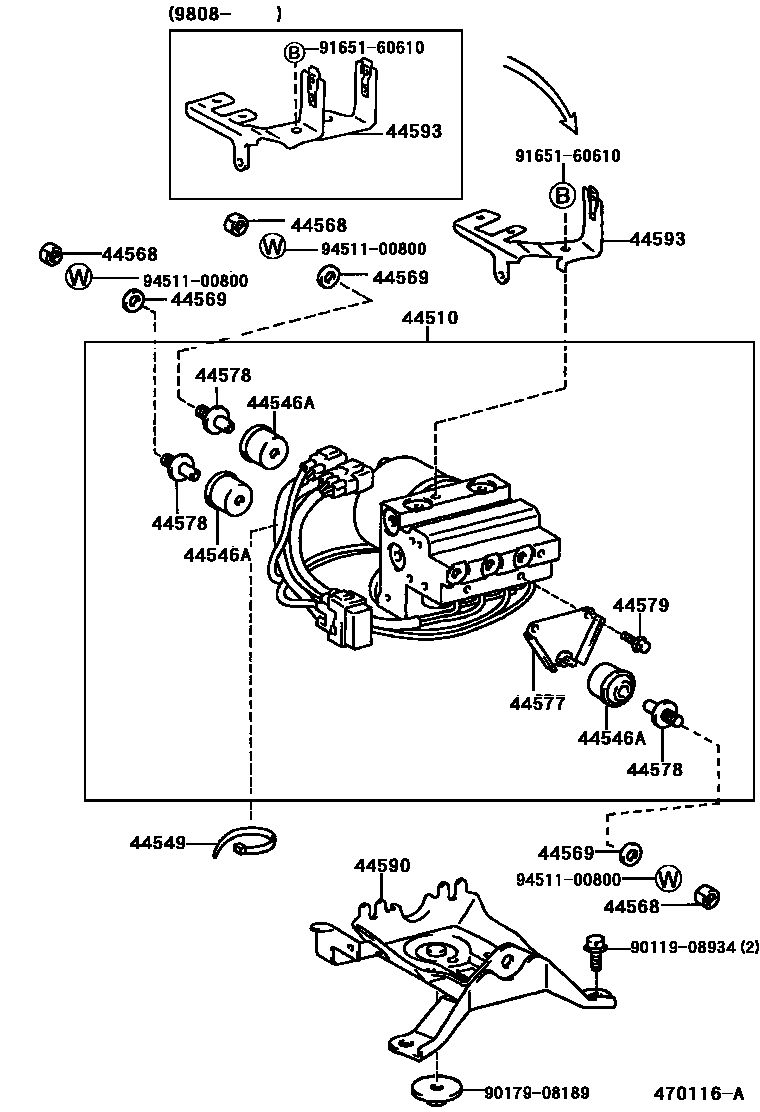

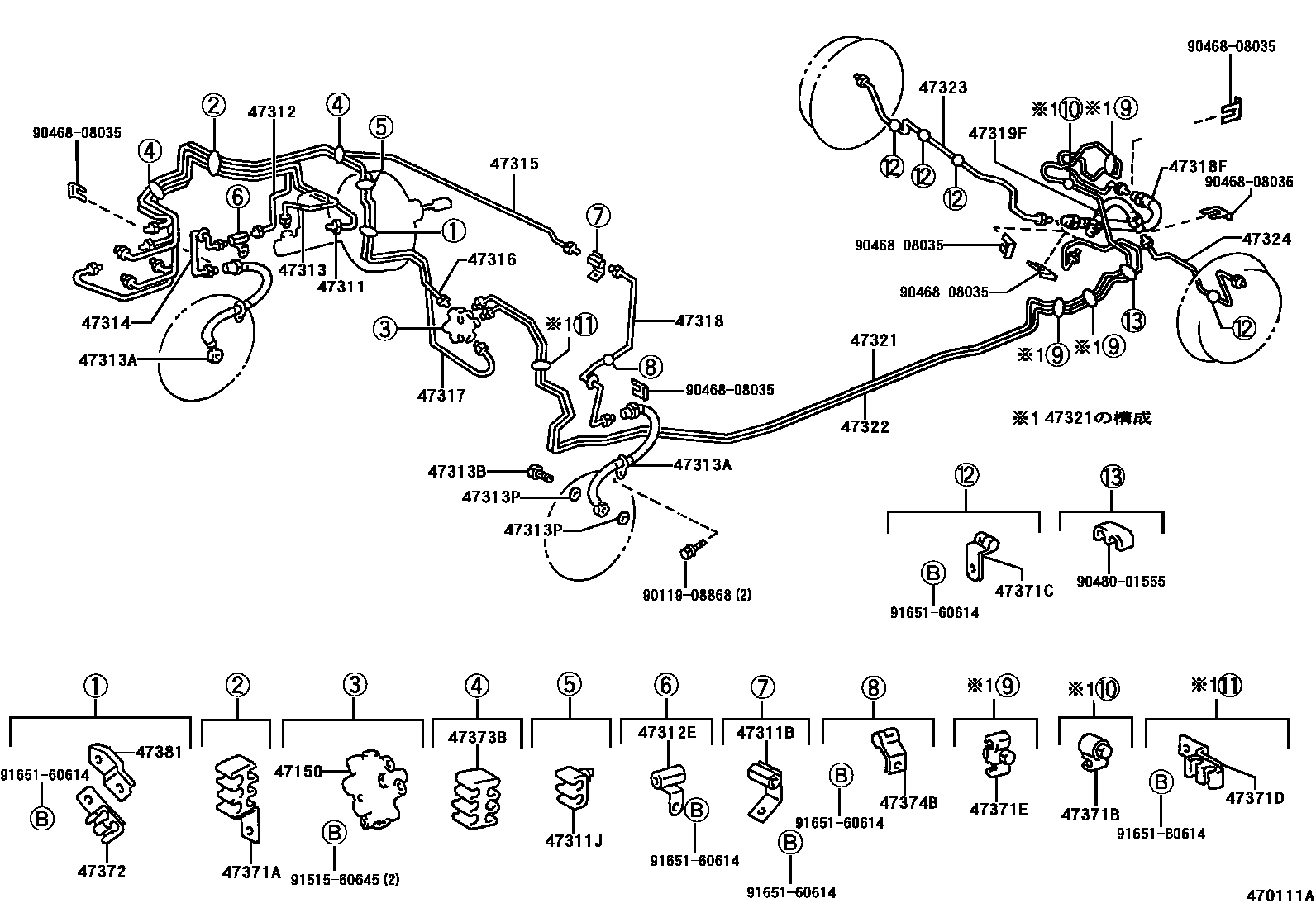

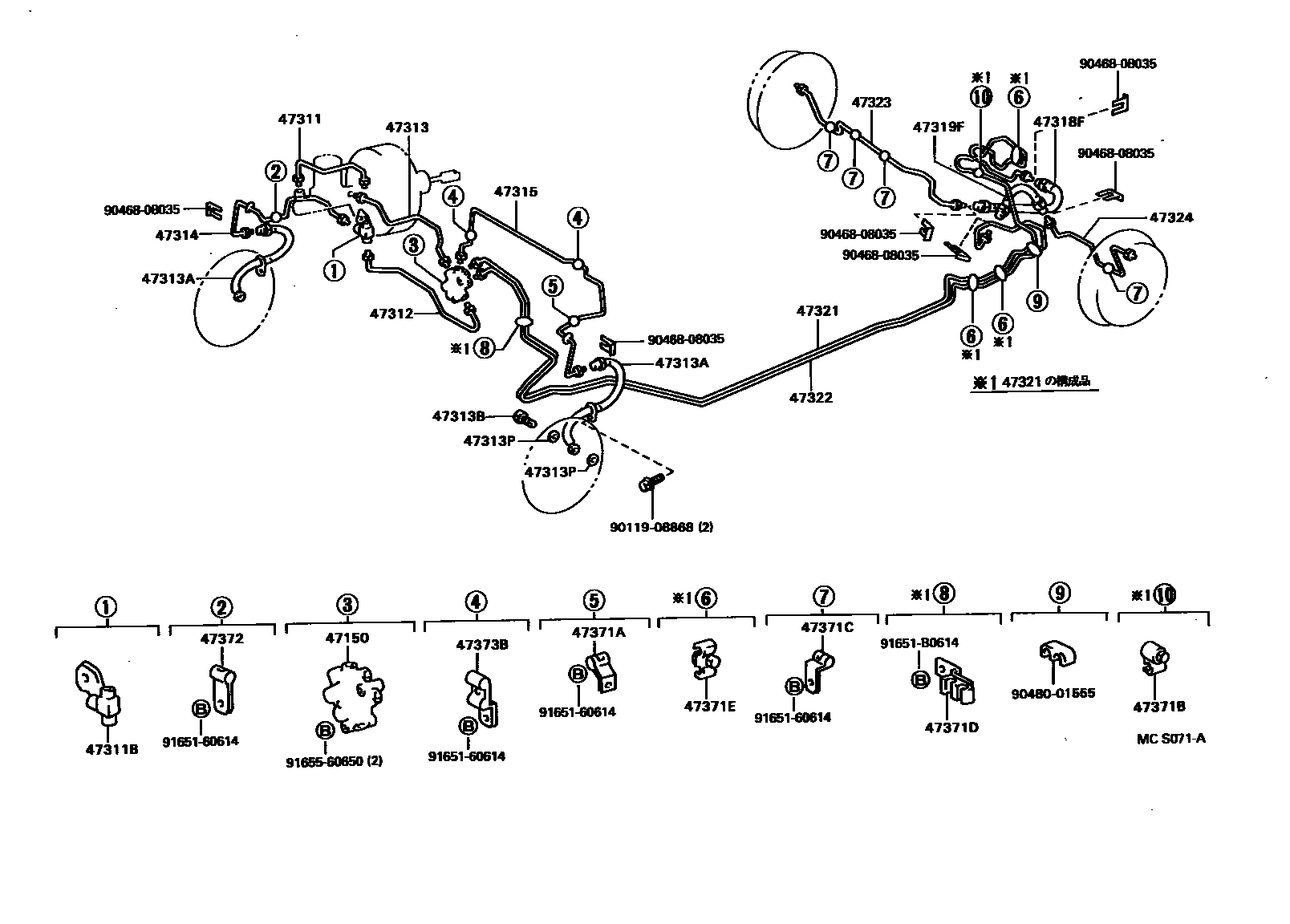

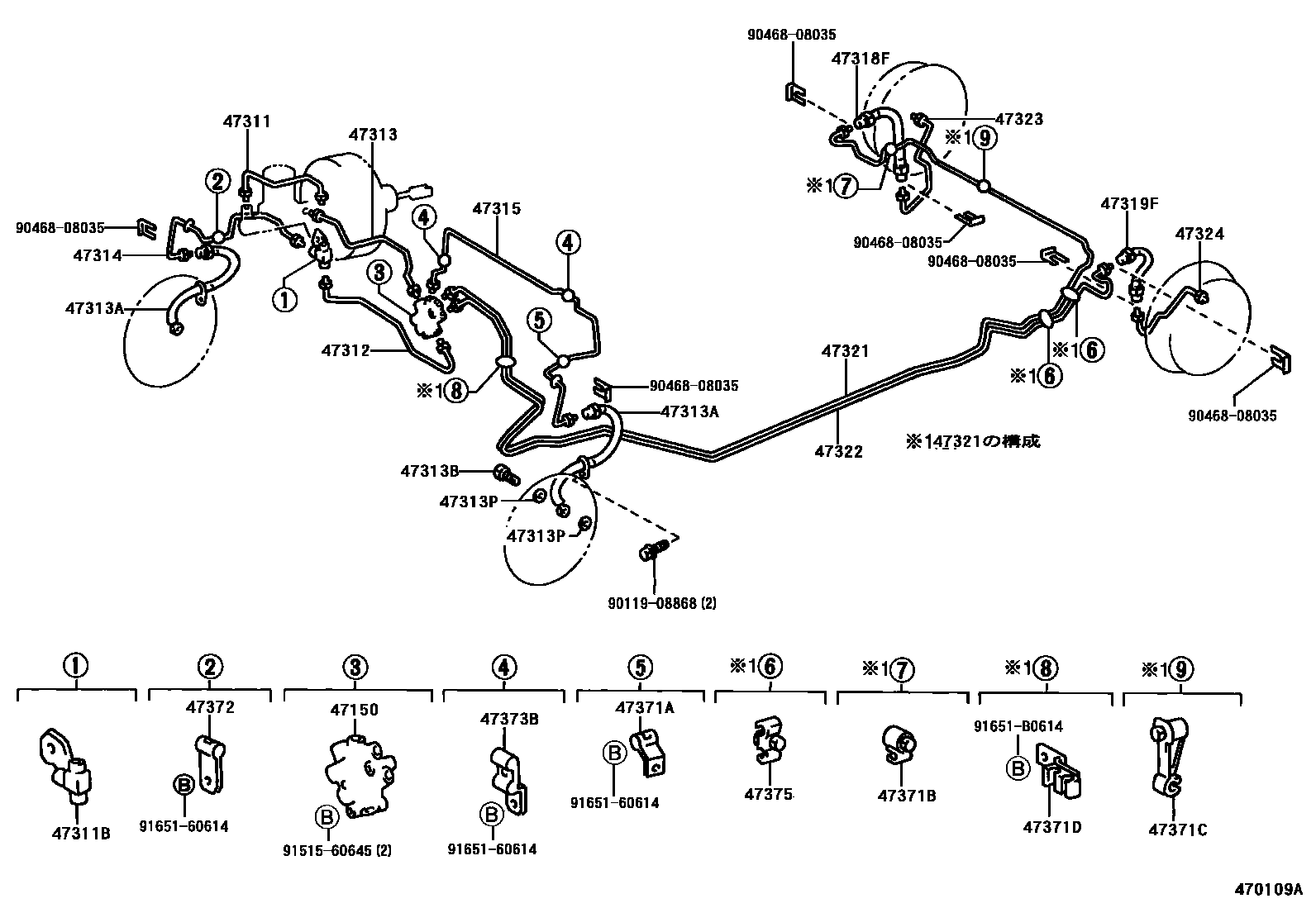

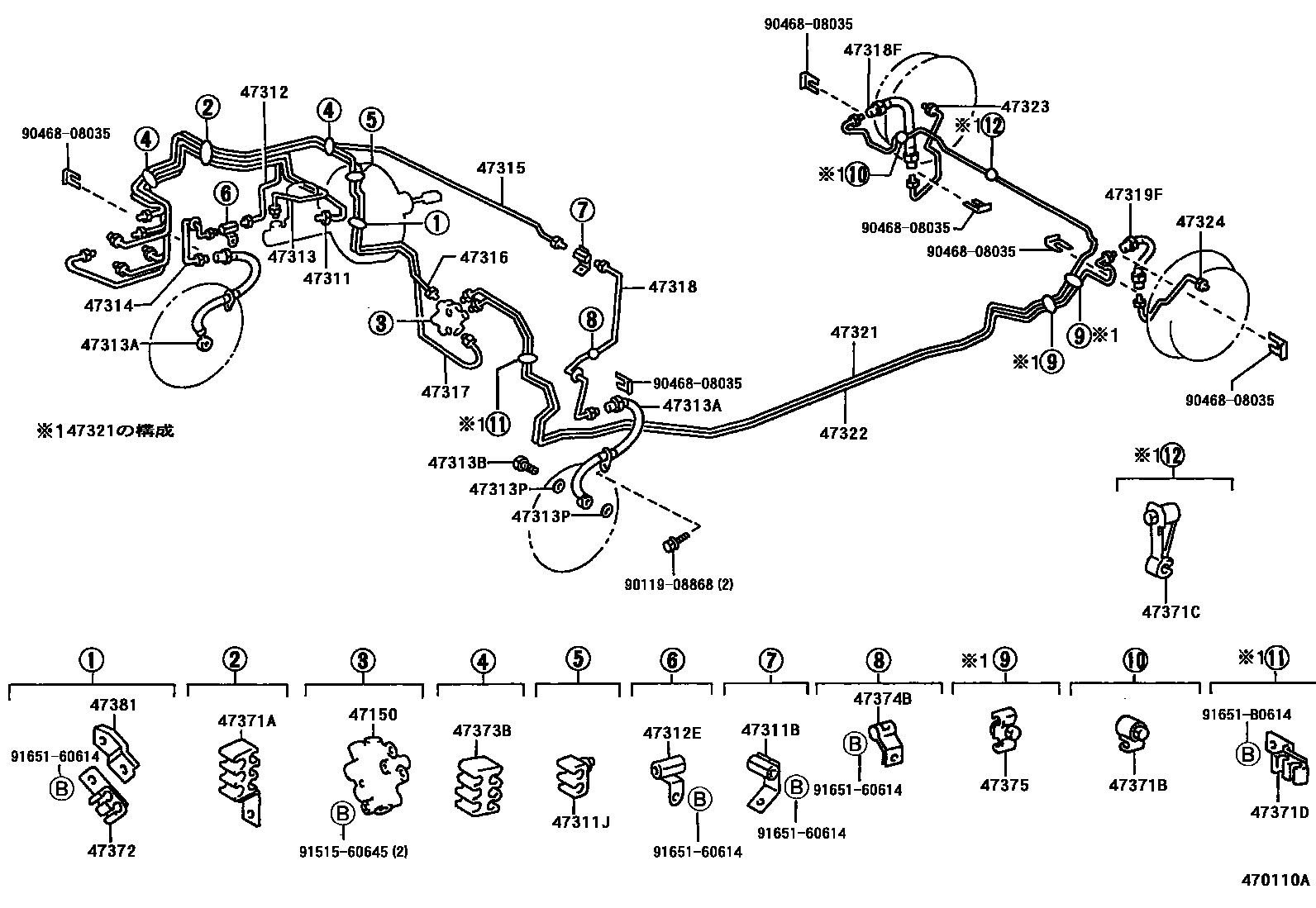

Toyota COROLLA 制动配管和卡箍 — Figure 4708
Toyota COROLLA EPC diagram 4708, 制动配管和卡箍, with 5 images and 41 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 44510 | brake actuator assembly | 44510-10060 · 44510-16070 |
| 44546A | Brake actuator bolt cushion | 44546-16080 |
| 44549 | brake actuator band | 44549-16010 |
| 44568 | brake actuator nut | 44568-16010 |
| 44569 | brake actuator washer | 44569-16010 |
| 44577 | Brake actuator mounting bracket | 44577-16080 |
| 44578 | Brake actuator cushion bolt | 44578-16080 |
| 44579 | Brake actuator bracket bolt | 44579-16080 |
| 44590 | Brake actuator bracket assembly | 44590-16010 |
| 44593 | No. 3 brake actuator bracket | 44590-10010 · 44593-16020 |
| 47150 | Proportional valve assembly | 47150-12050 · 47150-12060 · 47150-12270 · 47150-20240 · 47150-20250 |
| 47311 | No. 1 front brake pipe | 47311-10180 · 47311-16140 · 47311-16170 · 47311-16230 |
| 47311B | No. 1 pipe joint (for front brake pipe) | 90412-10168 · 90413-10259 · 90904-12060 |
| 47311J | Seal No. 1 (for front brake pipe) | 90949-01972 |
| 47312 | No. 2 front brake pipe | 47312-16140 · 47312-16150 · 47312-16200 |
| 47312E | No. 2 pipe joint (for front brake pipe) | 90412-10169 |
| 47313 | No. 3 front brake pipe | 47313-16140 · 47313-16170 · 47313-16220 |
| 47313A | No. 1 front flexible hose | 90947-02813 · 90947-02814 |
| 47313B | Connector bolt (for front flex hose) | 90401-10015 |
| 47313P | Gasket (for front flex hose) | 90430-10074 |
| 47314 | No. 4 front brake pipe | 47314-10230 · 47314-16090 |
| 47315 | No. 5 front brake pipe | 47315-16120 · 47315-16140 · 47315-16190 |
| 47316 | No. 6 front brake pipe | 47316-16040 · 47316-16090 |
| 47317 | No. 7 front brake pipe | 47317-16040 · 47317-16090 |
| 47318 | No. 8 front brake pipe | 47318-16030 |
| 47318F | Right rear flexible hose | 90947-02637 · 90947-02796 |
| 47319F | Left rear flexible hose | 90947-02637 · 90947-02797 |
| 47321 | No. 1 rear brake pipe | 47321-16130 · 47321-16140 |
| 47322 | No. 2 rear brake pipe | 47322-16120 · 47322-16130 |
| 47323 | No. 3 rear brake pipe | 47323-16160 · 47323-16170 · 47323-16190 |
| 47324 | No. 4 rear brake pipe | 47324-16150 · 47324-16160 · 47324-16180 |
| 47371A | No. 1 brake pipe clamp | 47371-16060 · 90461-06221 |
| 47371B | No. 6 brake pipe clamp | 47371-10100 |
| 47371C | No. 7 brake pipe clamp | 47371-10110 · 90461-10763 |
| 47371D | No. 8 brake pipe clamp | 47371-30010 |
| 47371E | No. 9 brake pipe clamp | 47371-10050 |
| 47372 | No. 2 brake pipe clamp | 47371-10150 · 90461-10738 |
| 47373B | No. 3 brake pipe clamp | 90949-01207 · 90949-01969 |
| 47374B | No. 4 brake pipe clamp | 90461-06221 |
| 47375 | No. 5 brake pipe clamp | 47371-10080 |
| 47381 | No. 1 brake pipe clamp bracket | 47381-10040 |
