Toyota COROLLA 制动助力器和真空管 — Figure 4703

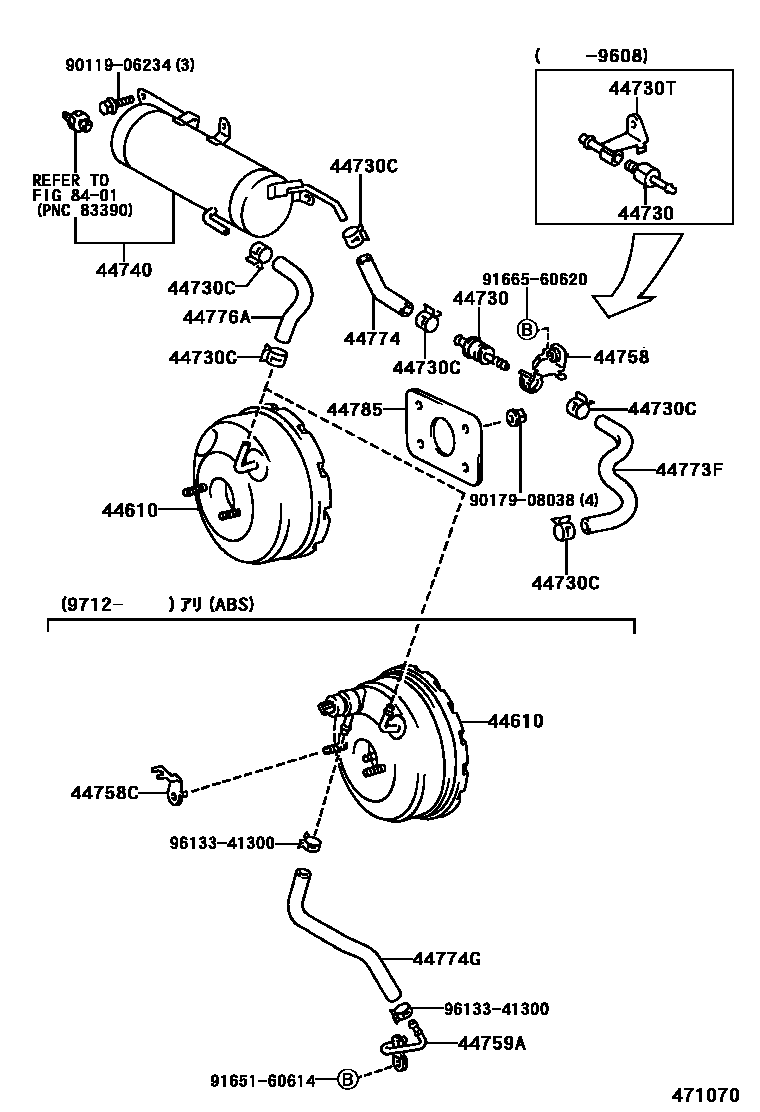

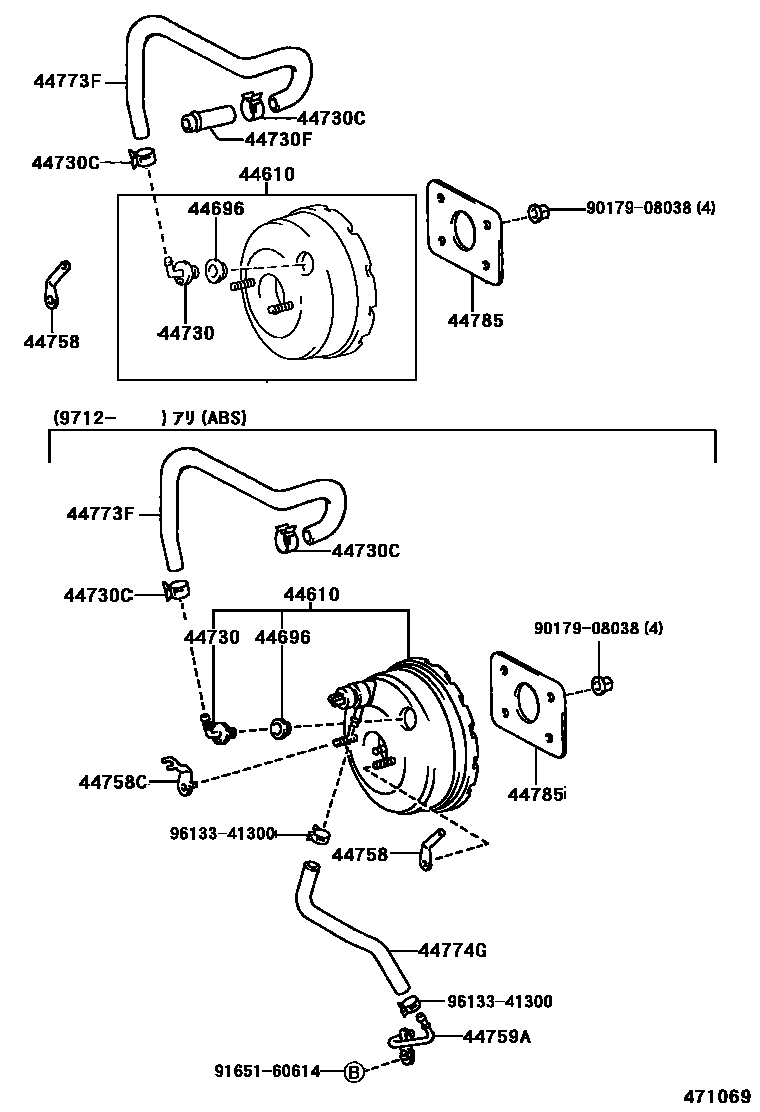

Toyota COROLLA EPC diagram 4703, 制动助力器和真空管, with 2 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 44610 | brake booster assembly | 44610-10370 · 44610-16550 · 44610-16560 · 44610-16640 · 44610-16650 |
| 44696 | One-way valve seal | 90480-24439 |
| 44730 | Vacuum check valve assembly (for brake) | 44730-20070 · 44730-42010 · 44730-60050 |
| 44730C | Clip (for vacuum hose) | 90467-16002 |
| 44730F | Vacuum hose connector (for manifold side) | 90406-09006 |
| 44730T | Connector (for vacuum check valve) | 90404-52032 |
| 44740 | Vacuum liquid tank assembly | 44740-16030 |
| 44758 | Vacuum check valve bracket | 44758-10120 · 44758-16090 |
| 44758C | Solenoid valve cover bracket | 44758-16110 |
| 44759A | Brake booster air hose connector | 44759-16020 |
| 44773F | Hoses (connector to check valve) | 44773-10300 · 44773-10340 · 44773-16110 · 44773-16150 · 44773-16200 |
| 44774 | Hoses (joints to connector tubes) | 44774-16030 |
| 44774G | Hoses (connector to solenoid valve) | 44774-16040 |
| 44776A | Hoses (vacuum reservoir to brake booster) | 44776-16020 |
| 44785 | brake booster pad | 44785-10020 · 44785-16020 |
