Toyota COROLLA Parking Brake & Cable — Figure 4601

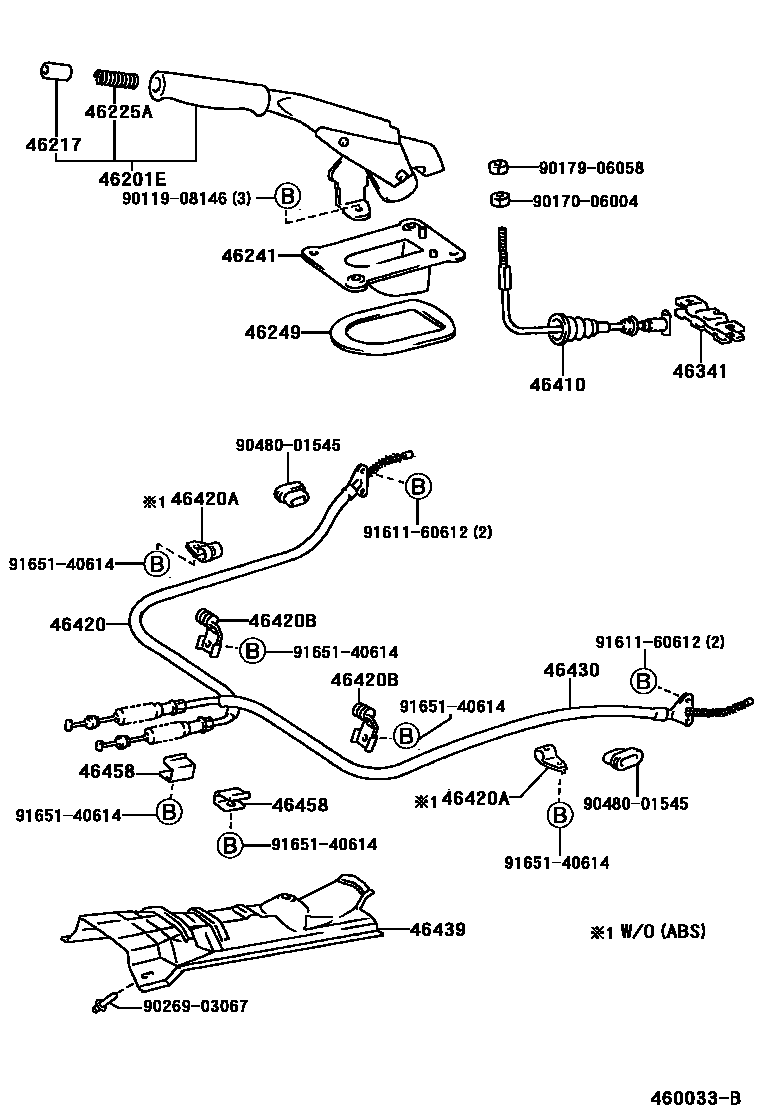

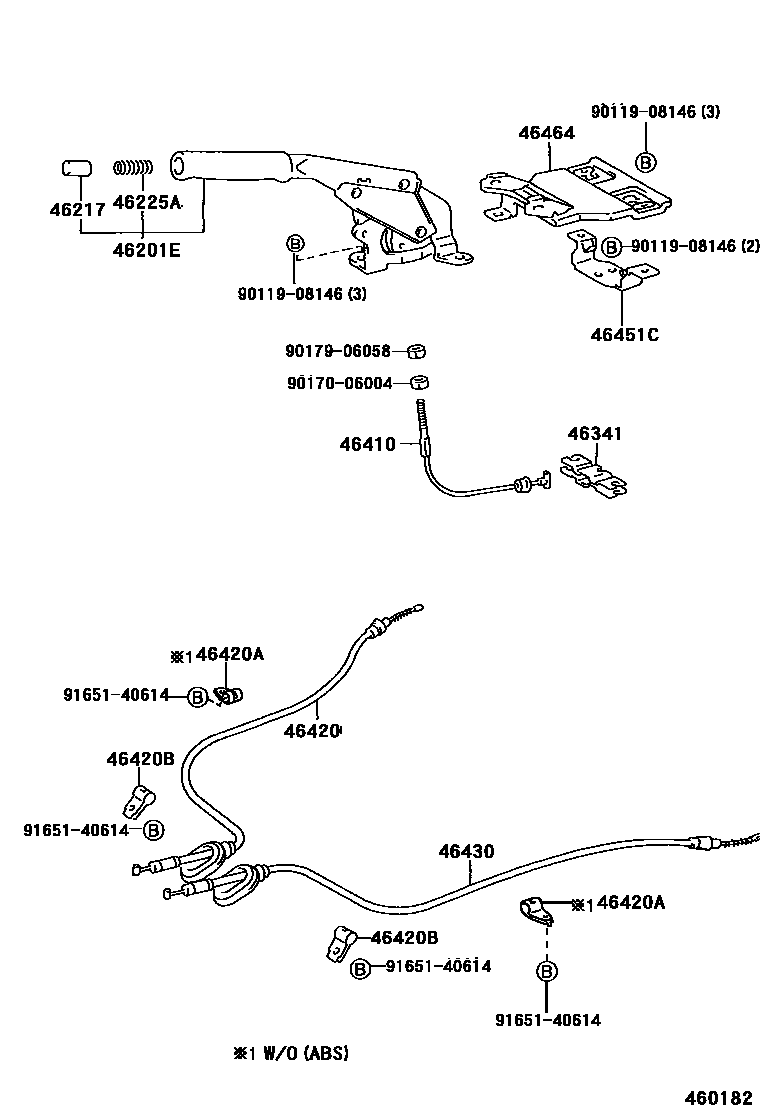

Toyota COROLLA EPC diagram 4601, Parking Brake & Cable, with 2 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 46225A | Compression spring (for parking brake pawl lever) | 90501-10069 |
| 46241 | Parking brake lever dust cover | 46241-16040 |
| 46249 | Parking brake hole cover | 46249-32010 |
| 46341 | Parking brake balancer | 46341-12020 · 46341-33010 |
| 46410 | Parking brake cable assembly No. 1 | 46410-16040 · 46410-42010 |
| 46420 | Parking brake No. 2 cable assembly | 46420-16160 · 46420-16190 |
| 46420A | Clamp No. 1 (for parking brake cable) | 90461-10641 |
| 46420B | Clamp No. 2 (for parking brake cable) | 90949-01585 |
| 46430 | Parking brake No. 3 cable assembly | 46430-16160 · 46430-16190 |
| 46439 | Parking brake cable insulation pad | 46439-16021 |
| 46451C | Parking brake cable bracket No. 1 | 46451-10020 |
| 46458 | Cable fixings | 46458-50010 |
| 46464 | Pull cable clip support plate | 46464-16030 |
