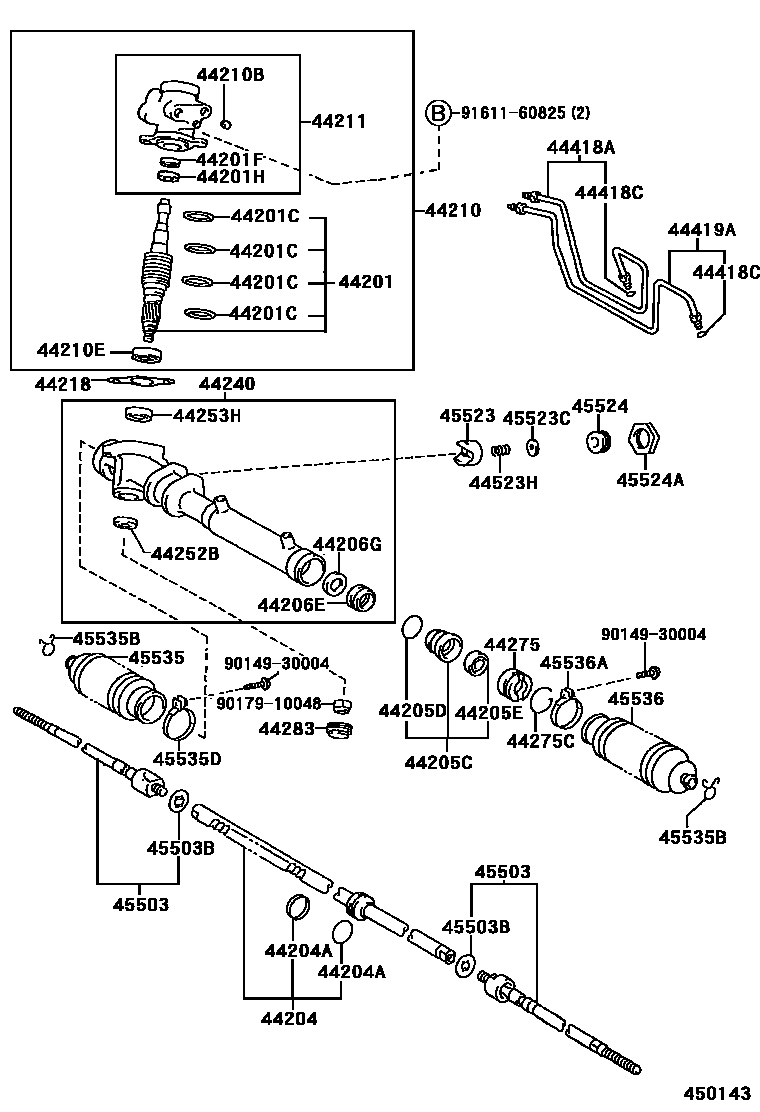

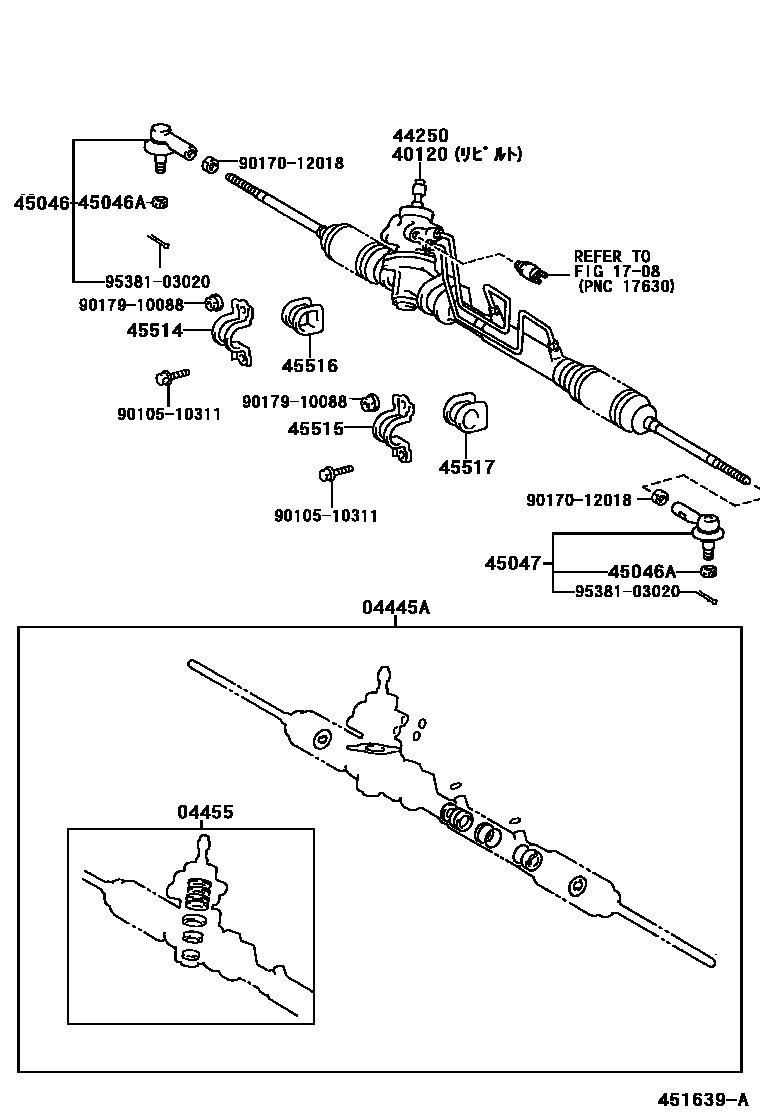

Toyota COROLLA 前转向齿轮和连杆 — Figure 4505
Toyota COROLLA EPC diagram 4505, 前转向齿轮和连杆, with 2 images and 48 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04445A | Power steering gear gasket assembly (for rack and pinion) | 04445-16090 · 04445-16110 |
| 04455 | Power steering control valve overhaul gasket assembly | 04455-10030 |
| 40120 | Refurbished power steering assembly | 40120-10160 · 40120-10230 · 40120-16232 · 40120-16271 · 40120-16360 · 40120-46011 |
| 44201 | Power steering control valve sub-assembly | 44201-16140 · 44201-16230 |
| 44201C | Ring (for power steering control valve) | 90560-33005 |
| 44201F | Oil seal (for power steering control valve) | 90311-19010 |
| 44201H | Bearing (for upper power steering control valve) | 90363-19007 · 90365-19001 |
| 44204 | Power steering rack sub-assembly | 44204-10040 · 44204-16060 · 44204-16080 |
| 44204A | Ring (for steering rack piston) | 90301-29005 · 90562-34002 |
| 44205C | Power steering rack bushing sub-assembly | 44205-10020 |
| 44205D | O-ring (for power steering rack bushing) | 90301-33004 |
| 44205E | Oil seal (for power steering rack bushing) | 90311-22014 |
| 44206E | No. 1 oil seal (for power steering cylinder barrel) | 90311-22015 · 90311-22017 |
| 44206G | No. 1 spacer (for power steering cylinder barrel) | 44263-16010 |
| 44210 | Power steering control valve assembly | 44210-16120 · 44210-16130 · 44210-16171 · 44210-16190 |
| 44210B | Connector seat (for power steering control valve) | 90410-05006 |
| 44210E | Oil seal (for power steering control valve) | 90311-26003 |
| 44211 | control valve housing | 44022-10010 · 44022-10020 · 44022-10030 · 44022-10040 |
| 44218 | valve housing gasket | 44218-12020 |
| 44240 | Power steering rack housing assembly | 44240-10050 · 44240-16070 |
| 44250 | Power steering gear assembly (for rack and pinion) | 44250-10160 · 44250-10230 · 44250-16210 · 44250-16211 · 44250-16220 · 44250-16230 · 44250-16231 · 44250-16232 · 44250-16270 · 44250-16271 · 44250-16360 · 44250-46011 |
| 44252B | Bearings (for power steering pinion) | 90363-12009 |
| 44253H | No. 1 bearing (for power steering rack housing) | 90364-22006 |
| 44275 | Cylinder end stop | 44275-10020 · 44275-16020 |
| 44275C | Coil (for cylinder end stop) | 90580-18001 |
| 44283 | Rack housing cover | 44283-16010 |
| 44418A | Right steering pressure oil pipe | 44418-10020 |
| 44418C | O-ring (for steering pressure oil pipe) | 90301-03001 |
| 44419A | Left steering pressure oil pipe | 44419-10020 |
| 44523H | Spring (for power steering rack guide) | 90501-23075 · 90501-32031 |
| 45046 | Right tie rod end sub-assembly | 45046-19206 · 45046-19216 |
| 45046A | Castle nuts (for tie rod ends) | 90171-12028 |
| 45047 | Left tie rod end sub-assembly | 45046-19206 · 45046-19216 |
| 45503 | Steering rack end sub-assembly | 45503-19185 |
| 45503B | Jaw washer (for steering rack end) | 90214-12002 |
| 45514 | No. 1 steering rack housing bracket | 45514-16060 · 45514-16061 |
| 45515 | No. 2 steering rack housing bracket | 45514-16060 · 45514-16061 |
| 45516 | No. 1 steering rack housing seal | 45516-16060 |
| 45517 | No. 2 steering rack housing seal | 45517-10070 |
| 45523 | Rack guide block (for steering gear) | 45504-16050 · 45504-16060 |
| 45523C | Spacer (for rack guide block) | 45542-12010 |
| 45524 | Steering rack guide block spring cover | 45524-16050 · 45524-17020 |
| 45524A | Nut (for steering rack guide spring cover) | 90179-30002 |
| 45535 | No. 1 steering rack dust cover | 45535-10060 · 45535-16030 |
| 45535B | Clamp (for steering rack dust boot) | 90467-17021 |
| 45535D | Clamp (for No. 1 steering rack dust boot) | 90460-49002 · 90461-08718 |
| 45536 | No. 2 steering rack dust cover | 45535-10060 · 45535-16030 |
| 45536A | Clamp (for No. 2 steering rack dust boot) | 90460-49002 · 90461-08718 |
