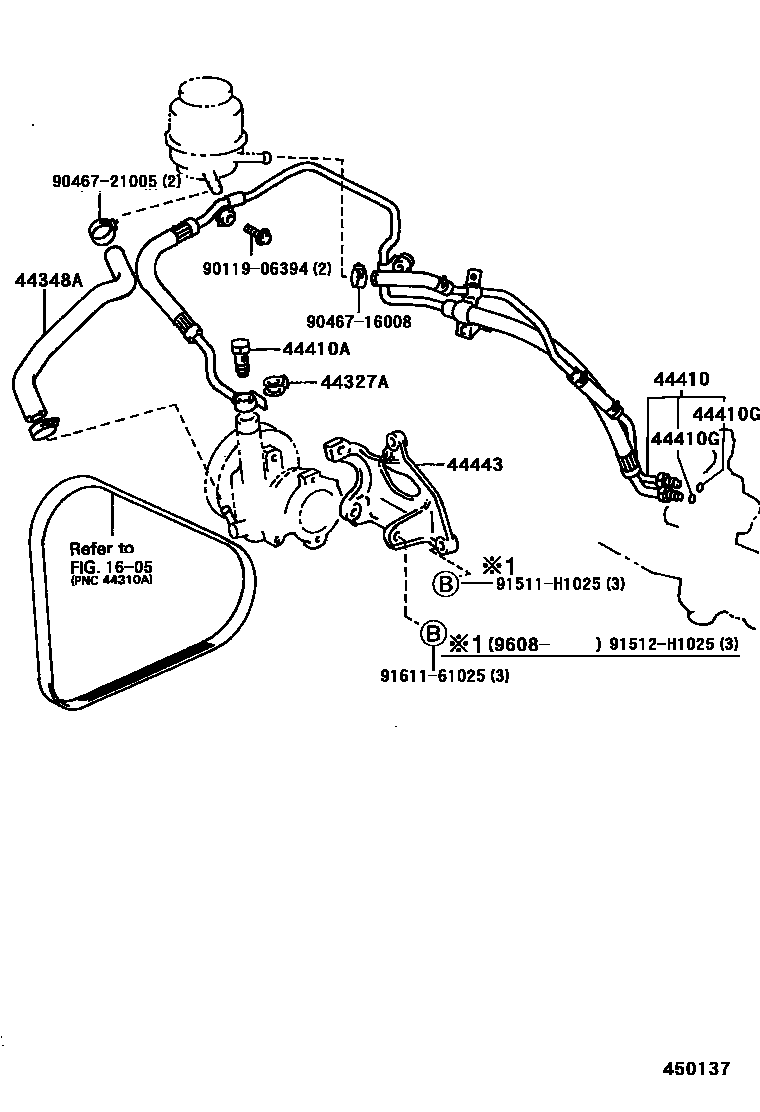

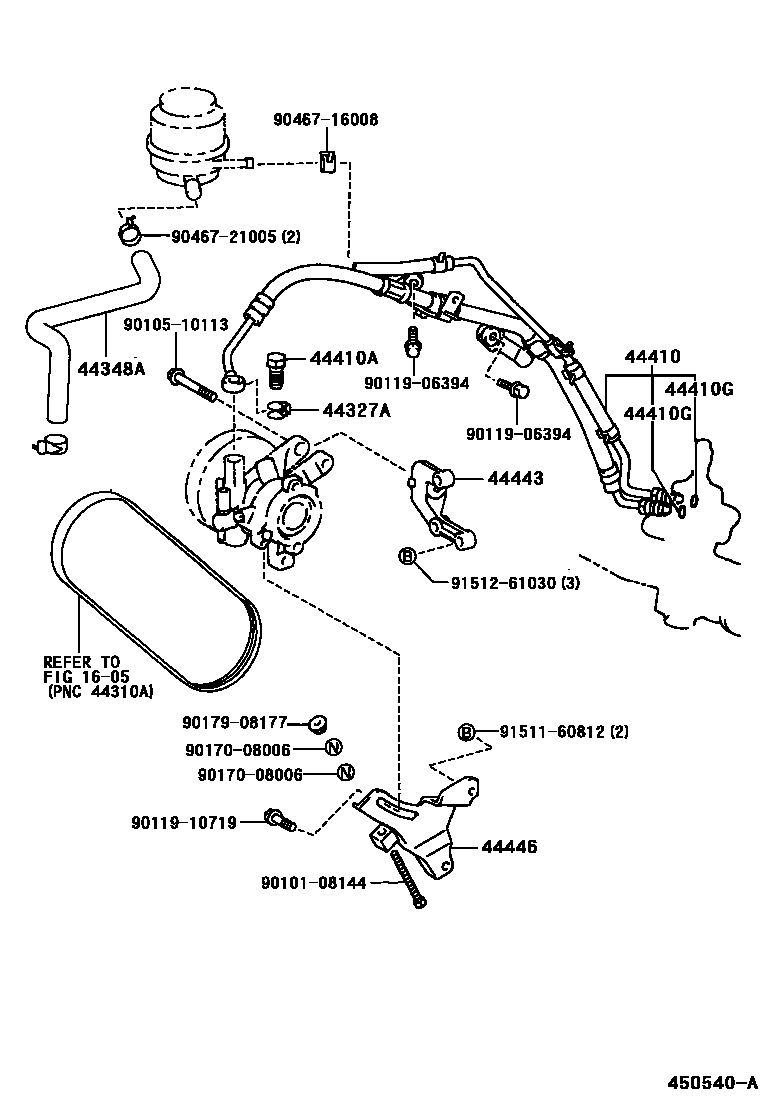

Toyota COROLLA 动力转向配管 — Figure 4503
Toyota COROLLA EPC diagram 4503, 动力转向配管, with 2 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 44327A | No. 1 pressure hole gasket | 44327-12010 |
| 44348A | No. 1 hose (tank to pump) | 44348-10051 · 44348-10071 · 44348-46010 |
| 44410 | Pressure supply pipe assembly | 44410-10111 · 44410-10151 · 44410-16250 · 44410-46010 |
| 44410A | Connector bolt (for pressure supply pipe) | 90401-16012 |
| 44410G | O-ring (for pressure supply pipe) | 90301-07009 |
| 44443 | pump bracket | 44443-10030 · 44443-16030 |
| 44446 | Adjust the stand | 44446-10050 · 44446-16051 |
