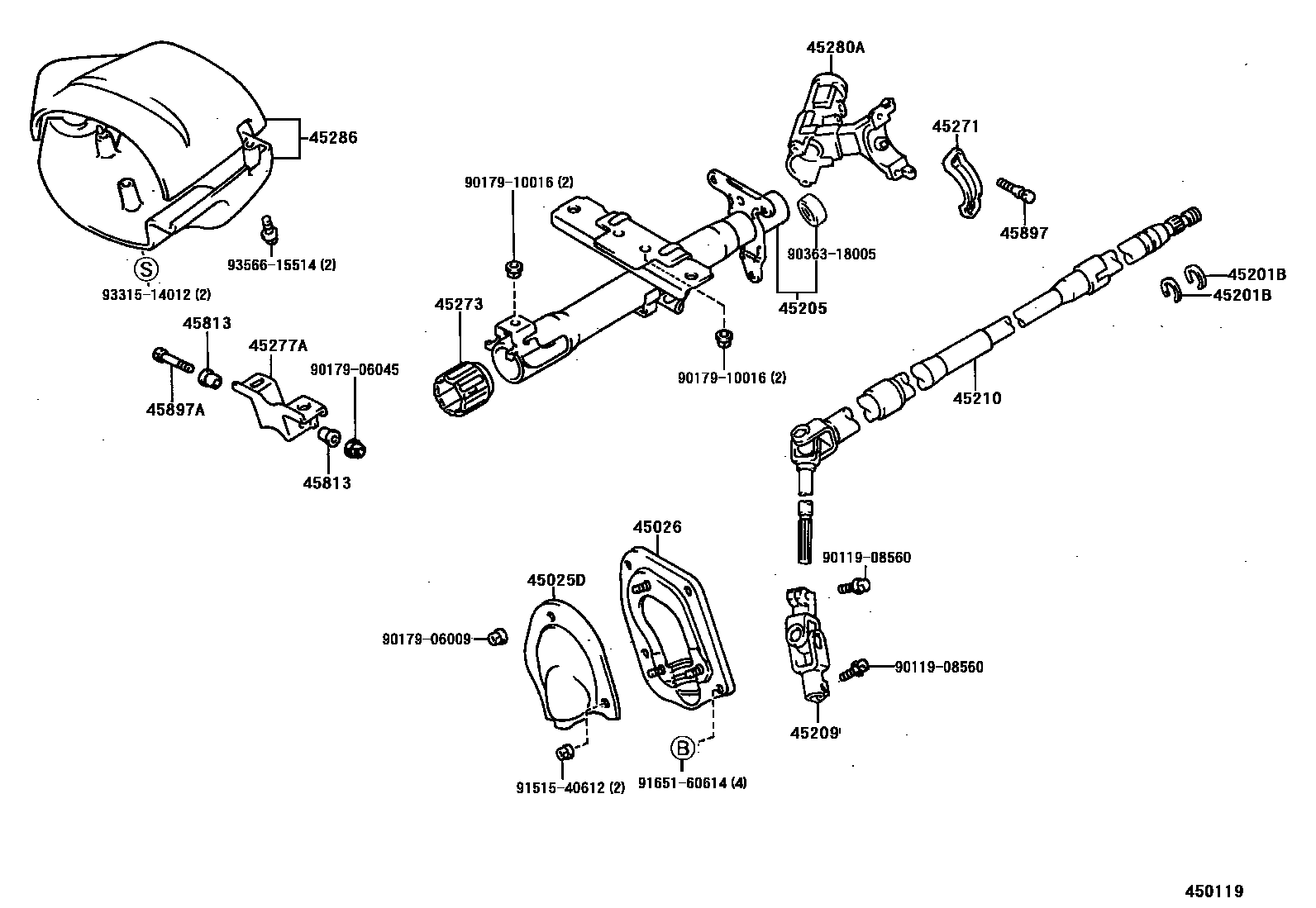

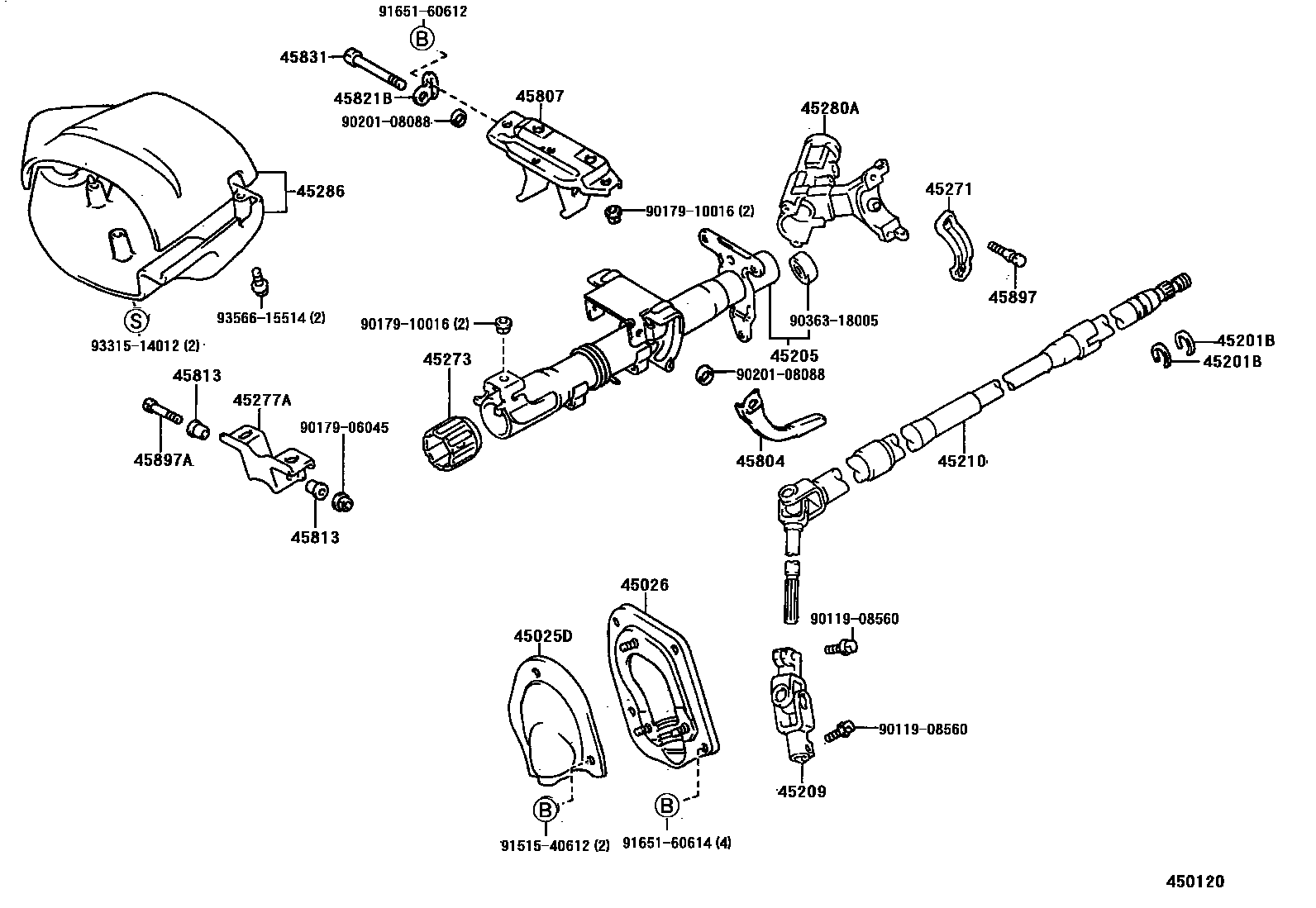

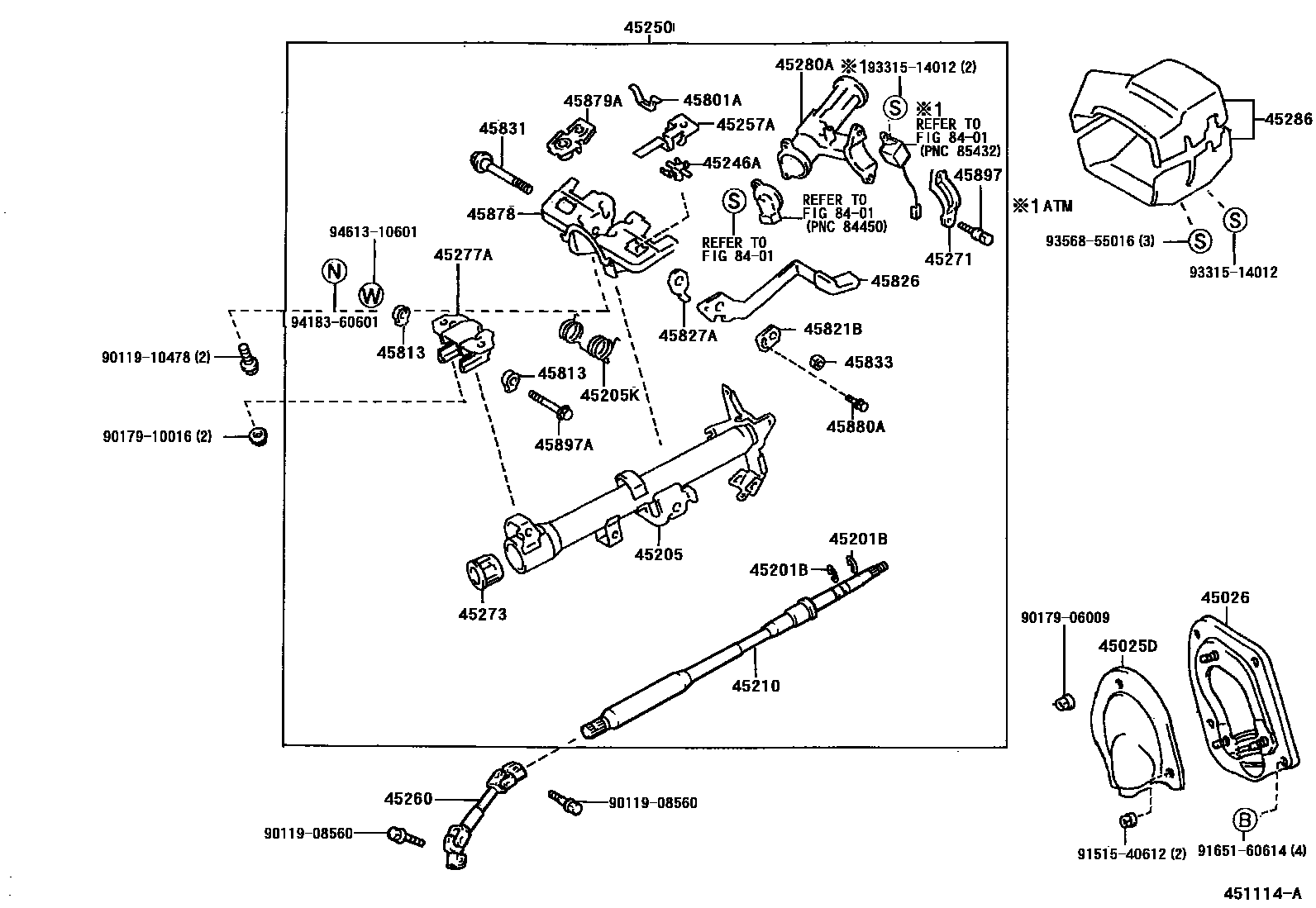

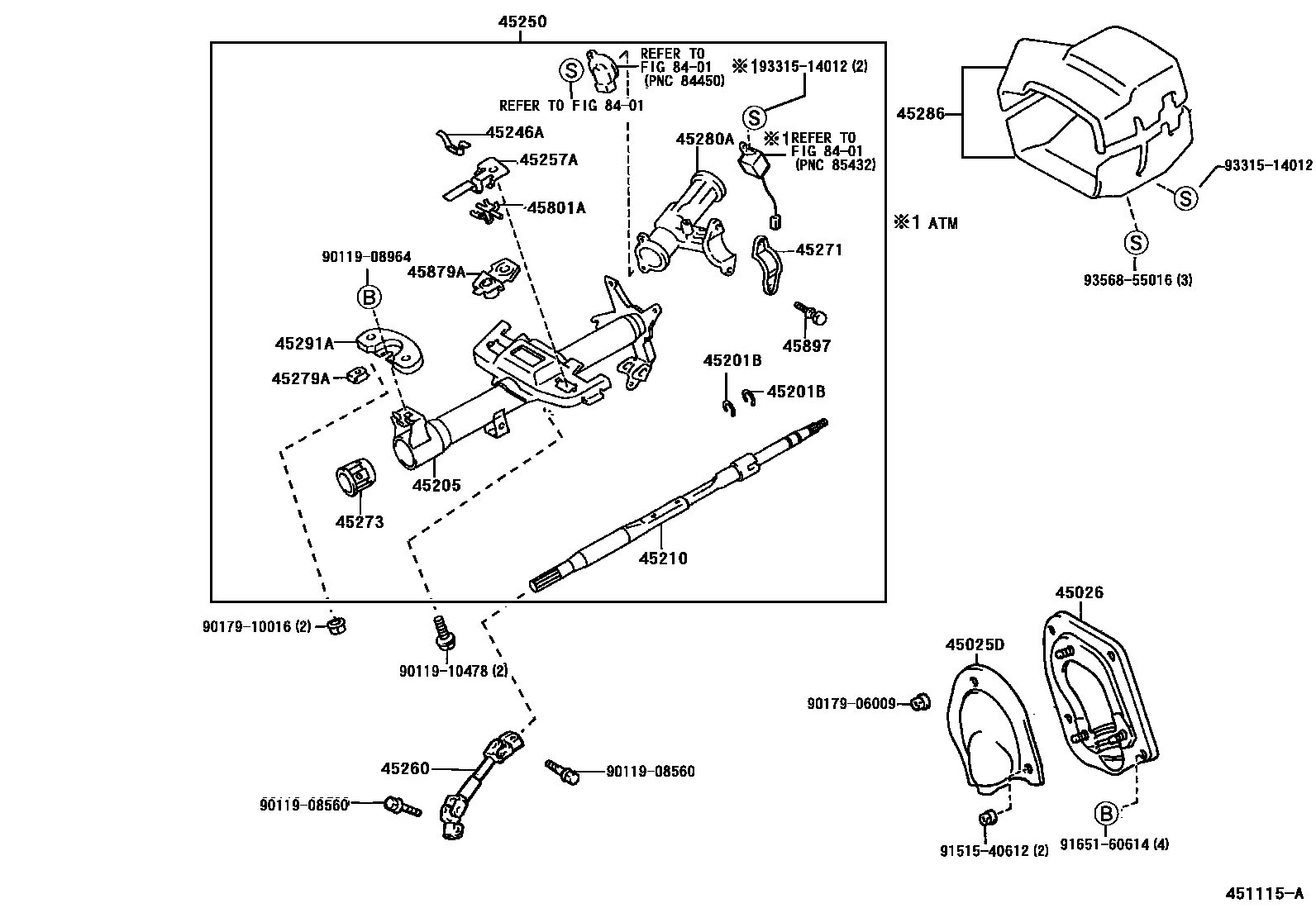

Toyota COROLLA Steering Column & Shaft — Figure 4501
Toyota COROLLA EPC diagram 4501, Steering Column & Shaft, with 4 images and 31 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 45025D | No. 1 steering column hole cover sub-assembly | 45025-16130 |
| 45026 | No. 2 steering column hole cover sub-assembly | 45026-16060 |
| 45201B | Shaft snap ring (for steering spindle) | 90520-17042 · 90520-17269 |
| 45205 | Steering column tube sub-assembly | 45205-10210 · 45205-12350 · 45205-12360 · 45205-16080 · 45205-16090 · 45205-16100 |
| 45205K | Spring (for steering column tube) | 90949-03027 |
| 45209 | Steering slip fork sub-assembly | 45209-16051 · 45209-18010 |
| 45210 | Steering spindle assembly | 45210-10150 · 45210-42010 |
| 45246A | Steering energy absorbing sheet guide bush | 45246-12110 |
| 45250 | Steering column assembly | 45250-16550 · 45250-16560 · 45250-16570 · 45250-16580 |
| 45257A | Steering column energy absorbing sheet | 45257-12070 |
| 45260 | No. 2 steering intermediate shaft assembly | 45260-16070 |
| 45271 | Clamp on steering column | 45271-16020 |
| 45273 | Steering spindle bushing | 45273-12020 · 45273-16020 |
| 45277A | Tilt-adjustable steering bracket | 45277-12010 · 45277-16030 |
| 45279A | Steering column tube lower connecting piece | 45279-33030 |
| 45280A | Steering column upper bracket assembly | 45280-12341 · 45280-16090 · 45280-28230 |
| 45291A | Steering column tube bracket | 45291-33020 |
| 45801A | Steering energy absorption pin sub-assembly | 45875-12010 |
| 45804 | Steering tilt adjustment lever sub-assembly | 45804-16040 |
| 45807 | Steering column upper bracket sub-assembly | 45807-16050 |
| 45813 | No. 1 tilt-adjustable steering bracket collar | 45813-12010 · 45813-16030 |
| 45821B | No. 1 tilt-adjustable steering bracket reinforcement | 45821-12010 · 45821-16010 |
| 45826 | Steering tilt adjustment lever | 45826-16040 |
| 45827A | Steering tilt adjustment lever | 45827-12030 |
| 45831 | No. 1 tilt adjustment lever locking bolt | 45831-12020 · 45831-16020 |
| 45833 | Tilt-adjustable steering column adjustment nut No. 1 | 45833-12010 |
| 45878 | Steering column upper bracket | 45878-12220 |
| 45879A | Separate enclosure | 45879-42020 |
| 45880A | Bolt (for steering tilt adjustment lever) | 45832-12010 |
| 45897 | Steering lock fixing bolt | 45897-12020 |
| 45897A | Tilt-adjustable steering pawl retaining bolt | 45897-12040 · 45897-16020 |
