Toyota COROLLA 后桥半轴和后桥轮毂 — Figure 4102

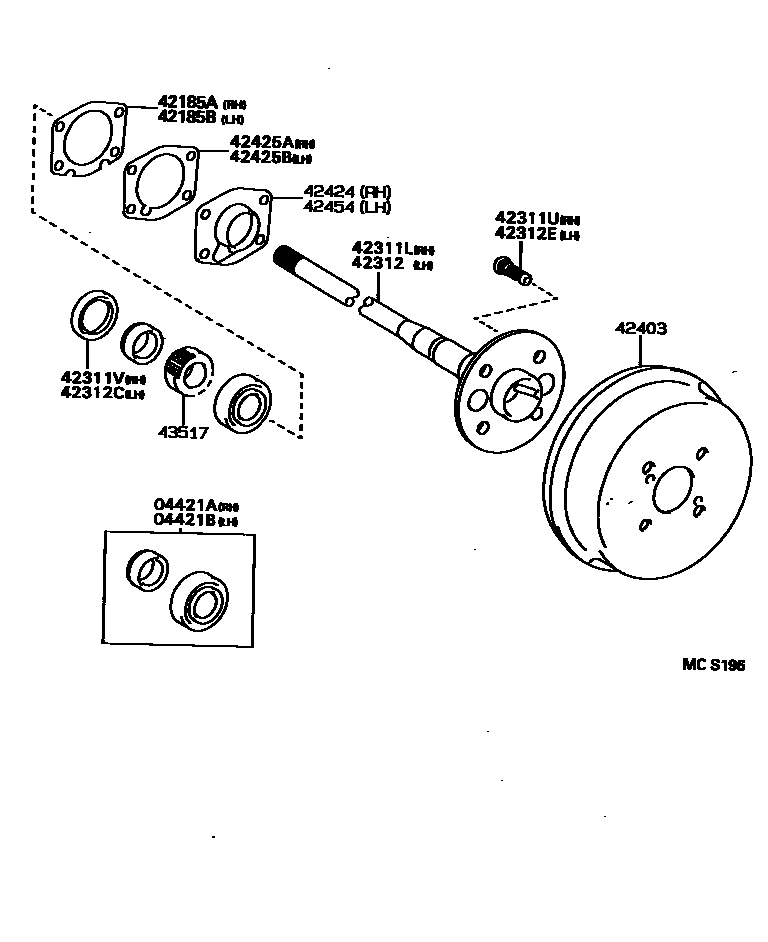

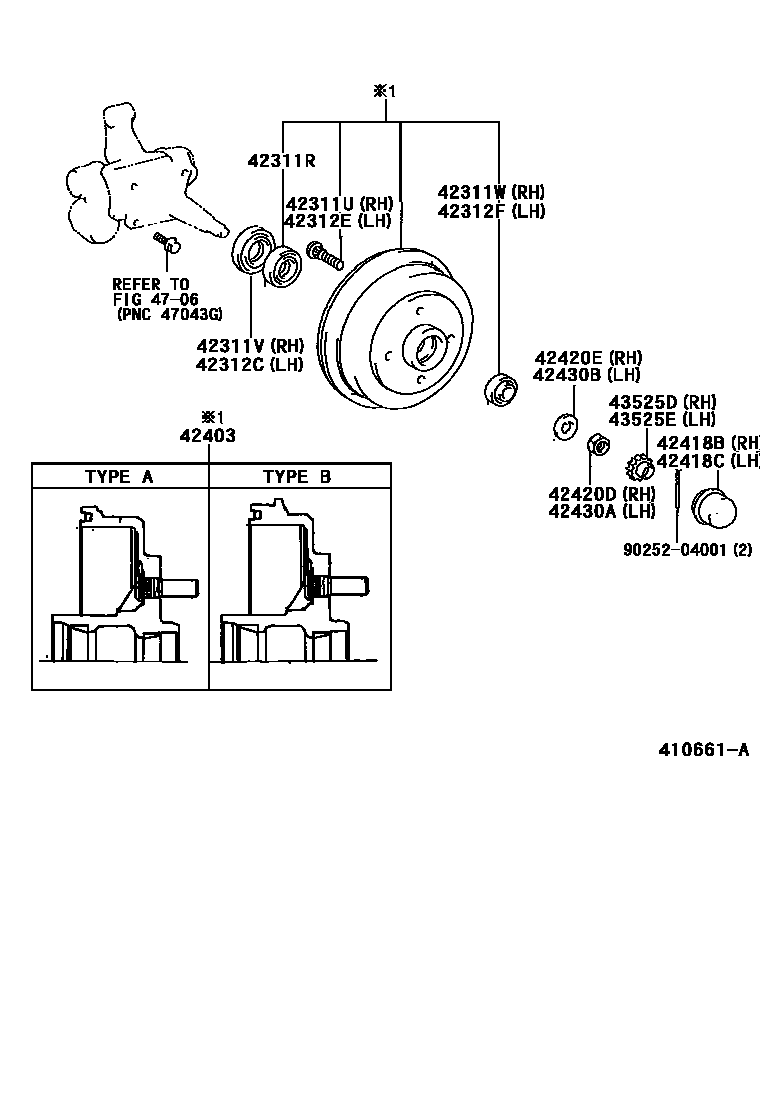

Toyota COROLLA EPC diagram 4102, 后桥半轴和后桥轮毂, with 2 images and 27 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04421A | Rear axle right half shaft bearing assembly | 04421-12011 |
| 04421B | Rear axle left half shaft bearing assembly | 04421-12011 |
| 42185A | Right rear axle housing end gasket | 42185-12010 |
| 42185B | Left rear axle housing end gasket | 42185-12010 |
| 42311L | Rear axle right half shaft | 42311-16050 · 42311-16060 |
| 42311R | Inner bearing (for rear axle half shaft) | 90366-27001 |
| 42311U | Hub bolt (for rear axle right) | 90942-02047 |
| 42311V | Oil seal (for rear axle right half shaft) | 90311-38037 · 90311-42055 |
| 42311W | Outer bearing (for rear axle right half shaft) | 90366-17010 |
| 42312 | Rear axle left half shaft | 42311-16050 · 42311-16060 |
| 42312C | Oil seal (for rear axle left half shaft) | 90311-38037 · 90311-42055 |
| 42312E | Hub bolt (for left rear axle) | 90942-02047 |
| 42312F | Outer bearing (for rear axle left half shaft) | 90366-17010 |
| 42403 | Rear brake drum sub-assembly | 42043-19015 · 42043-19045 · 42403-19015 · 42403-19085 · 42431-16060 |
| 42418B | Right rear wheel hub grease cap | 43514-10030 |
| 42418C | Left rear wheel hub grease cap | 43514-10030 |
| 42420D | Nut (for rear axle right half shaft) | 94125-41600 |
| 42420E | Claw washer (for rear axle right half shaft) | 90214-16010 |
| 42424 | Rear axle right bearing outer retainer | 42424-20010 |
| 42425A | Rear axle right bearing retainer gasket | 42425-20010 |
| 42425B | Rear axle left bearing retainer gasket | 42425-20010 |
| 42430A | Nut (for rear axle left half shaft) | 94125-41600 |
| 42430B | Claw washer (for rear axle left half shaft) | 90214-16010 |
| 42454 | Rear axle left bearing outer retainer | 42454-20010 |
| 43517 | Rear anti-skid control rotor | 43517-10020 |
| 43525D | Right rear wheel adjustment lock cover | 43525-20011 |
| 43525E | Left rear wheel adjustment lock cover | 43525-20011 |
