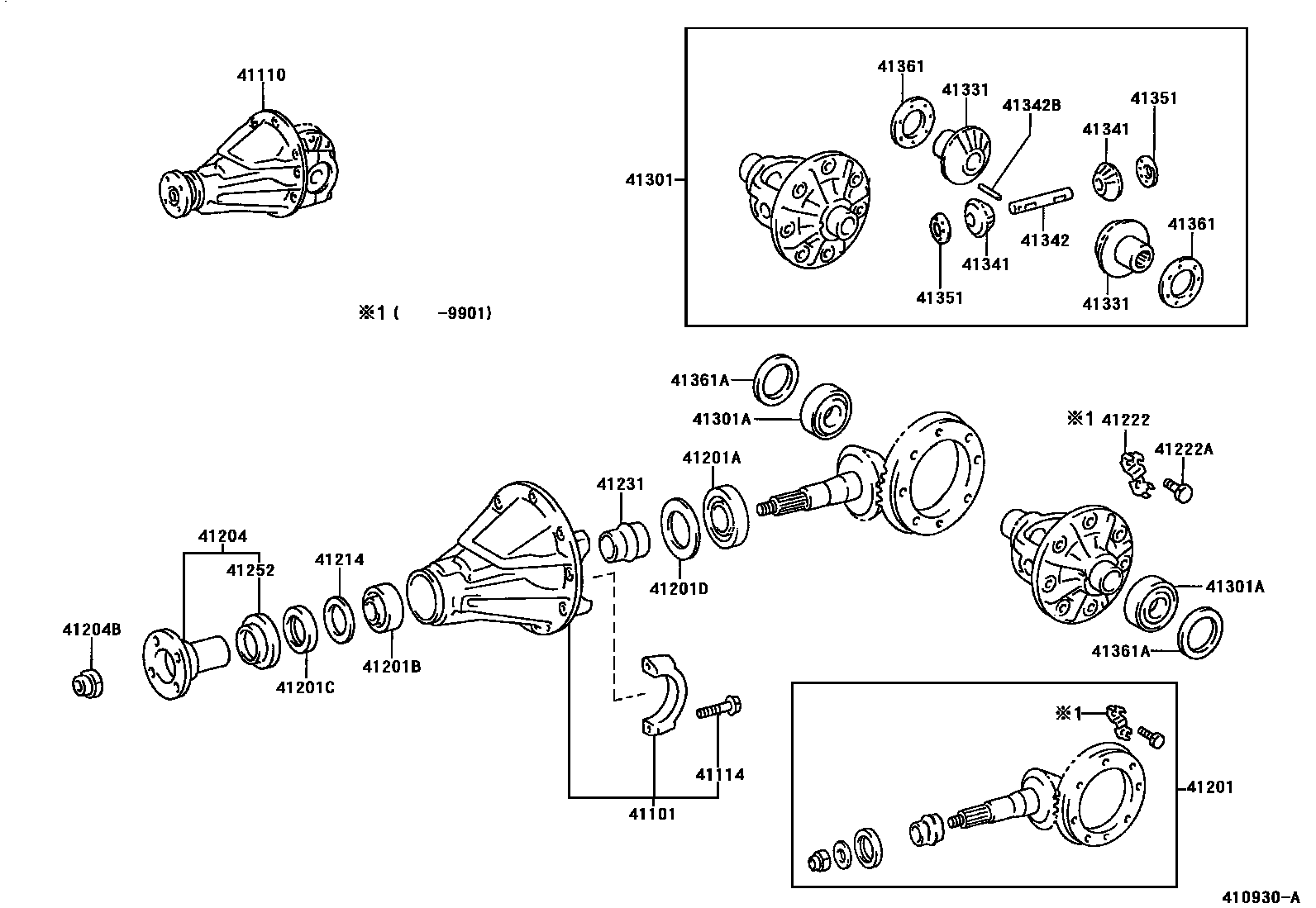

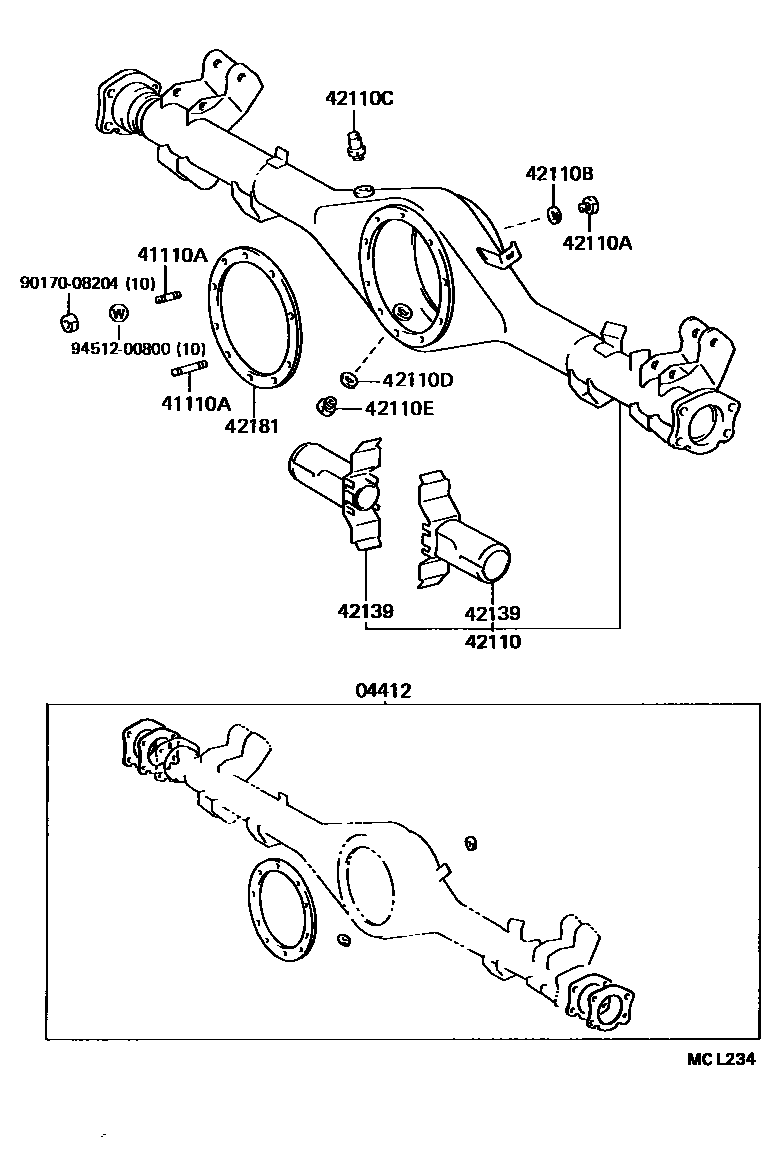

Toyota COROLLA 后桥壳和差速器 — Figure 4101
Toyota COROLLA EPC diagram 4101, 后桥壳和差速器, with 2 images and 34 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04412 | Rear differential carrier gasket assembly | 04412-10041 |
| 41101 | Rear differential bracket sub-assembly | 41101-16010 · 41101-16011 |
| 41110 | Rear differential bracket assembly | 41110-16140 · 41110-16141 |
| 41110A | Bolt No. 1 (for rear differential case assembly) | 90116-08235 · 90116-08236 |
| 41114 | Rear differential bearing cap bolts | 41114-16010 |
| 41201 | Rear differential final drive gear assembly | 41201-19615 · 41201-19616 |
| 41201A | Rear tapered bearing (for rear driving pinion) | 90366-40058 |
| 41201B | Front roller tapered bearing (for rear drive pinion) | 90366-30047 |
| 41201C | Oil seal (for rear differential case) | 90311-38015 |
| 41201D | Flat washer (for rear differential drive pinion) | 90564-59026 · 90564-59027 · 90564-59028 · 90564-59029 · 90564-59030 · 90564-59031 · 90564-59032 · 90564-59033 · 90564-59034 · 90564-59035 · 90564-59036 · 90564-59037 · 90564-59038 · 90564-59039 · 90564-59040 · 90564-59041 · 90564-59042 · 90564-59043 |
| 41204 | Rear driving pinion rear coupling flange sub-assembly | 41204-20020 · 41204-48020 |
| 41204B | Nut (for rear driving pinion) | 90179-18020 |
| 41214 | Rear differential drive pinion oil retaining ring | 41214-28010 |
| 41222 | Rear differential ring gear fixing bolt locking plate | 41222-12030 |
| 41222A | Bolt (for rear differential ring gear assembly) | 90101-11365 · 90105-11034 |
| 41231 | Rear differential drive pinion bearing spacer | 41231-16030 |
| 41252 | Dust cover (for rear differential) | 41252-22010 · 41252-48020 |
| 41301 | Rear differential housing sub-assembly | 41301-16030 · 41301-16031 |
| 41301A | Bearings (for rear differential housing) | 90368-34011 |
| 41331 | rear differential side gear | 41331-16020 |
| 41341 | rear differential pinion | 41341-10030 |
| 41342 | Rear differential planetary gear shaft | 41342-10050 |
| 41342B | Direct sales (for rear differential planetary gear shaft) | 90250-04089 |
| 41351 | Rear differential planetary gear thrust washer | 41351-10030 |
| 41361 | No. 1 rear differential half gear thrust washer | 41361-12010 · 41361-12020 · 41361-12030 · 41361-12040 · 41361-12050 · 41361-12060 |
| 41361A | Thrust washers (for rear differential side gears) | 90564-51001 · 90564-51002 · 90564-51003 · 90564-51004 · 90564-51005 · 90564-51006 · 90564-51007 · 90564-51008 · 90564-51009 · 90564-51010 · 90564-51011 · 90564-51012 · 90564-51013 · 90564-51014 · 90564-51015 · 90564-51016 · 90564-51017 · 90564-51018 · 90564-51019 · 90564-51020 · 90564-51021 · 90564-51022 · 90564-51023 · 90564-51024 · 90564-51025 · 90564-51026 · 90564-51027 · 90564-51035 · 90564-51036 · 90564-51037 · 90564-51038 |
| 42110 | Rear axle housing assembly | 42110-16080 · 42110-16090 · 42110-16091 |
| 42110A | Screw plug (for rear axle housing oil filling port) | 90341-18049 |
| 42110B | Gasket (for rear axle housing oil filling plug) | 12157-10010 |
| 42110C | Breather plug (for rear axle housing) | 90930-03031 |
| 42110D | Gasket (for rear axle housing drain plug) | 12157-10010 |
| 42110E | Screw plug (for rear axle housing oil drain port) | 90341-18057 |
| 42139 | Rear axle housing oil baffle | 42108-16010 |
| 42181 | Rear differential case gasket | 42181-22010 |
