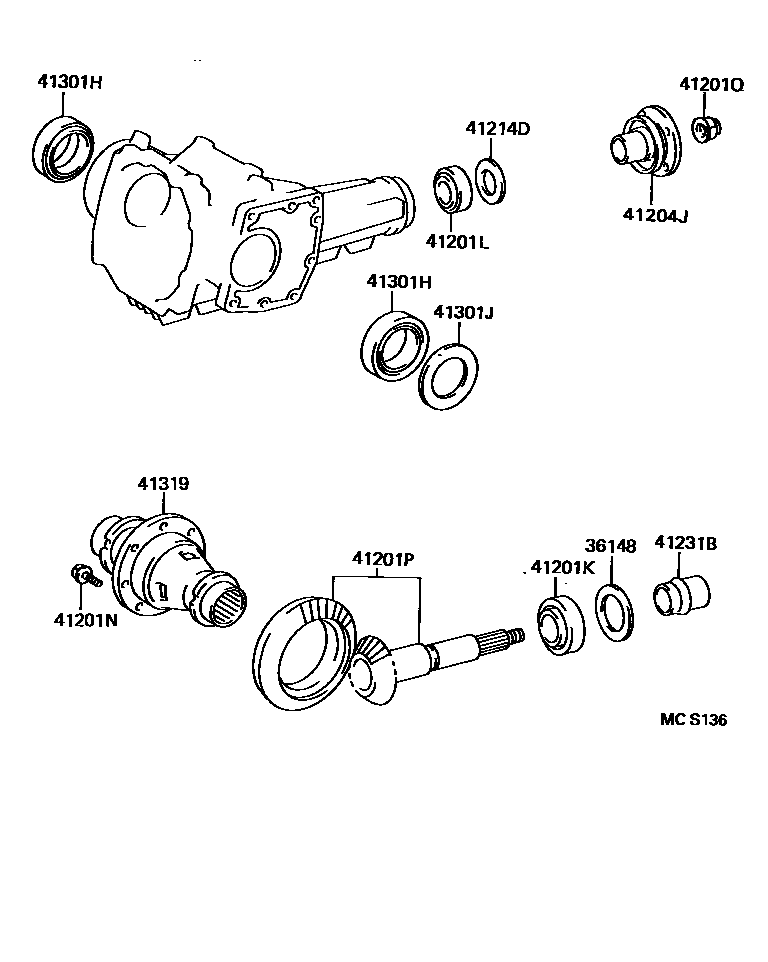

Toyota COROLLA Transfer Gear — Figure 3610
Toyota COROLLA EPC diagram 3610, Transfer Gear, with 1 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 36148 | Pinion bearing cover gasket | 90564-59026 · 90564-59027 · 90564-59028 · 90564-59029 · 90564-59030 · 90564-59031 · 90564-59032 · 90564-59033 · 90564-59034 · 90564-59035 · 90564-59036 · 90564-59037 · 90564-59038 · 90564-59039 · 90564-59040 · 90564-59041 · 90564-59042 · 90564-59043 |
| 41201K | Bearing (for transfer case front driven pinion) | 90366-40058 |
| 41201L | Bearing (for transfer case rear driven pinion) | 90366-30044 |
| 41201N | Bolt (for transfer case gear) | 90105-11034 |
| 41201P | Transfer gear assembly | 41201-16130 |
| 41201Q | Nut (for transfer case gear) | 90179-18020 |
| 41204J | Center differential drive pinion combination flange | 41204-16010 |
| 41214D | Center differential drive pinion oil retaining ring | 41214-16010 |
| 41231B | Transfer case pinion bearing spacer | 41231-16020 |
| 41301H | Bearing (for ring gear mounting housing) | 90366-55045 · 90366-56001 |
| 41301J | Flat washer (for ring gear mounting housing) | 90564-55001 · 90564-55002 · 90564-55003 · 90564-55004 · 90564-55005 · 90564-55006 · 90564-55007 · 90564-55008 · 90564-55009 · 90564-55010 · 90564-55011 · 90564-55012 · 90564-55013 · 90564-55014 · 90564-55015 · 90564-55016 · 90564-55017 · 90564-55018 · 90564-55019 · 90564-55020 · 90564-55021 · 90564-55022 · 90564-55023 · 90564-55024 |
| 41319 | Transfer gear ring gear mounting housing | 41319-16010 |
