Toyota COROLLA Transfer Case & Extension Housing — Figure 3609

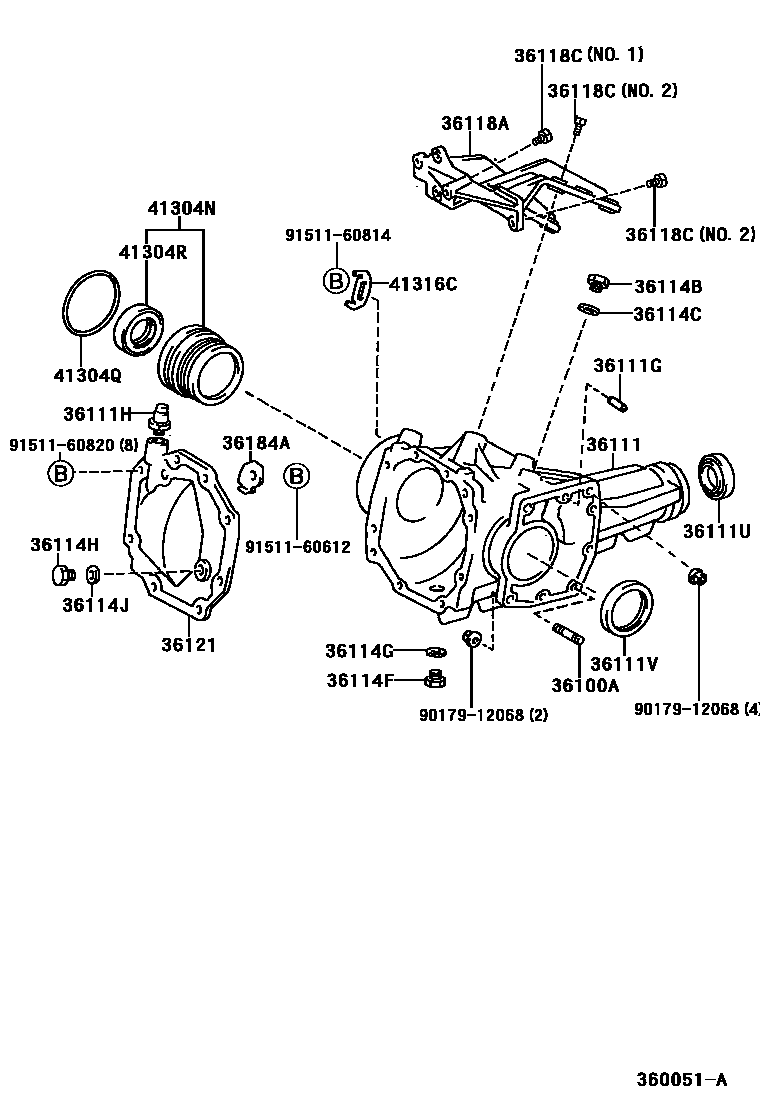

Toyota COROLLA EPC diagram 3609, Transfer Case & Extension Housing, with 1 images and 20 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 36100A | Stud bolts (for securing transfer case and transaxle) | 90116-12033 · 90116-12034 |
| 36111 | transfer case | 36111-16010 |
| 36111G | Direct sales (for transfer case) | 90250-10017 |
| 36111H | Breather plug (for transfer case) | 90930-03031 |
| 36111U | Oil seal (for transfer case drive shaft side) | 90311-38042 |
| 36111V | Oil seal (for transfer case drive shaft side) | 90311-54004 |
| 36114B | No. 1 screw plug (for transfer case) | 90341-18006 |
| 36114C | No. 1 gasket (for transfer case) | 90430-18008 |
| 36114F | Screw plug (for transfer case oil drain) | 90341-18057 |
| 36114G | Gasket (for transfer case drain plug) | 90430-18008 |
| 36114H | No. 2 screw plug (for transfer case) | 90341-18045 |
| 36114J | No. 2 gasket (for transfer case) | 90430-18008 |
| 36118A | Transfer case right side reinforcement plate | 36118-16011 · 36118-16021 |
| 36118C | Bolts (for transfer case reinforcement plate) | 91511-60825 · 91511-60845 |
| 36121 | No. 1 transfer case cover | 36121-16010 |
| 36184A | Transfer case oil separator | 36184-16010 |
| 41304N | Center differential bearing adjusting nut sub-assembly | 41304-16010 |
| 41304Q | O-ring (for center differential bearing adjusting nut) | 90301-79002 |
| 41304R | Oil seal (for center differential bearing adjusting nut) | 90311-47009 |
| 41316C | Center differential bearing adjustment nut locking plate | 41316-16010 |
