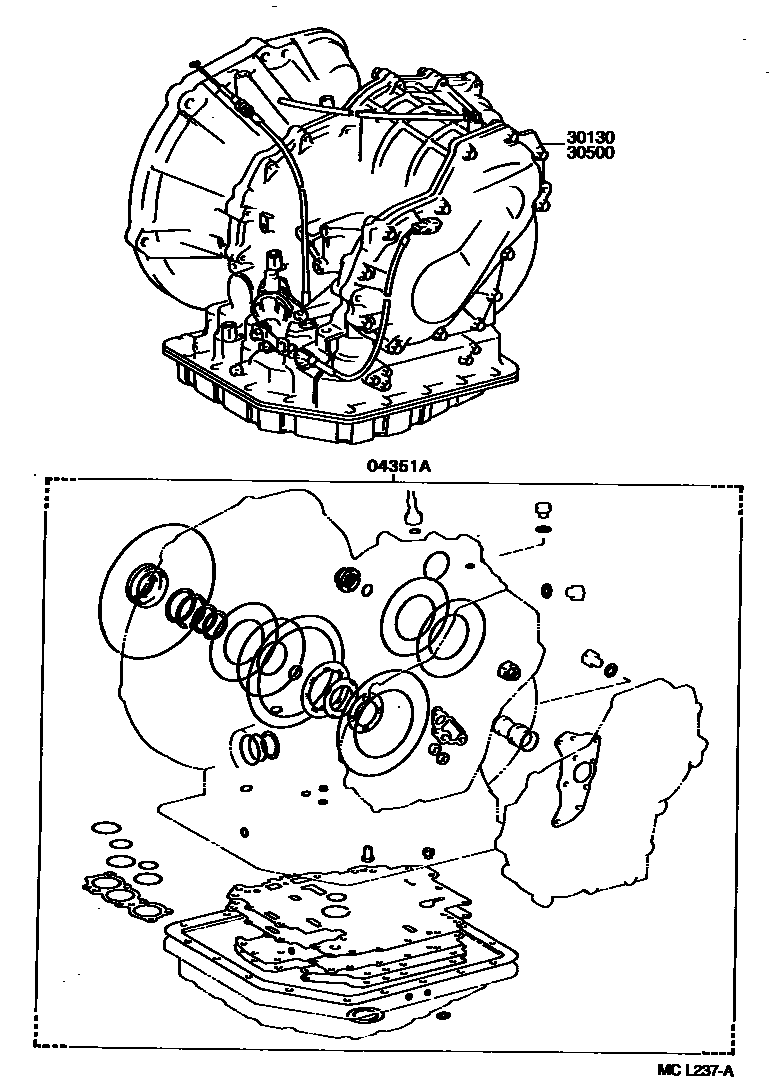

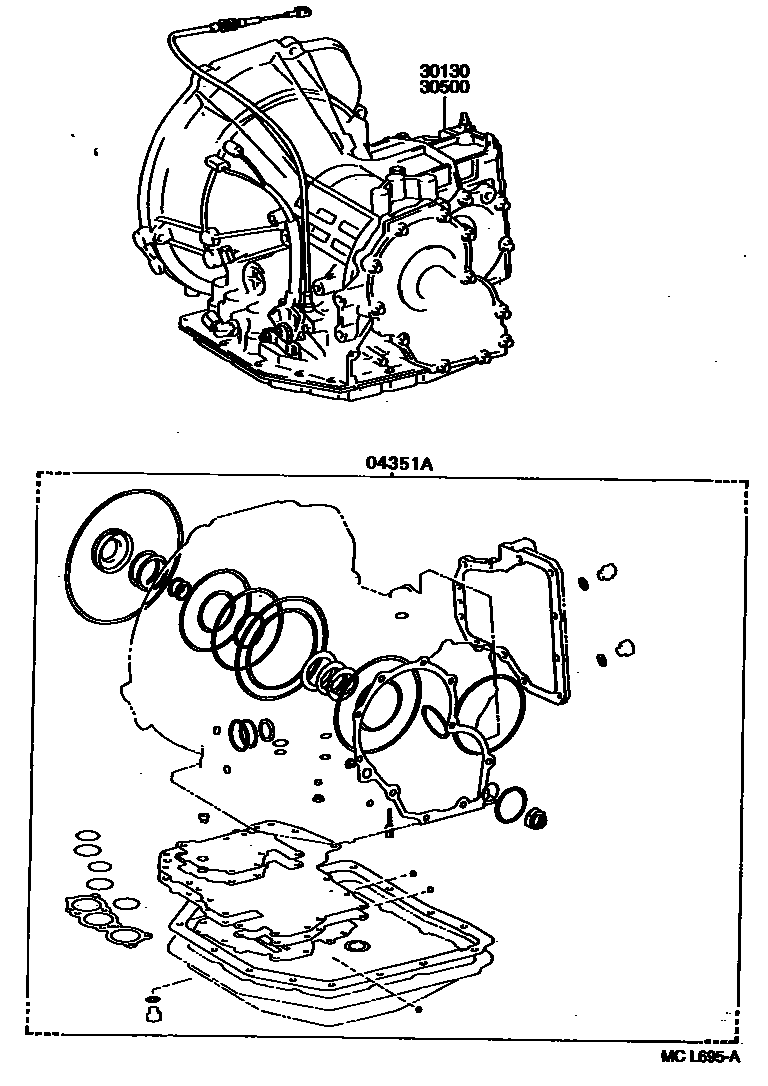

Toyota COROLLA 传动桥或变速器总成和衬垫组件(ATM) — Figure 3501
Toyota COROLLA EPC diagram 3501, 传动桥或变速器总成和衬垫组件(ATM), with 2 images and 3 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04351A | Transaxle overhaul gasket assembly (ATM) | 04351-10050 · 04351-10051 · 04351-16070 |
| 30130 | Refurbished transmission axle assembly | 30130-16400 · 30130-16460 · 30130-16470 · 30130-16471 · 30130-16500 · 30130-16600 · 30130-16640 · 30130-16650 |
| 30500 | Automatic transmission axle assembly | 30500-16400 · 30500-16460 · 30500-16470 · 30500-16471 · 30500-16500 · 30500-16600 · 30500-16640 · 30500-16650 |
