Toyota COROLLA Shift Lever & Retainer — Figure 3312

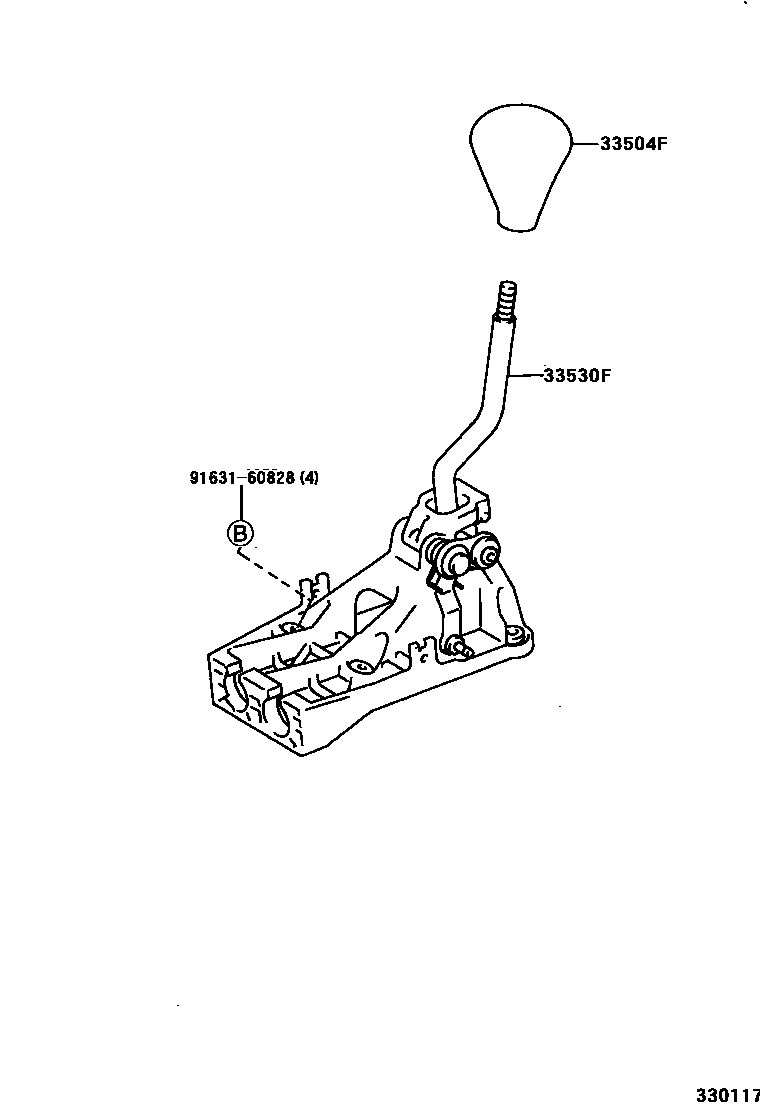

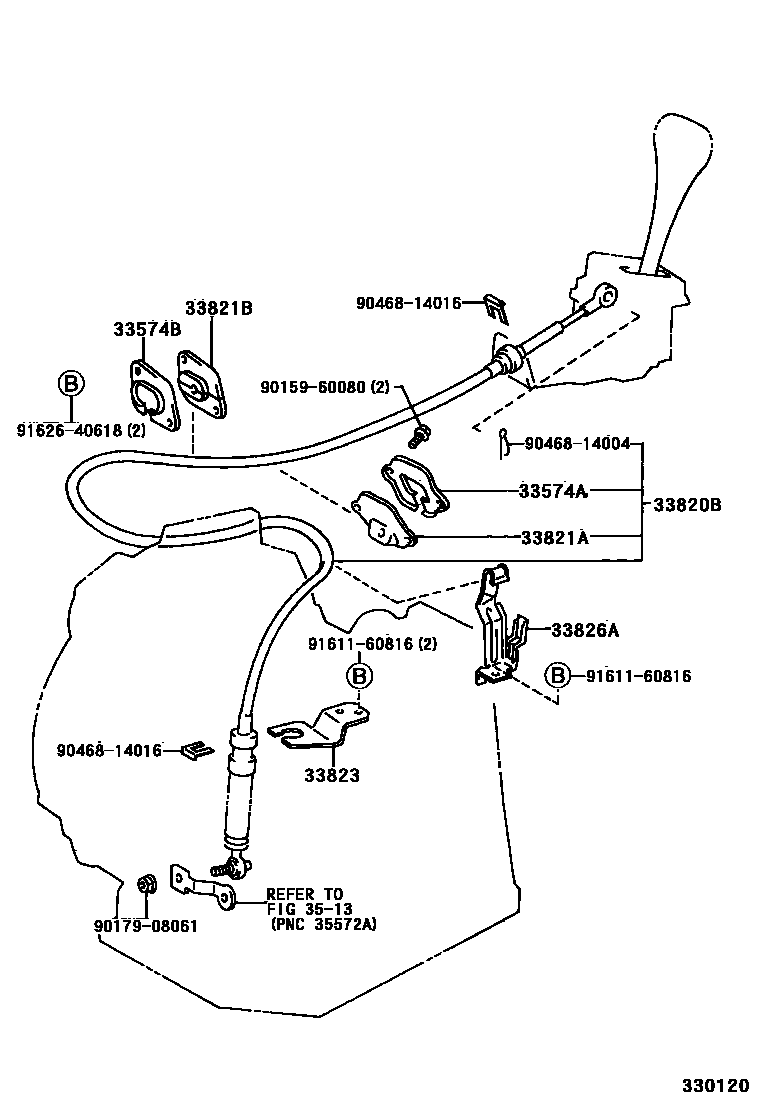

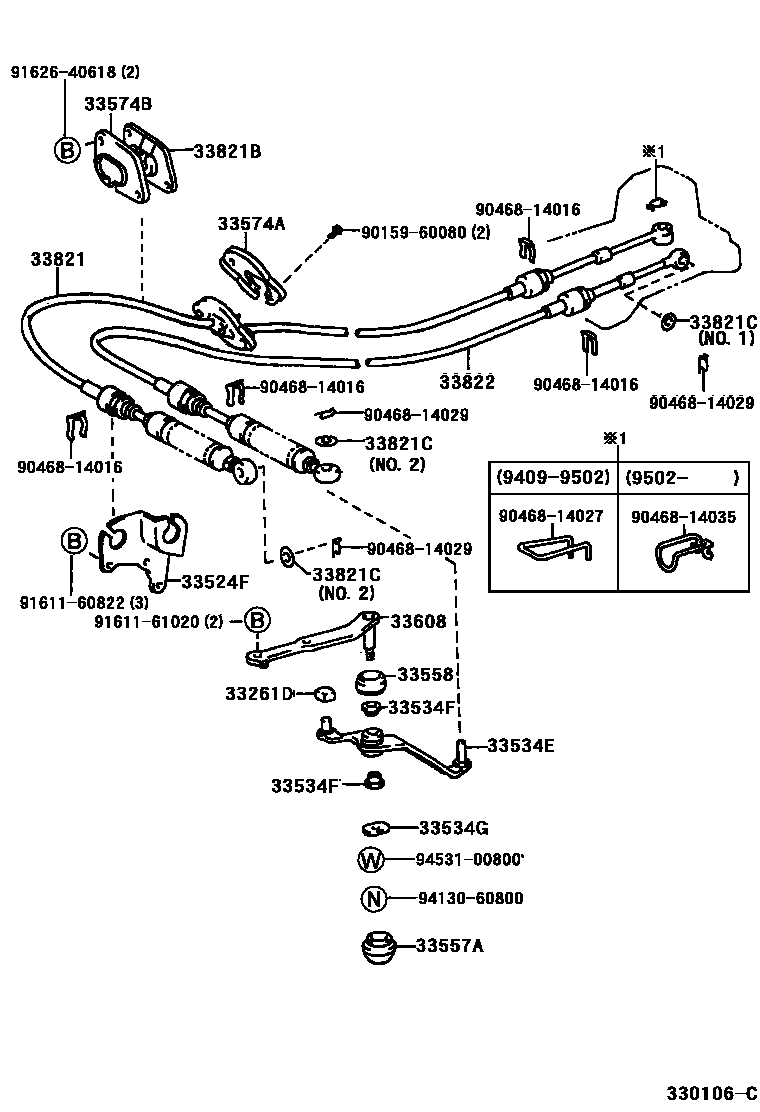

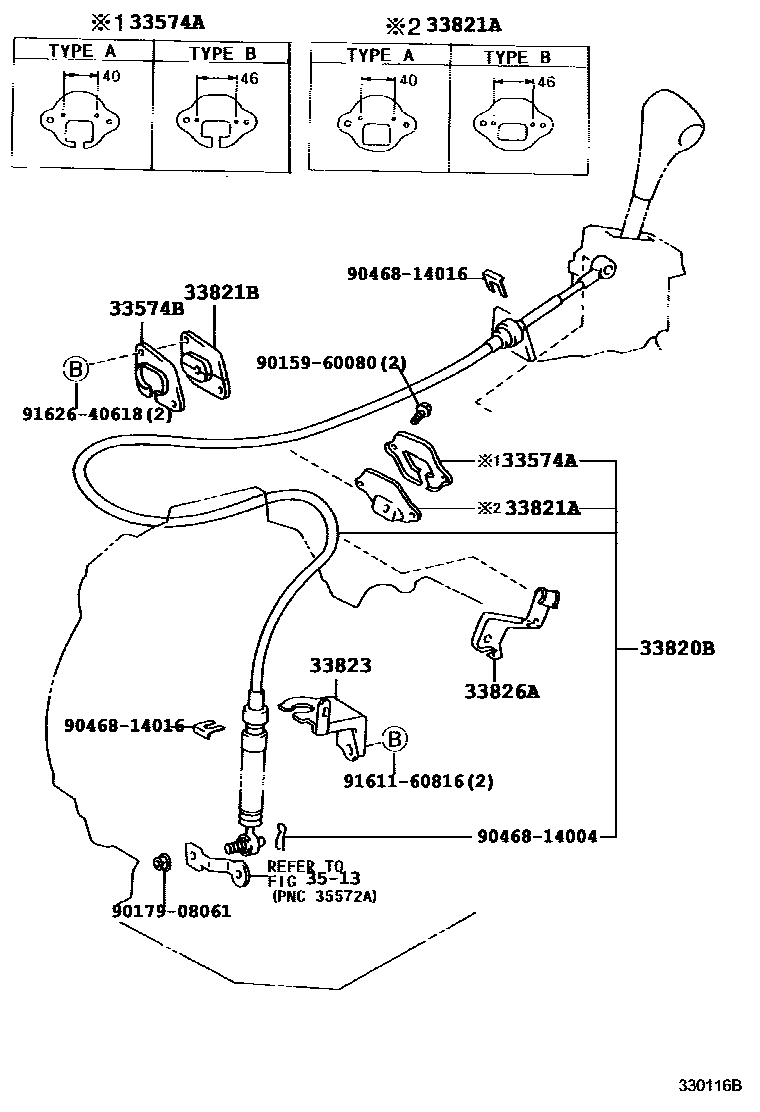

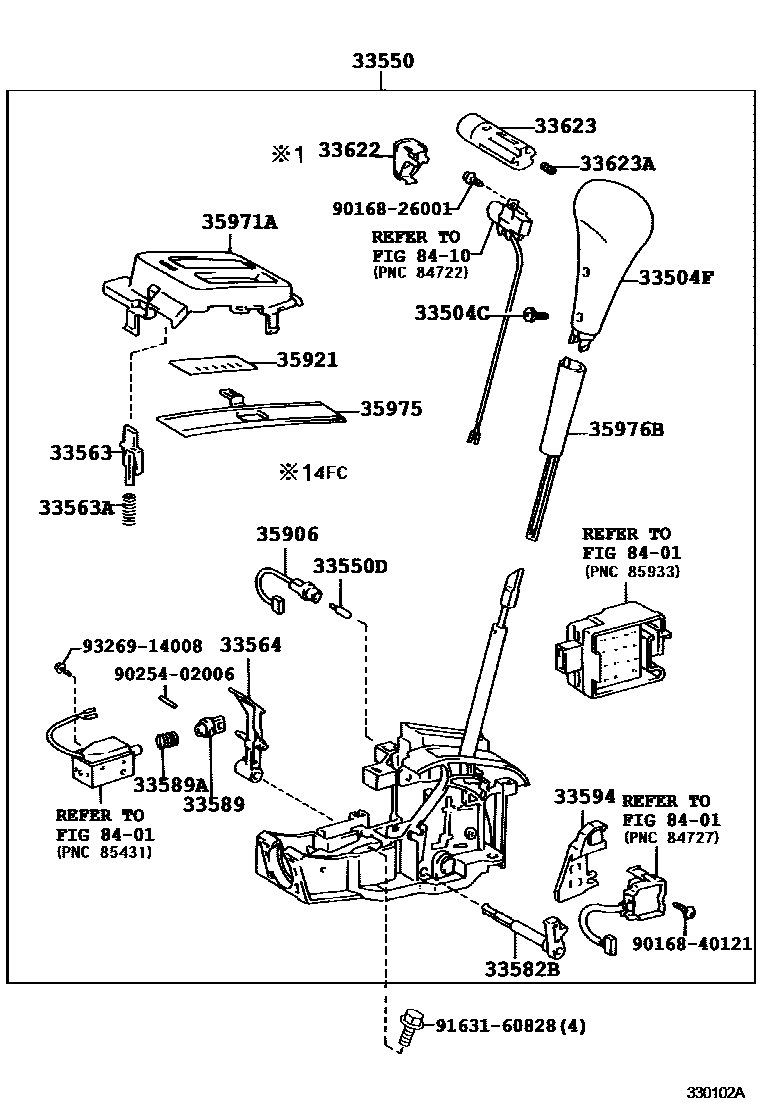

Toyota COROLLA EPC diagram 3312, Shift Lever & Retainer, with 5 images and 33 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 33261D | Bushing (for shift lever) | 33557-33010 |
| 33504C | Screw (for securing shift lever knob) | 90159-40134 |
| 33524F | Lever housing bracket (for floor shift) | 33524-16030 · 33524-16040 |
| 33530F | Shift lever assembly (for floor shift) | 33530-16140 · 33530-16150 |
| 33534E | No. 2 gear selection right-angle lever | 33534-10060 · 33534-16051 |
| 33534F | Bushing (for No. 2 gear selector right-angle lever) | 90386-12022 |
| 33534G | Flat washer (for No. 2 gear selector right-angle lever) | 90201-08028 |
| 33550D | position indicator light bulb | 90981-11018 |
| 33557A | No. 1 gear selection right-angle lever dust cover | 33557-32010 |
| 33558 | No. 2 gear selection right-angle lever dust cover | 33558-10030 |
| 33563 | Shift lock release button | 33563-16060 |
| 33563A | Compression spring (for shift lock release button) | 90501-07103 |
| 33564 | No. 1 shift lock release link | 33564-16030 |
| 33574A | No. 1 shift cable retaining ring retaining ring | 33574-10010 · 33574-10020 |
| 33574B | No. 2 shift cable seal | 33574-10030 |
| 33582B | Shift lock plate stop (for floor shift) | 33582-16040 |
| 33589 | Shift lock solenoid valve connecting rod | 33589-16030 |
| 33589A | Compression spring (for shift lock solenoid valve linkage) | 90501-07096 |
| 33594 | Shift lock plate (for floor shift) | 33594-16060 |
| 33608 | Gear selection right-angle lever bracket sub-assembly | 33608-10032 · 33608-16021 |
| 33623A | Compression spring (for shift lever knob button) | 90501-05040 |
| 33820B | Transmission control cable assembly | 33820-16180 · 33820-16181 · 33820-16190 · 33820-16200 |
| 33821 | Transmission shift control cable (for floor-mounted shifting) | 33821-16150 · 33821-16151 |
| 33821A | No. 1 retaining ring (for transmission control cable) | 90480-01662 · 90480-01667 |
| 33821B | No. 2 retaining ring (for transmission control cable) | 90480-01291 · 90480-01663 |
| 33821C | Flat Washer (for transmission control cable) | 90201-08023 · 90201-08077 · 90201-08267 |
| 33822 | Transmission selector control cable (for floor-mounted shifting) | 33822-16050 |
| 33823 | No. 1 transmission control cable bracket | 33823-12090 · 33823-16050 |
| 33826A | No. 2 transmission control cable bracket | 33826-16010 · 33826-16020 |
| 35906 | Indicator light wiring harness sub-assembly | 35906-16070 |
| 35921 | control position indicator board | 35921-16140 |
| 35971A | Position indicator light upper shell | 35971-16130 |
| 35975 | Slide cover (for position indicator light) | 35975-16090 |
