Toyota COROLLA 离合器踏板和挠性软管 — Figure 3102

Toyota COROLLA EPC diagram 3102, 离合器踏板和挠性软管, with 3 images and 15 PNC and OE references.

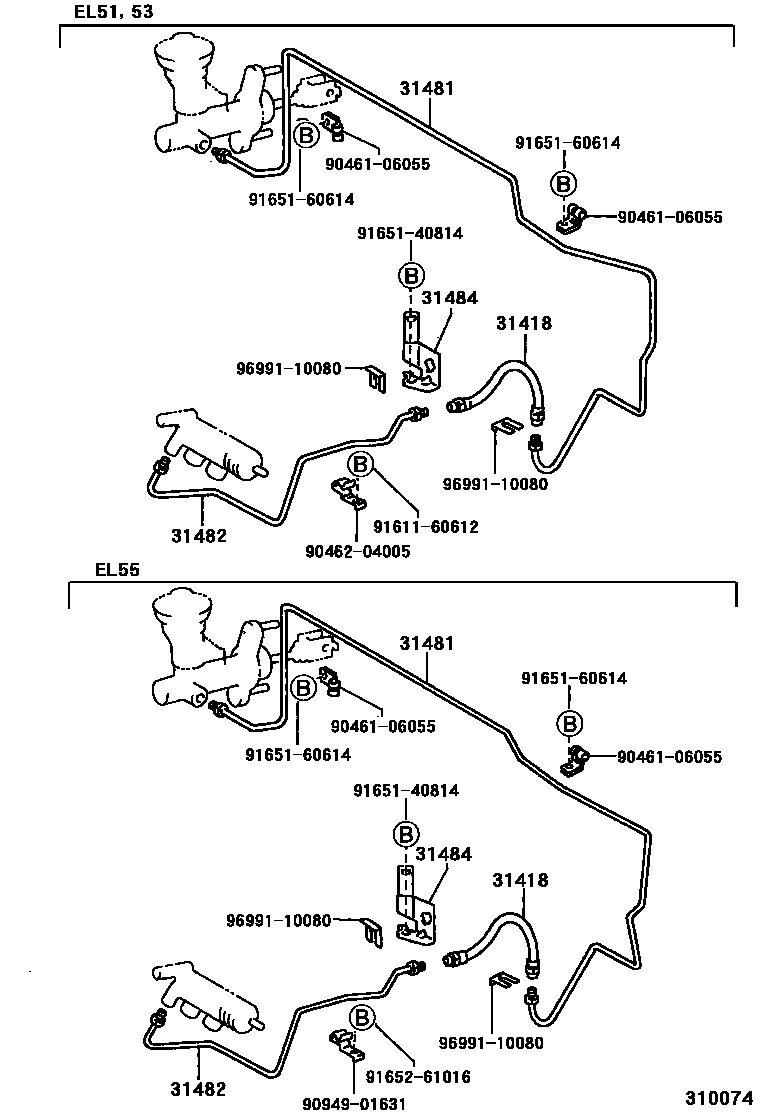

Toyota COROLLA 离合器踏板和挠性软管 EPC diagram — 310074
离合器踏板和挠性软管 — 310074 (199409 – 999999)

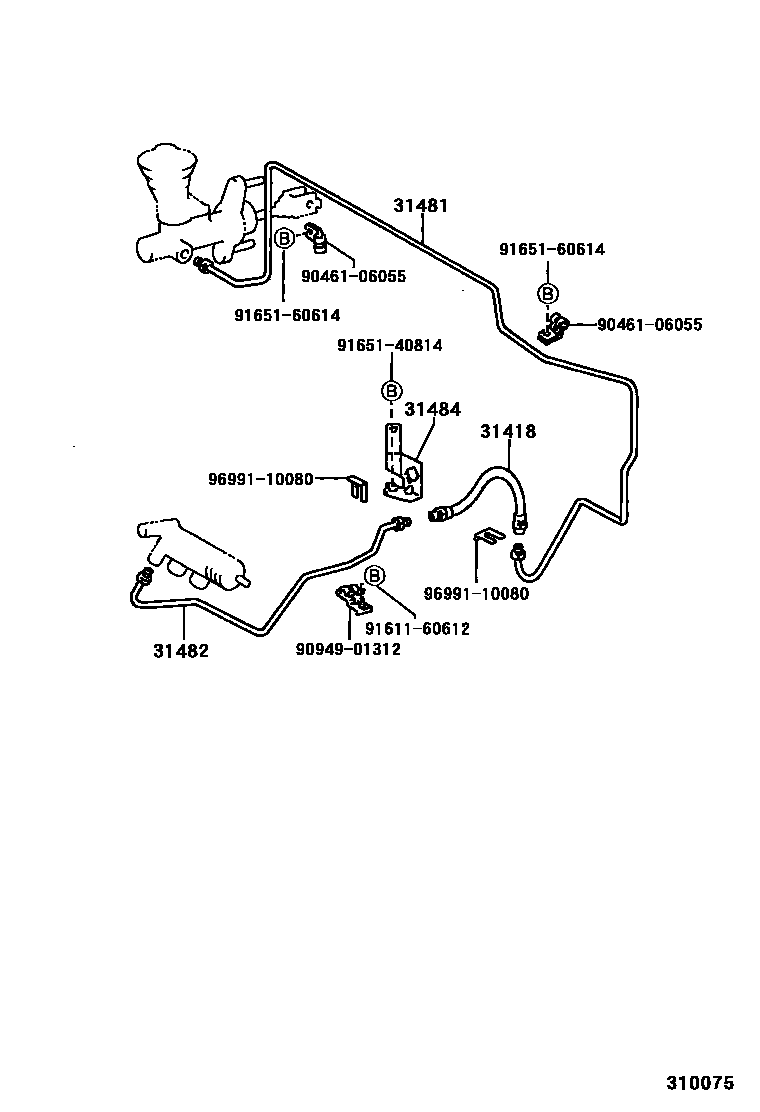

Toyota COROLLA 离合器踏板和挠性软管 EPC diagram — 310075
离合器踏板和挠性软管 — 310075 (199409 – 999999)

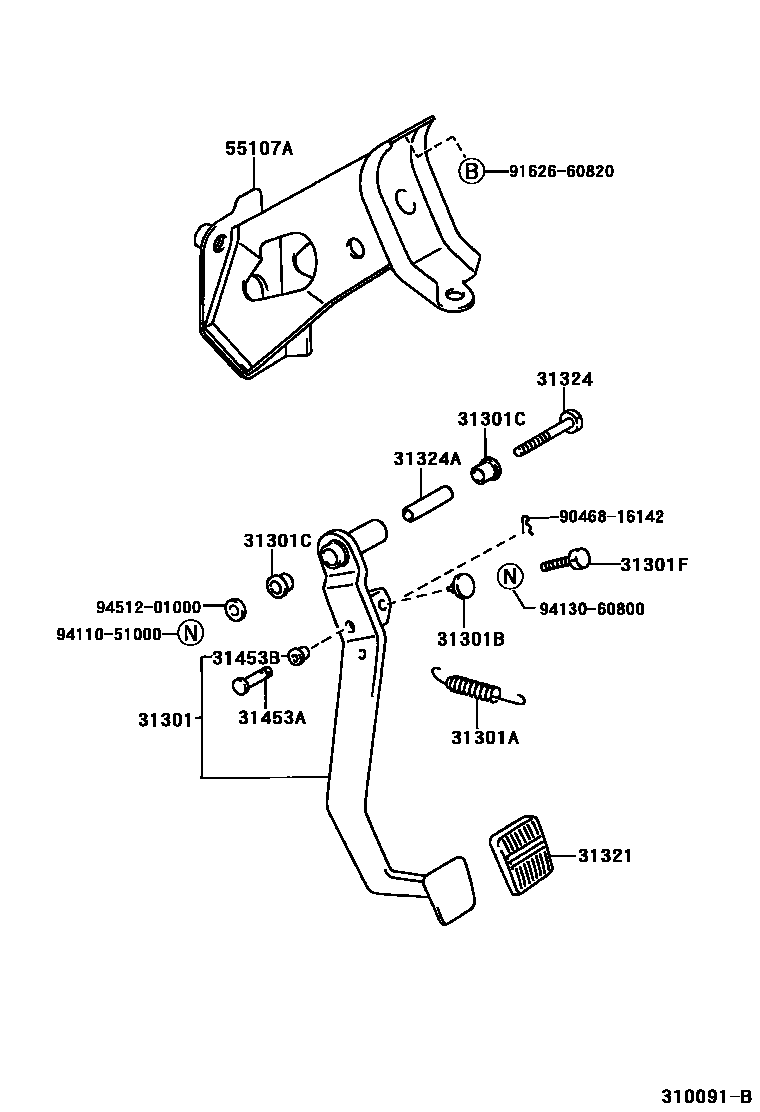

Toyota COROLLA 离合器踏板和挠性软管 EPC diagram — 310091B
离合器踏板和挠性软管 — 310091B (199409 – 999999)

PNC and OE references

PNCPart nameOE numbers
31301Clutch pedal sub-assembly31301-16090
31301ASpring (for clutch pedal)90507-14035
31301BCushion pad No. 1 (for clutch pedal)90541-06036
31301CBushing (for clutch pedal)90386-13015
31301FBolt (for clutch pedal stop)90101-08052
31321clutch pedal pad31321-14020
31324clutch pedal shaft90101-10015
31324Aclutch pedal collar90387-10003
31418clutch hose90931-01073 · 90931-01105
31453APin with hole (for clutch master cylinder push rod U-shaped clamp)90249-08243
31453BBushing (for clutch master cylinder push rod U-shaped clamp)90386-08002
31481Clutch master cylinder to flexible hose pipe31481-16050 · 31481-16051 · 31481-16060
31482Pipe from clutch release cylinder to flexible hose31482-10020 · 31482-10030 · 31482-16040
31484Flexible hose bracket (for clutch)31484-10040
55107AClutch pedal bracket sub-assembly55107-16070
