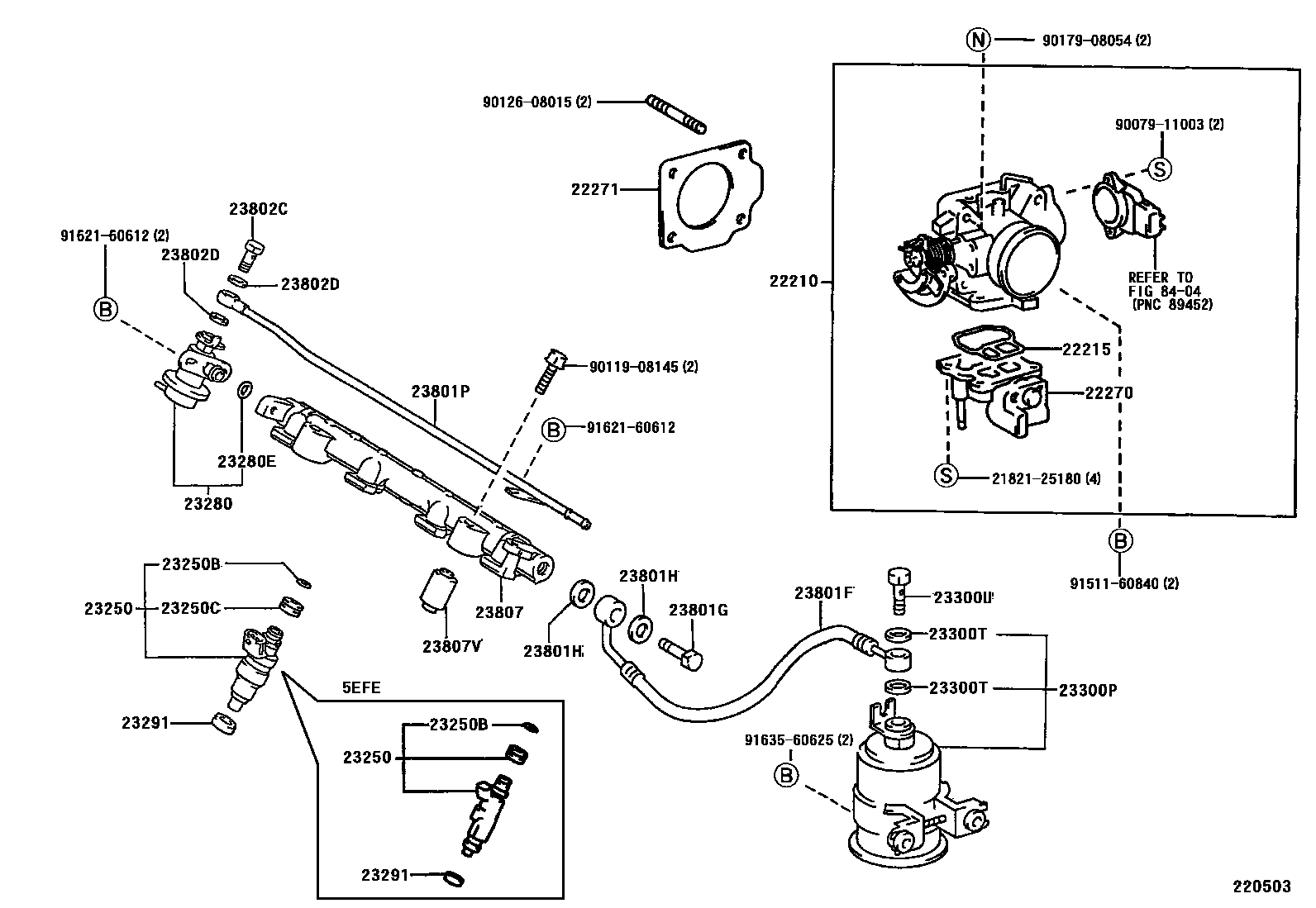

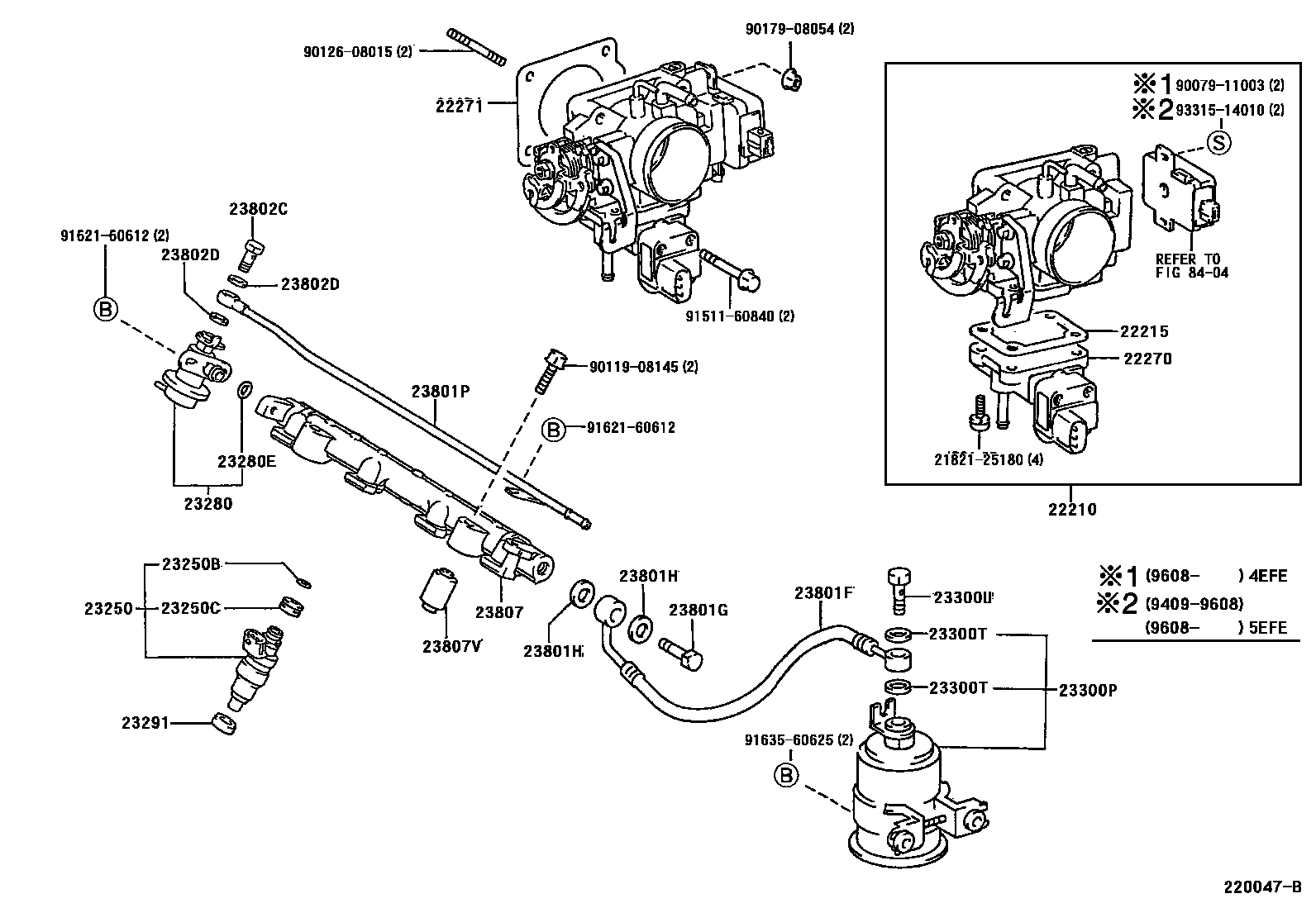

Toyota COROLLA 燃油喷射系统 — Figure 2211
Toyota COROLLA EPC diagram 2211, 燃油喷射系统, with 3 images and 26 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 22210 | Throttle body assembly | 22210-11400 · 22210-11410 · 22210-11500 · 22210-11510 · 22210-11590 · 22210-11600 |
| 22215 | Throttle body cover gasket | 22215-74400 |
| 22270 | Idle speed control valve assembly (for throttle body) | 22270-11010 · 22270-11020 |
| 22271 | Throttle body gasket | 22271-11030 |

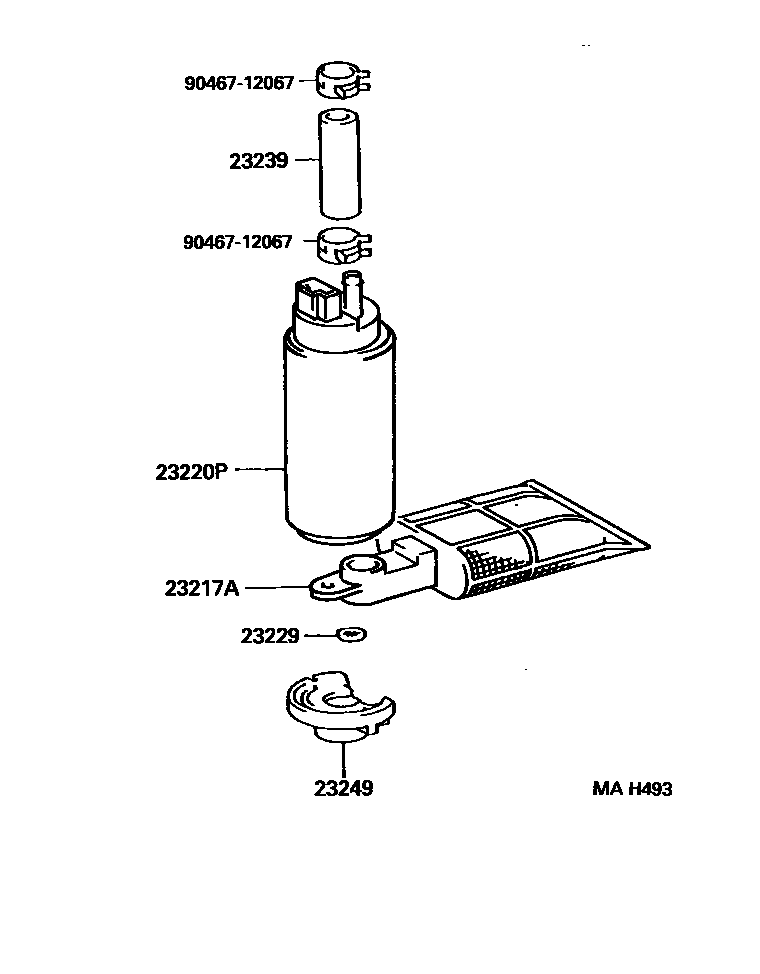

| 23217A | fuel pump filter | 23217-74030 |
| 23220P | fuel pump assembly | 23221-11050 · 23221-46010 |
| 23229 | Clip (for fuel pump filter) | 23229-16010 |
| 23239 | hose | 23239-11010 · 23239-74010 |
| 23249 | Rubber gasket (for fuel pump) | 23249-74610 |
| 23250 | Fuel injector assembly | 23209-11100 · 23209-11120 · 23209-11130 |
| 23250B | O-ring (for fuel injector) | 90301-07001 · 90301-07024 |
| 23250C | Gasket (for injector) | 90480-13005 |
| 23280 | Fuel pressure regulator assembly | 23280-11040 |
| 23280E | O-ring (for fuel pressure regulator) | 90301-07001 · 90301-07024 |
| 23291 | Injector vibration isolation pad | 23291-41010 |
| 23300P | Fuel filter (for EFI) | 23300-19395 |
| 23300T | Gasket (for fuel filter) | 90430-12026 |
| 23300U | Connector bolt (for fuel filter) | 90401-12097 |
| 23801F | No. 1 fuel hose | 23271-11300 · 90923-01372 |
| 23801G | Connector bolt (for fuel pipe) | 90401-12029 · 90401-12033 |
| 23801H | Gasket (for fuel lines) | 23279-74010 · 90430-12026 |
| 23801P | No. 1 fuel pipe sub-assembly | 23801-11090 · 23801-11120 |
| 23802C | Connector bolt (for No. 2 fuel pipe) | 90401-08004 |
| 23802D | Gasket (for No. 2 fuel line) | 90430-08014 |
| 23807 | Oil pipe sub-assembly | 23814-11030 |
| 23807V | No. 1 spacer (for oil pipe) | 23890-11010 · 23891-11020 |
