Toyota COROLLA 分电器 — Figure 1902

Toyota COROLLA EPC diagram 1902, 分电器, with 1 images and 13 PNC and OE references.

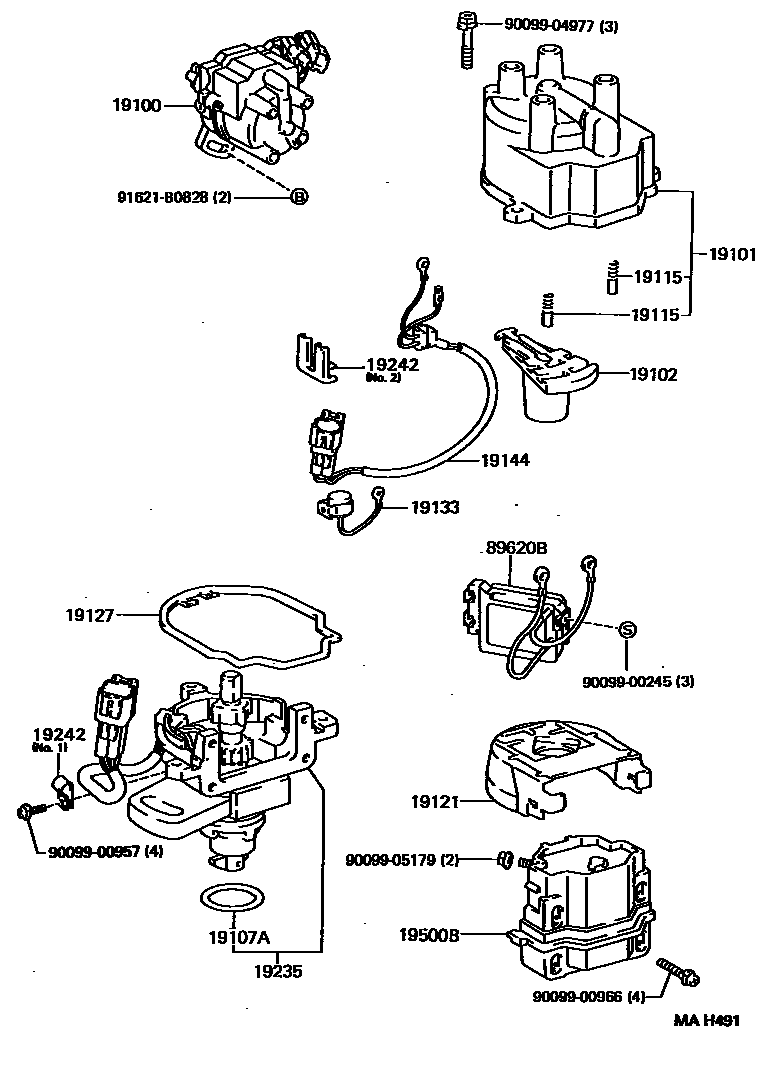

Toyota COROLLA 分电器 EPC diagram — MAH491
分电器 — MAH491 (199409 – 199712)

PNC and OE references

PNCPart nameOE numbers
19100Distributor assembly19020-11340 · 19020-11380 · 19020-11390 · 19020-11400
19101Distributor cover sub-assembly19101-11060
19102Distributor flame head sub-assembly19102-11031 · 19102-11370
19107ADistributor housing O-ring90099-14088
19115Distributor cover center piece19115-63010
19121dust cover19121-11080
19127Dust seal19127-15120
19133Distributor capacitor19133-16240
19144Distributor breaker lead19144-11350
19235Distributor housing19235-11340
19242Cable clip19242-11190 · 19242-11350
19500BIgnition coil assembly90919-02164
89620BIgnition assembly89620-12420
