Toyota COROLLA 点火线圈和火花塞 — Figure 1901
Toyota COROLLA EPC diagram 1901, 点火线圈和火花塞, with 3 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 19100P | spark plug | 90919-01164 · 90919-01192 |
| 19500 | Ignition coil assembly | 90919-02220 · 90919-02226 |
| 19539 | No. 4 damping wire fixing piece | 19539-11020 · 19539-11030 |

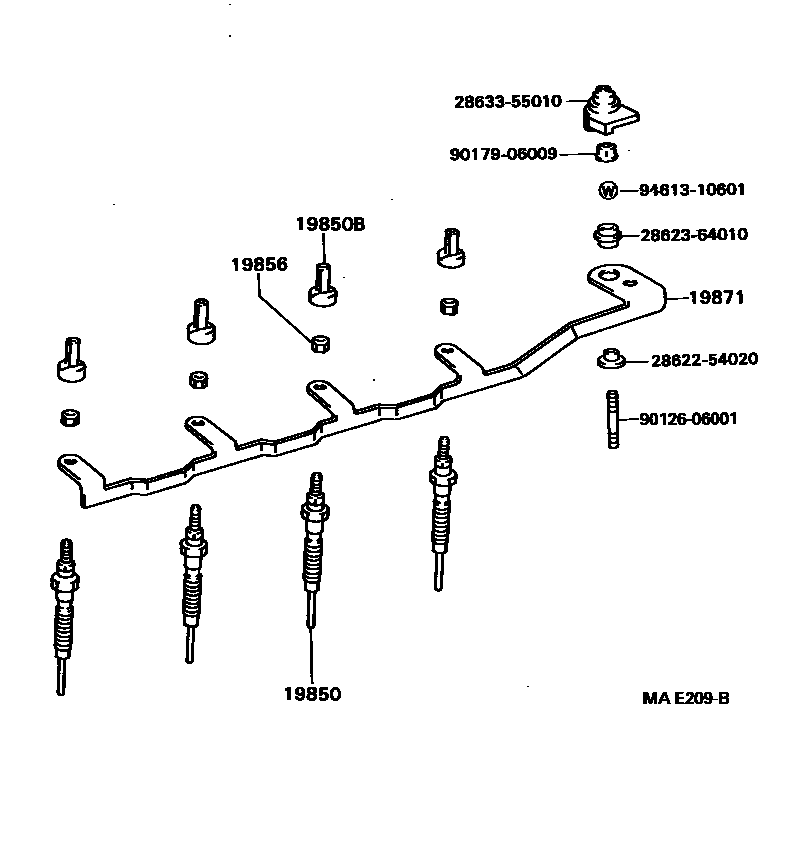

| 19850 | Glow plug assembly | 19850-54120 |
| 19850B | Screw seal (for glow plug) | 90189-04024 |
| 19856 | Connecting nut (for glow plug) | 90170-04002 |
| 19871 | Glow plug connector No. 1 | 19871-55020 |

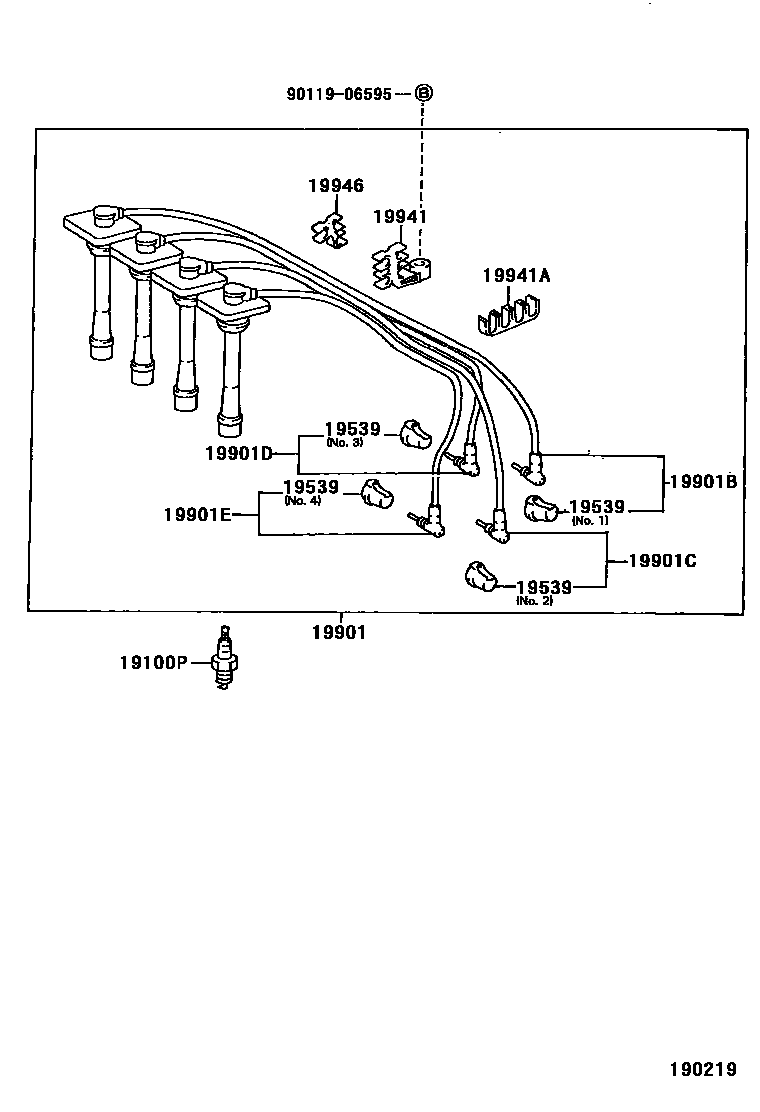

| 19901 | Coil and spark plug assembly with damper wire | 90919-22373 · 90919-22395 |
| 19901B | No. 1 spark plug damper wire | 90919-15423 · 90919-15510 |
| 19901C | No. 2 spark plug damper wire | 90919-15424 · 90919-15511 |
| 19901D | No. 3 spark plug damper wire | 90919-15425 · 90919-15512 |
| 19901E | No. 4 spark plug damper wire | 90919-15202 · 90919-15513 |
| 19941 | No. 1 damping wire clip | 90929-01258 |
| 19941A | Clamp (for damping wire) | 90464-00559 |
| 19946 | No. 3 impedance wire clip | 90464-00561 |
| 19968 | Ignition coil bracket | 19968-11030 |
