Toyota COROLLA 警示铭牌和名称铭牌(发动机) — Figure 1709

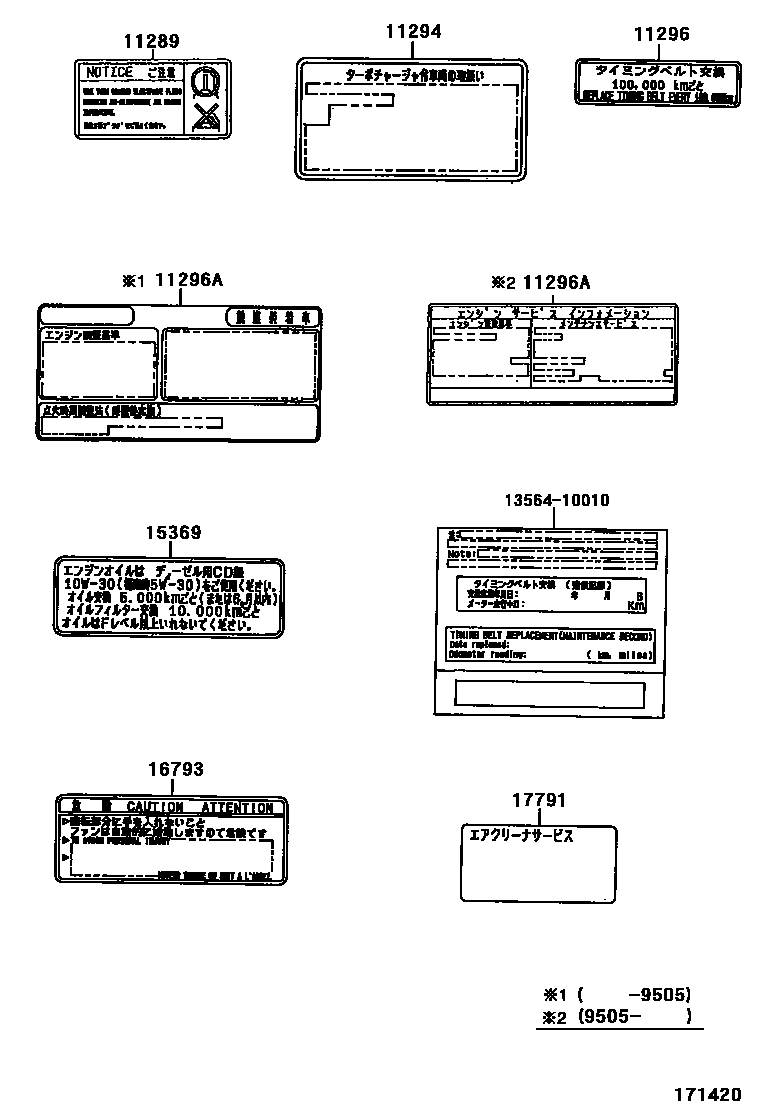

Toyota COROLLA EPC diagram 1709, 警示铭牌和名称铭牌(发动机), with 1 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11289 | Spark plug warning nameplate | 11289-62020 |
| 11294 | Engine No. 2 warning plate | 11294-55010 · 11294-55020 |
| 11296 | Timing belt warning plate | 17791-15010 · 17791-55010 |
| 11296A | Engine maintenance information label | 11296-11280 · 11296-11310 · 11296-11330 · 11296-11360 · 11296-11380 |
| 15369 | Engine oil warning plate | 15369-54010 |
| 16793 | Fan warning nameplate | 16793-46010 · 16793-74010 |
| 17791 | Maintenance information label | 11296-55010 |
