Toyota COROLLA Exhaust Pipe — Figure 1702

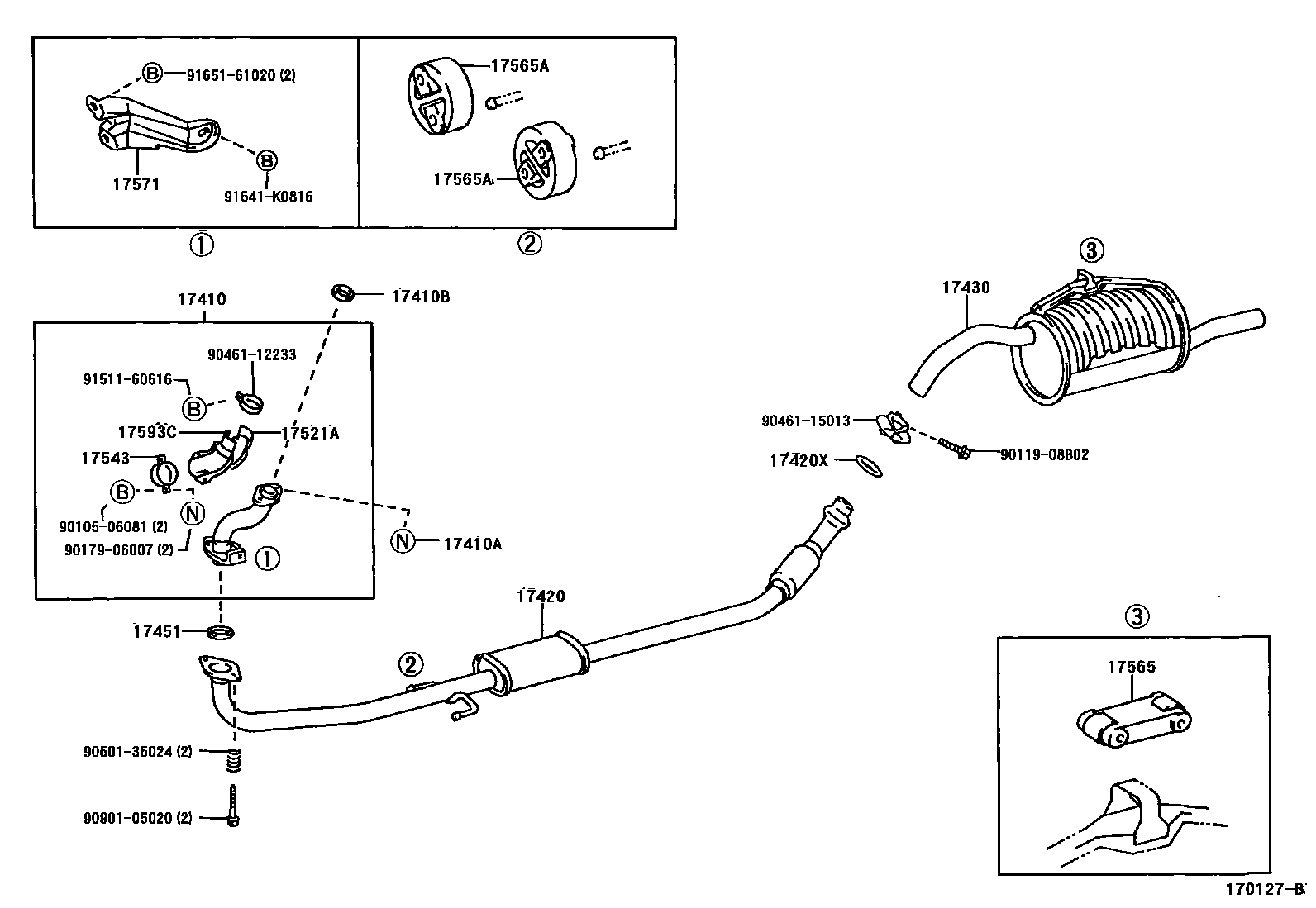

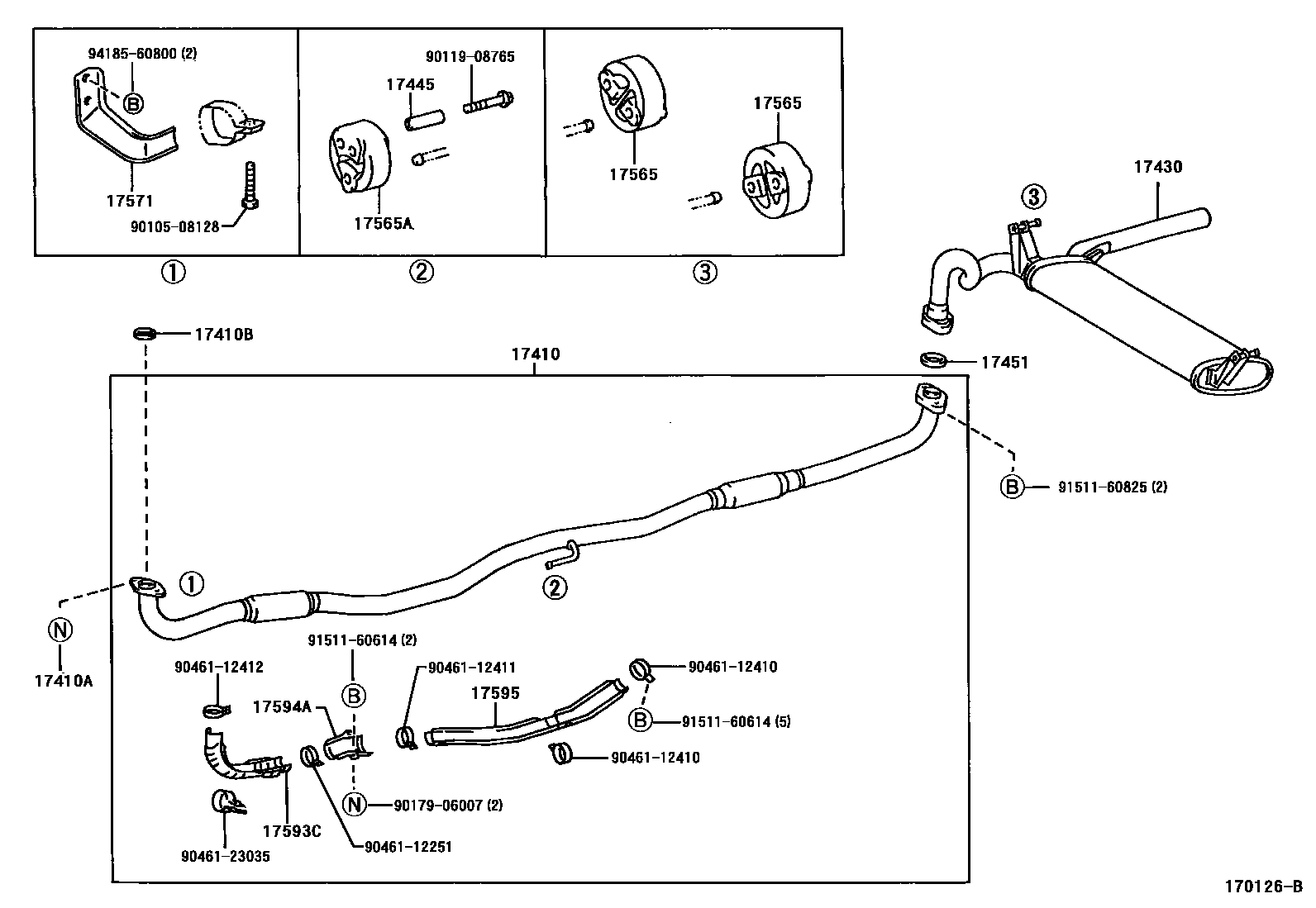

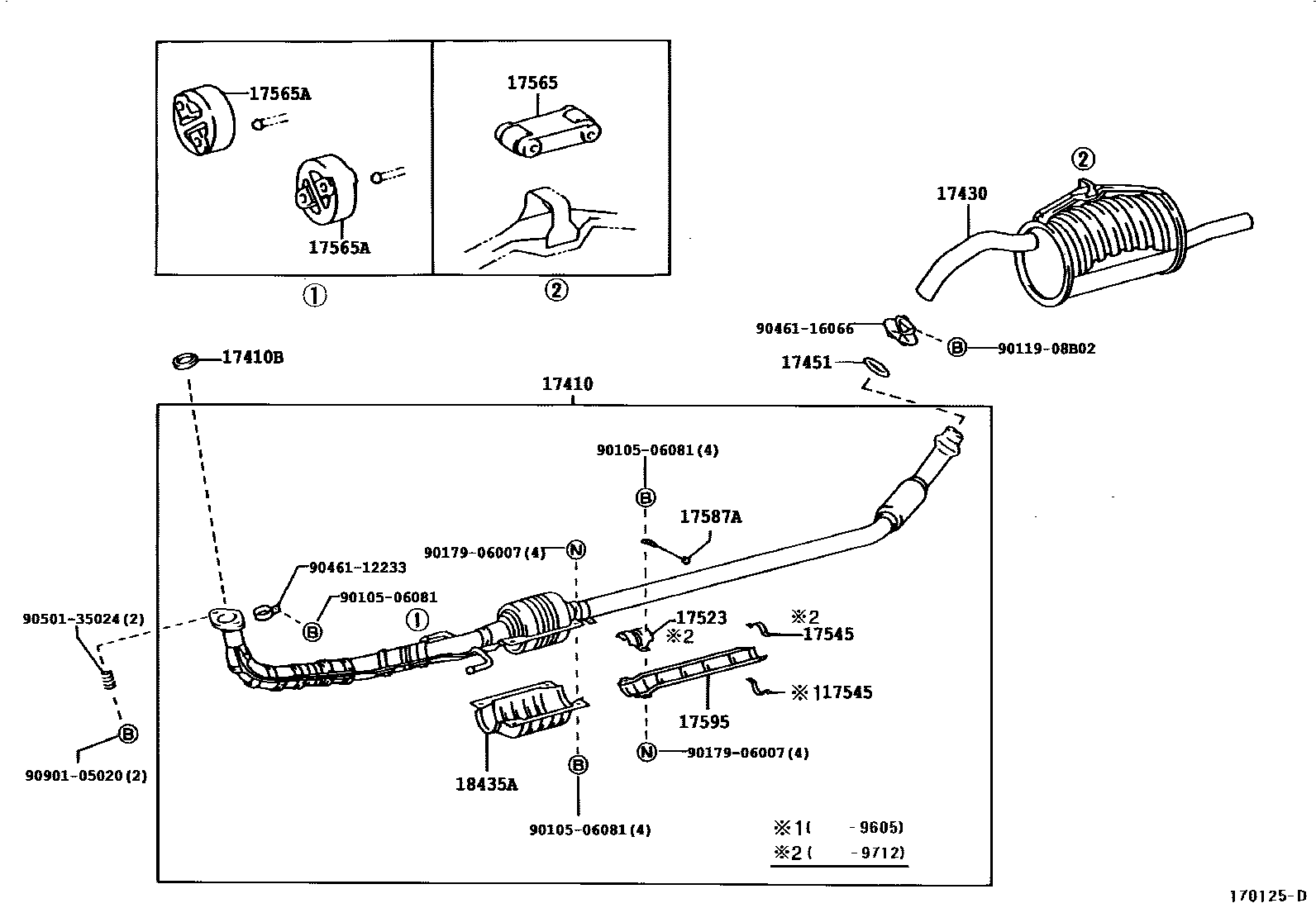

Toyota COROLLA EPC diagram 1702, Exhaust Pipe, with 3 images and 20 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17410 | Front exhaust pipe assembly | 17410-11720 · 17410-11730 · 17410-11740 · 17410-11750 · 17410-1B190 · 17410-1B200 · 17410-1B210 · 17410-1B240 · 17410-55080 |
| 17410A | Exhaust pipe fixing studs and nuts | 90179-10070 |
| 17410B | Exhaust pipe gasket | 17451-11010 · 90917-06039 · 90917-06061 · 90917-06080 |
| 17420 | Central exhaust pipe assembly | 17420-55030 |
| 17420X | Center exhaust pipe liner | 90917-06082 |
| 17430 | Exhaust tailpipe assembly | 17430-11720 · 17430-11740 · 17430-55070 |
| 17445 | Exhaust pipe collar | 17445-11050 |
| 17451 | Exhaust pipe gasket | 17451-11010 · 90917-06060 · 90917-06080 · 90917-06081 |
| 17521A | No. 1 upper exhaust pipe protection device | 17521-55050 |
| 17523 | No. 3 upper exhaust pipe protection device | 17523-11050 |
| 17543 | No. 3 exhaust pipe protection device stay | 17543-63010 |
| 17545 | No. 5 exhaust pipe protection device stay | 17543-11030 · 17545-15010 |
| 17565 | No. 5 exhaust pipe lifting lug | 17565-74290 · 17566-11150 |
| 17565A | No. 4 exhaust pipe lifting lug | 17561-74110 · 17565-11160 |
| 17571 | No. 1 exhaust pipe bracket | 17571-11210 · 17571-55050 |
| 17587A | Exhaust pipe hanger clamp | 17587-11010 |
| 17593C | No. 1 lower exhaust pipe protection device | 17593-11220 · 17593-55050 |
| 17594A | No. 2 lower exhaust pipe protection device | 17594-11170 · 17594-11180 |
| 17595 | No. 3 lower exhaust pipe protection device | 17505-11030 · 17595-11090 · 17595-11190 |
| 18435A | Integrated three-way catalytic converter protection device | 18435-11020 |
