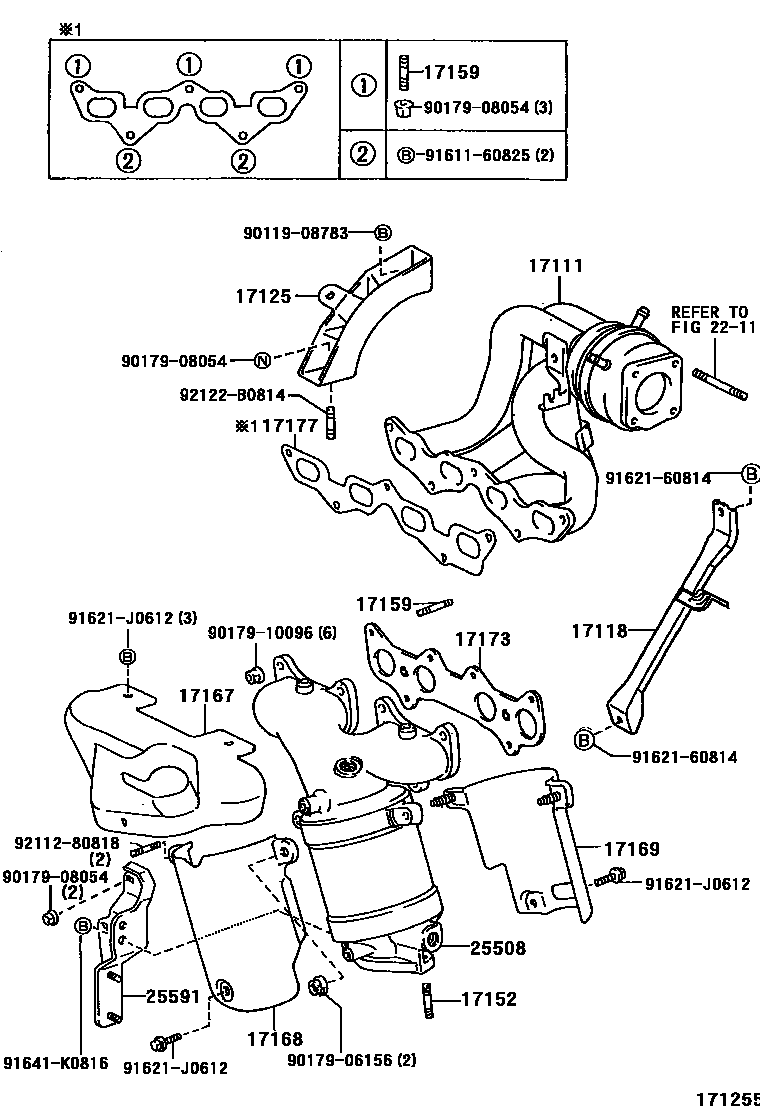

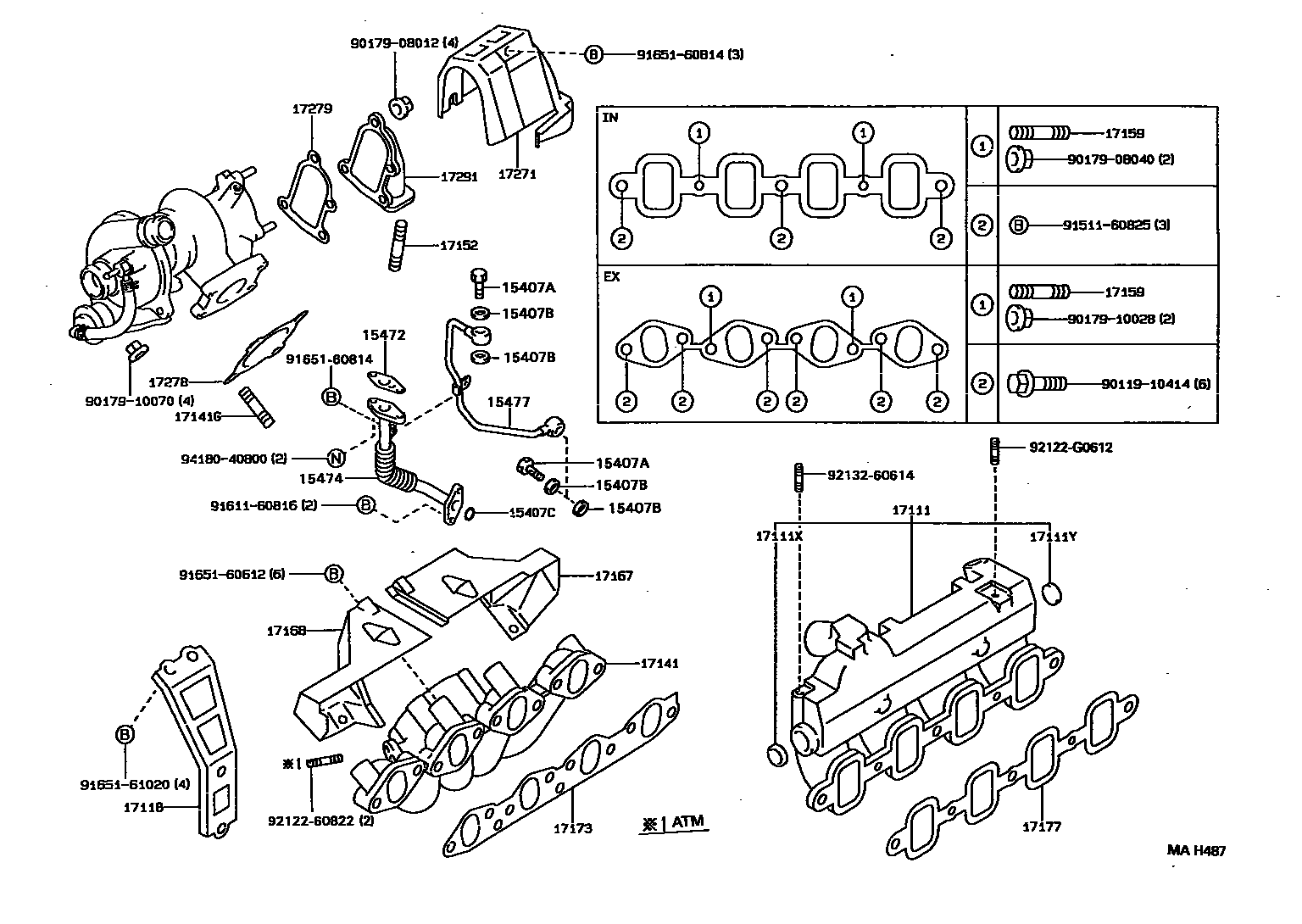

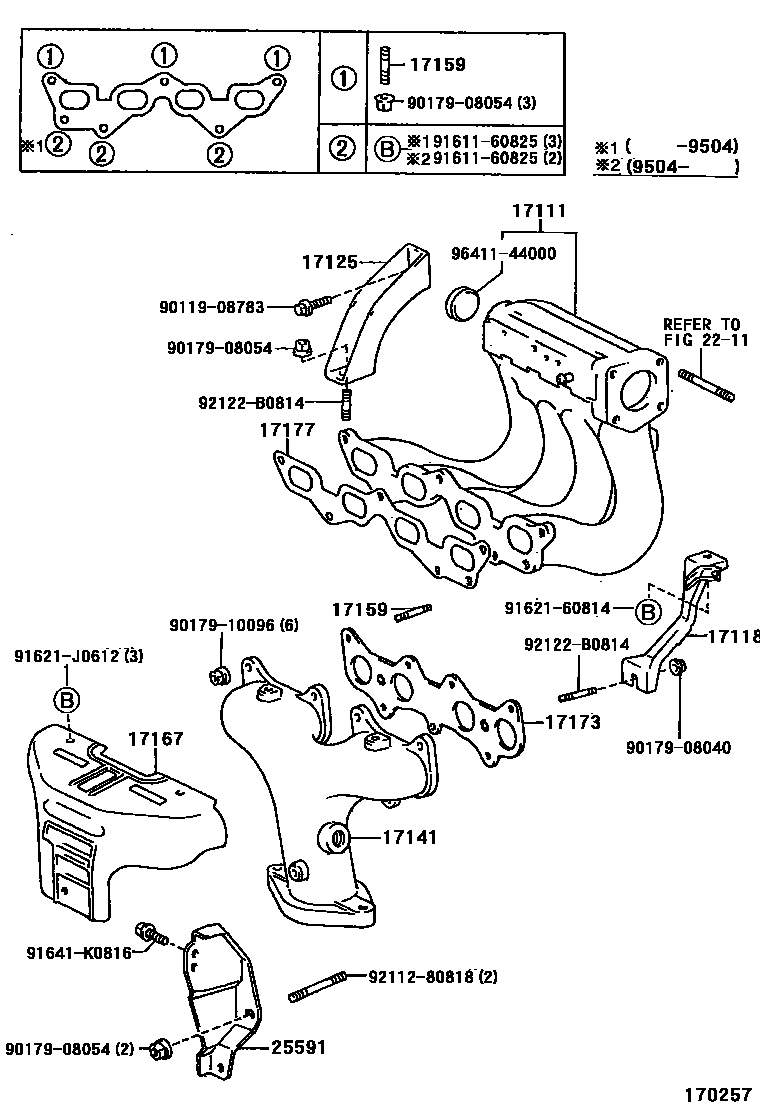

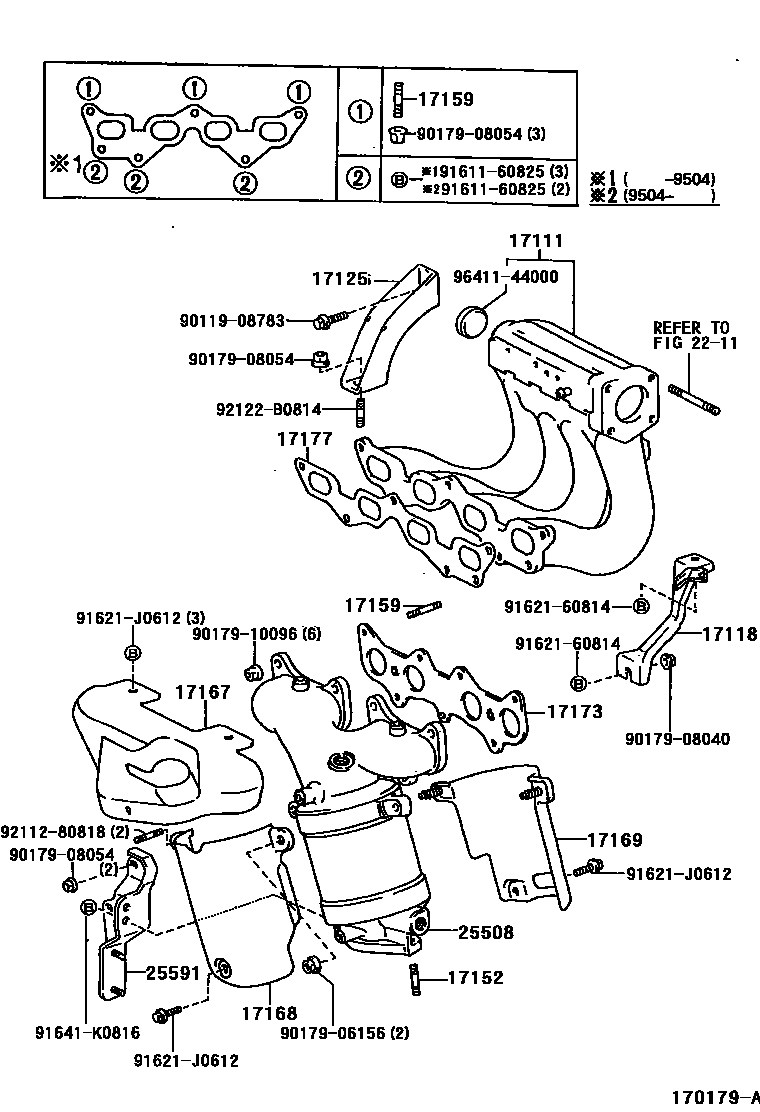

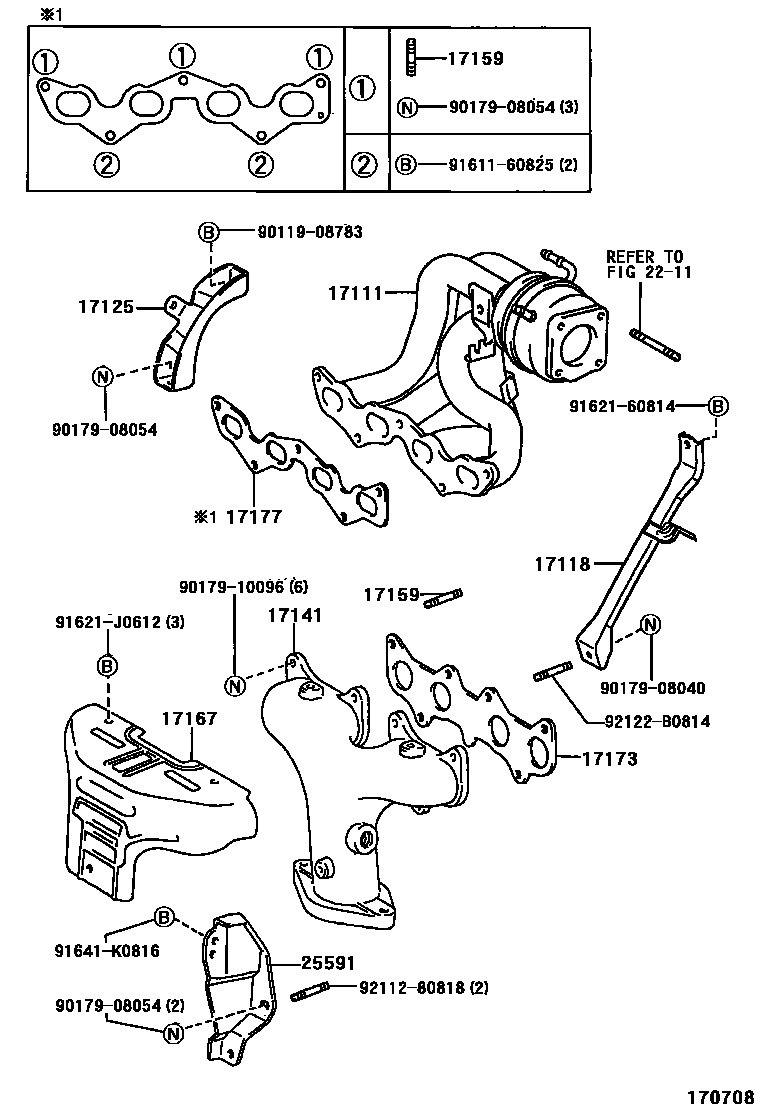

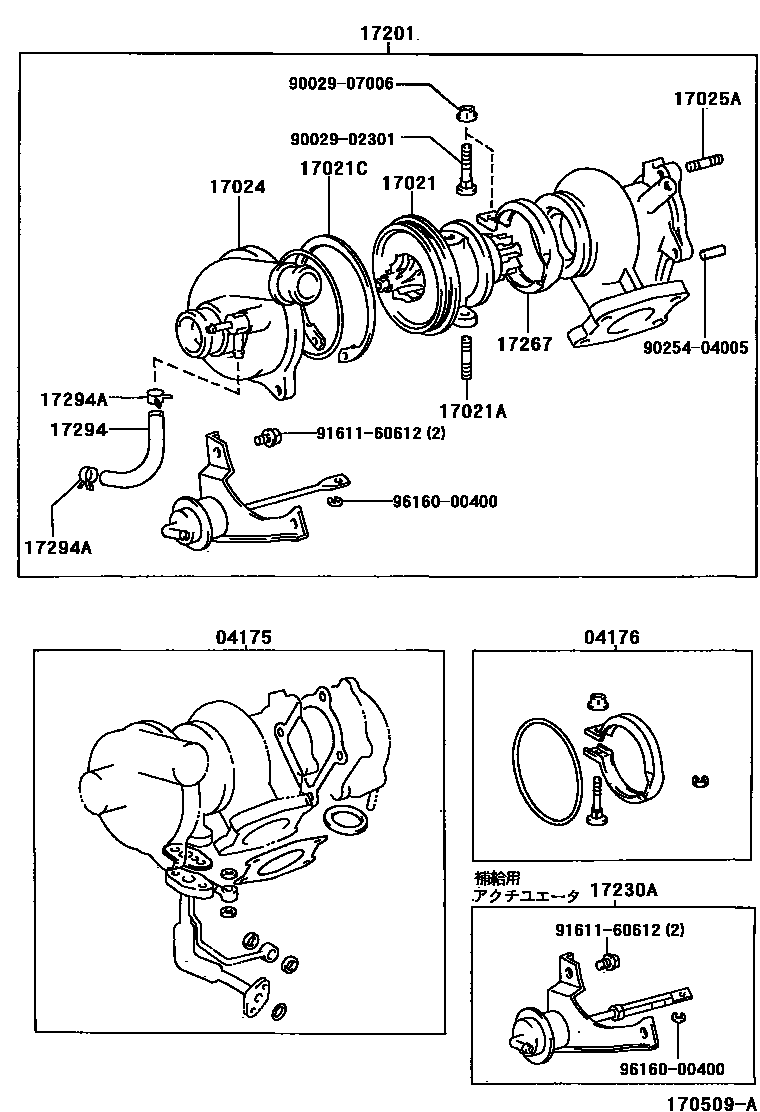

Toyota COROLLA Manifold — Figure 1701
Toyota COROLLA EPC diagram 1701, Manifold, with 6 images and 38 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04175 | Turbocharger gasket assembly | 04175-55030 |
| 04176 | Turbocharger seal assembly | 04176-55010 |
| 15407A | Connector bolt (for turbine oil inlet pipe) | 90401-10006 |
| 15407B | Gasket (for turbine oil inlet pipe) | 90430-10035 |
| 15407C | O-ring (for turbine oil pipe) | 90301-23007 |
| 15472 | No. 1 turbine oil outlet pipe gasket | 15472-55010 |
| 15474 | Turbine oil outlet pipe | 15474-55010 |
| 15477 | Turbine oil inlet pipe | 15477-55010 |
| 17021 | Bearing shell sub-assembly | 17021-55040 |
| 17021A | Stud bolts (for bearing housing) | 92112-60822 |
| 17021C | Hole snap ring (for bearing housing) | 90029-52004 |
| 17024 | Compressor housing sub-assembly | 17024-55040 · 17024-55050 |
| 17025A | Stud bolts (for turbine housing) | 90116-08200 |
| 17111 | Intake Manifold | 17101-11320 · 17101-11321 · 17101-11350 · 17101-11370 · 17101-11380 · 17101-55070 · 17101-55071 · 17101-55080 · 17101-55081 |
| 17111X | No. 1 sealing plug (for intake manifold) | 96411-42500 |
| 17111Y | No. 2 sealing plug (for intake manifold) | 96411-42800 |
| 17118 | Manifold stays | 17118-11260 · 17118-11270 · 17118-11290 · 17118-11300 · 17118-11340 · 17118-55010 |
| 17125 | No. 1 pressure tank stay | 17125-11050 · 17125-11060 |
| 17141 | exhaust manifold | 17141-11300 · 17141-55030 · 17141-55040 |
| 17141G | Stud bolts (for turbocharger) | 90126-10003 |
| 17152 | Studs (for manifold to exhaust) | 90116-10017 · 90126-10003 |
| 17159 | Studs (for manifold to cylinder head) | 90116-10196 · 92112-61040 · 92122-60822 · 92122-61025 · 92132-60825 |
| 17167 | Exhaust manifold No. 1 heat shield | 17167-11300 · 17167-11310 · 17167-55010 |
| 17168 | Exhaust manifold No.2 insulation pad | 17168-11060 · 17168-55030 |
| 17169 | Exhaust manifold No. 3 heat shield | 17169-11020 |
| 17173 | Gasket (exhaust manifold to cylinder head) | 17173-11040 · 17173-11050 · 17173-55010 |
| 17177 | No. 1 gasket (intake manifold to cylinder head) | 17177-11021 · 17177-11070 · 17177-55012 |
| 17201 | Turbocharger sub-assembly | 17201-55040 · 17201-55050 |
| 17230A | Compensation actuator assembly with bracket | 17230-59125 |
| 17267 | turbine coupling | 17267-55030 |
| 17271 | No. 1 turbine vibration isolation pad | 17271-55011 |
| 17278 | Gasket (turbo to exhaust manifold) | 17278-55010 |
| 17279 | Turbine outlet elbow gasket | 17279-55011 |
| 17291 | Turbine oil outlet elbow | 17291-55010 |
| 17294 | Actuator hose | 90029-45001 |
| 17294A | Clamp (for actuator hose) | 96132-30600 |
| 25508 | Manifold three-way catalytic converter sub-assembly | 25051-11020 · 25051-11021 |
| 25591 | Manifold bracket | 25591-11070 · 25591-11080 |
