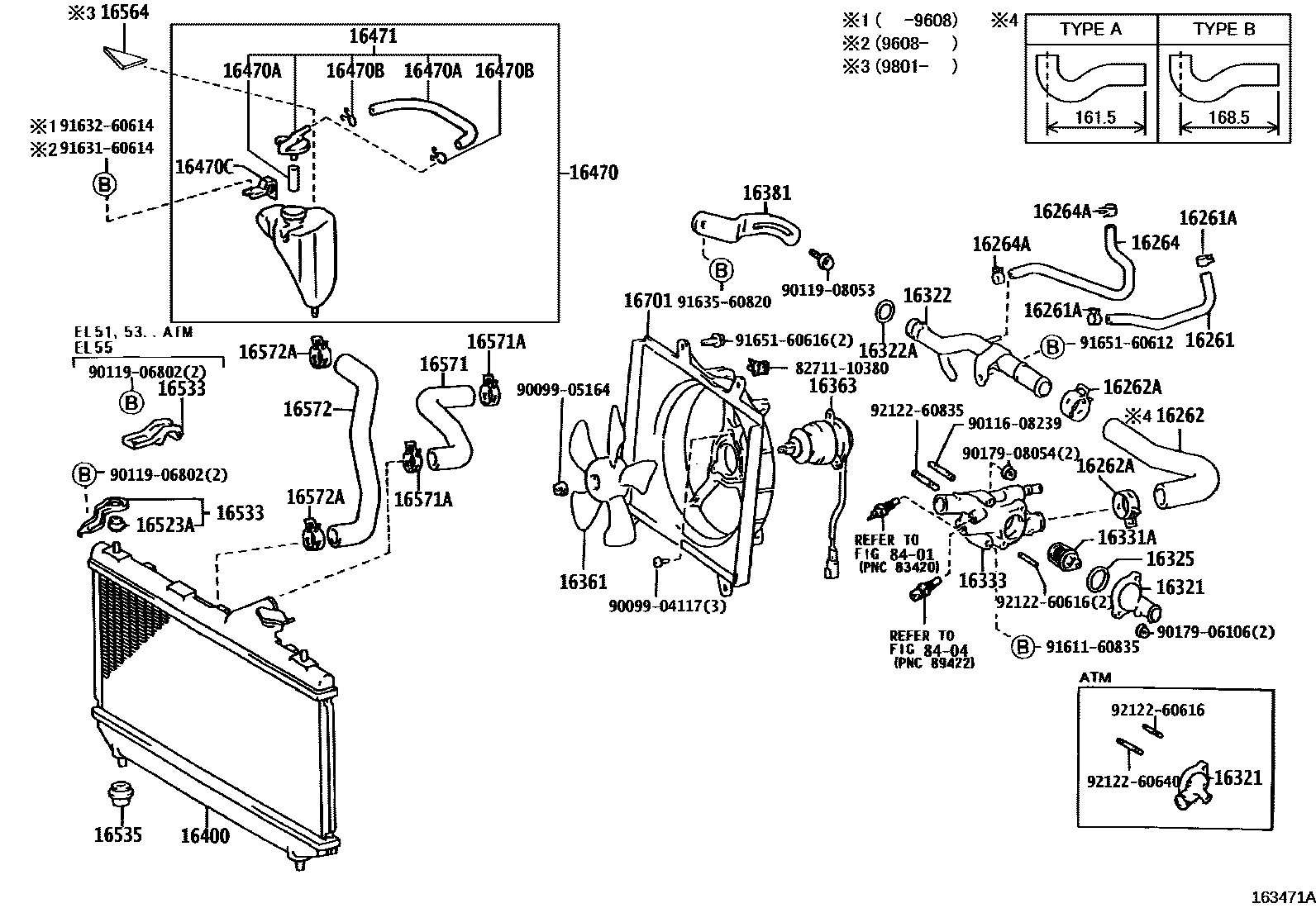

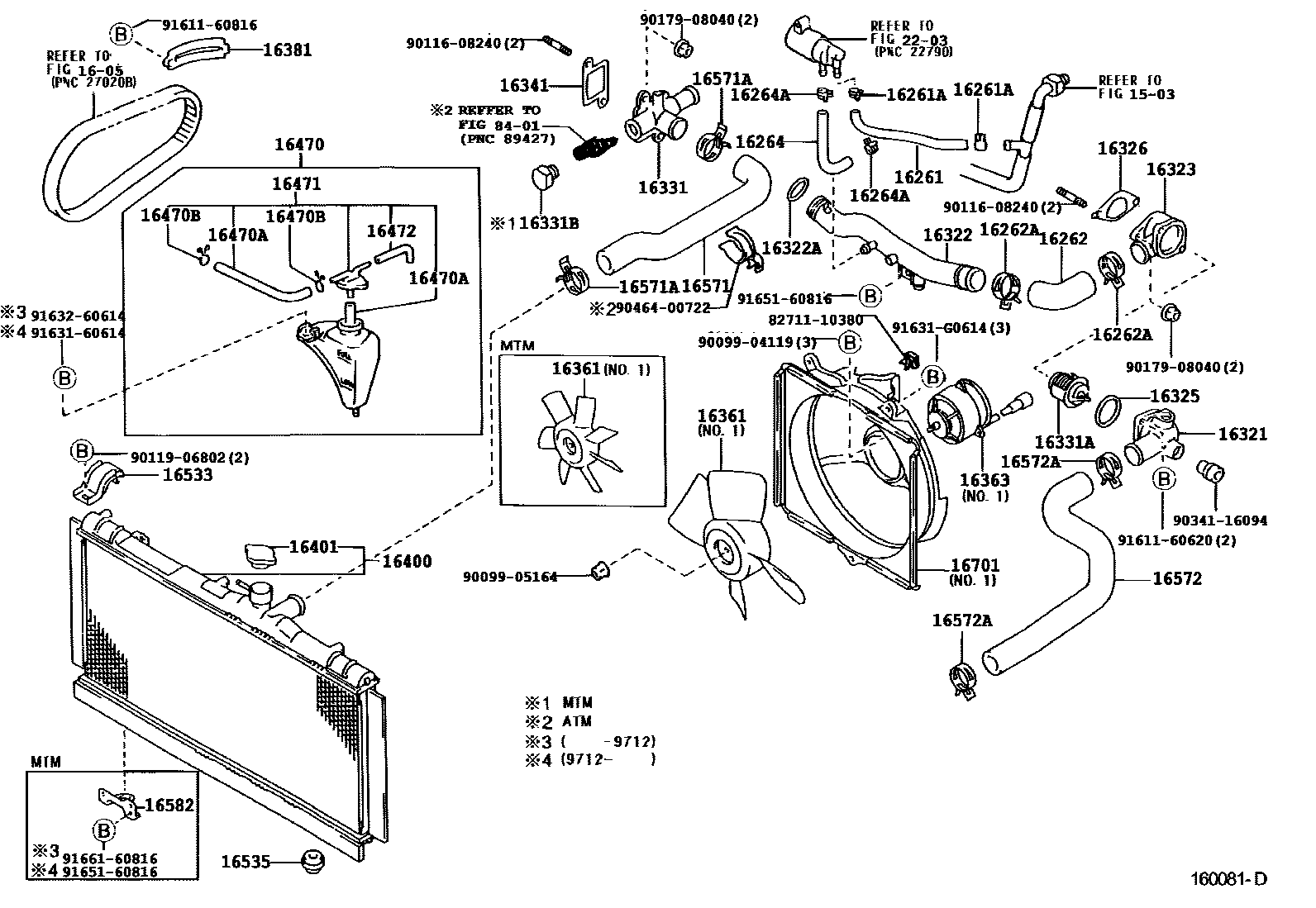

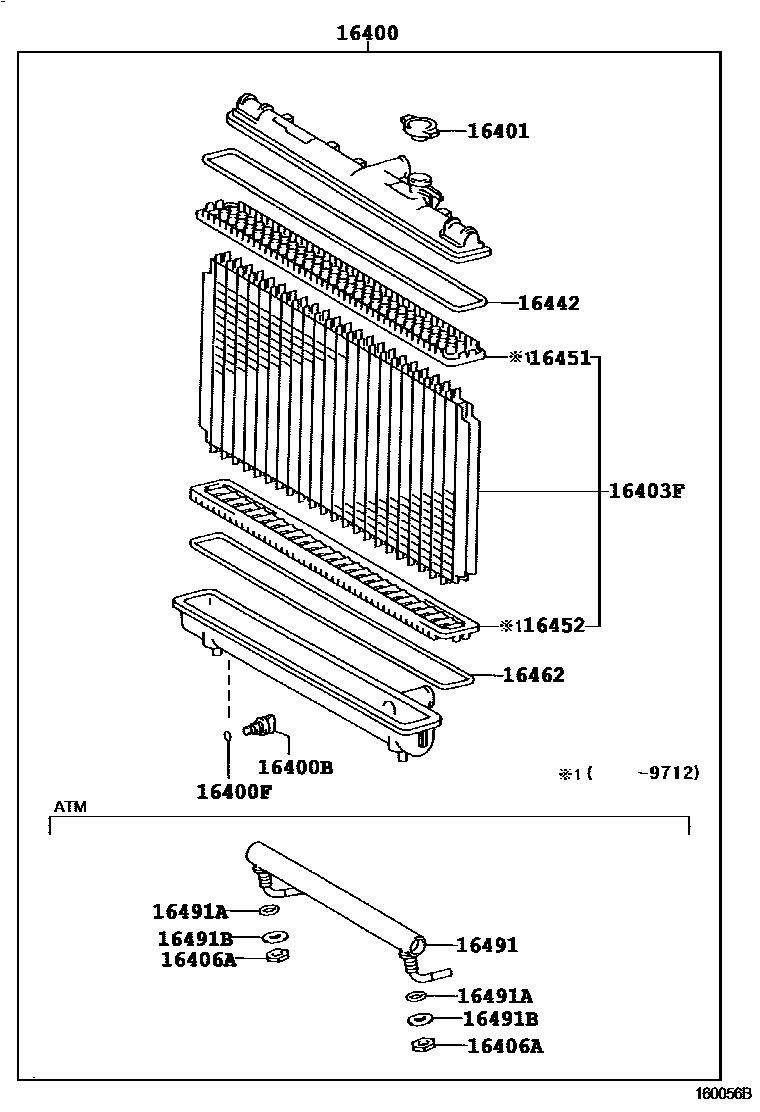

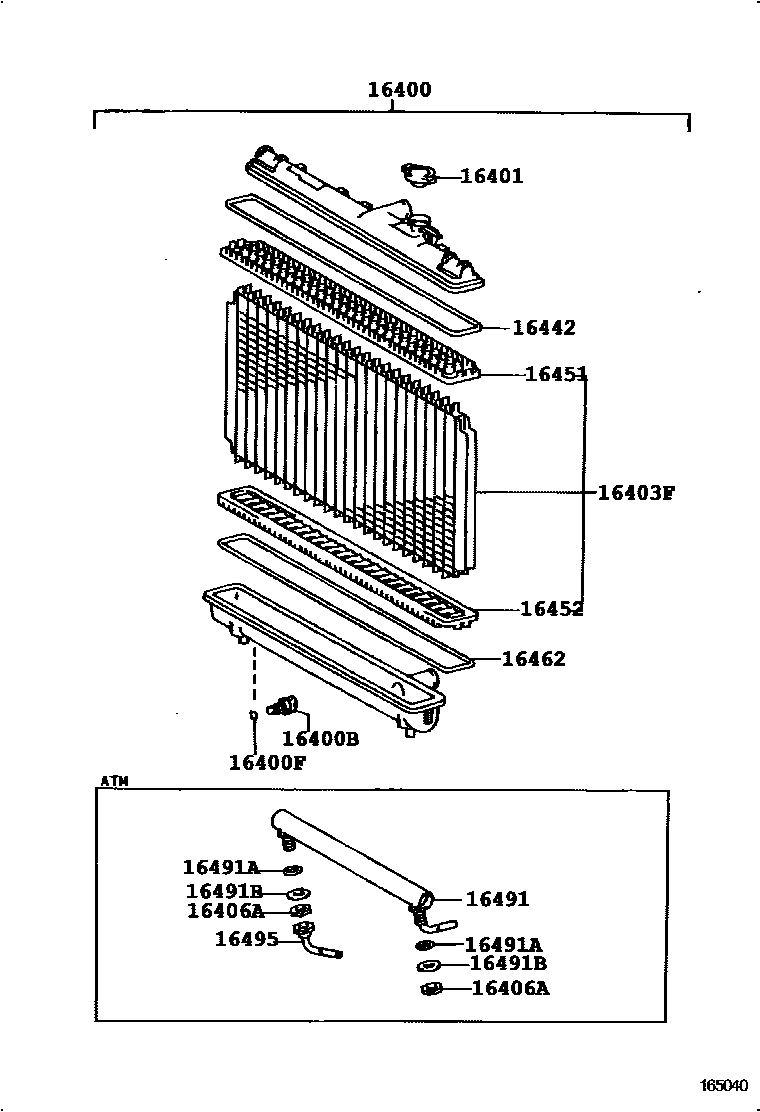

Toyota COROLLA RADIATOR & WATER OUTLET — Figure 1603
Toyota COROLLA EPC diagram 1603, RADIATOR & WATER OUTLET, with 5 images and 53 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 16261 | HOSE, WATER BY-PASS | 16261-55040 · 16261-55060 |
| 16261A | CLAMP OR CLIP, WATER BY-PASS HOSE | 90467-11009 · 90467-15022 |
| 16262 | water inlet hose | 16262-10010 · 16262-10011 · 16262-10020 · 16262-10022 · 16262-10030 · 16262-10040 · 16262-55010 |
| 16262A | Clamp (for water inlet hose) | 90467-34003 · 90467-37001 |
| 16264 | HOSE, WATER BY-PASS, NO.2 | 16264-11080 · 16264-11090 · 16264-55010 |
| 16264A | CLAMP OR CLIP, WATER BY-PASS HOSE NO.2 | 90467-11009 · 90467-15022 |
| 16321 | water inlet | 16321-10011 · 16321-11011 · 16321-55010 |
| 16322 | PIPE, WATER INLET | 16322-11162 · 16322-55110 · 16322-55120 |
| 16322A | O-RING, WATER INLET | 90301-31008 · 96711-35028 · 96761-35028 |
| 16323 | HOUSING, WATER INLET | 16032-55010 |
| 16325 | GASKET, WATER INLET HOUSING, NO.1 | 16325-63011 |
| 16326 | GASKET, WATER INLET HOUSING, NO.2 | 16325-55011 |
| 16331 | Water outlet | 16304-55020 |
| 16331A | thermostat | 90916-03046 |
| 16331B | Screw plug (for water outlet) | 90345-53001 |
| 16333 | Water outlet shell | 16333-11120 · 16333-11121 |
| 16341 | GASKET, WATER OUTLET | 16341-55011 |
| 16361 | Fan | 16361-11020 · 16361-55010 · 16361-55040 · 16361-55050 · 16361-74070 |
| 16363 | cooling fan motor | 16363-11070 · 16363-11080 · 16363-55050 · 16363-74060 |
| 16368 | Cooling fan motor bracket | 16368-55030 · 16368-55040 |
| 16381 | Fan belt adjustment lever | 16381-11021 · 16381-11030 · 16381-55010 |
| 16400 | Radiator assembly | 16400-11590 · 16400-11591 · 16400-11640 · 16400-11720 · 16400-11721 · 16400-11820 · 16400-55110 · 16400-55120 · 16400-55121 · 16400-55160 · 16400-55170 |
| 16400B | Radiator drain switch screw plug | 23322-54010 |
| 16400F | Seal (for radiator drain switch) | 16492-21050 · 96711-19007 |
| 16401 | Radiator cover sub-assembly | 16401-62100 · 16401-72090 |
| 16403F | Radiator core sub-assembly | 16403-11360 · 16403-11380 · 16403-11591 · 16403-11720 · 16403-11721 · 16403-11820 · 16403-16740 · 16403-55110 · 16403-55160 · 16403-64640 |
| 16406A | Bracket (for transmission oil cooler) | 16406-74520 |
| 16442 | O-ring (for radiator tank) | 16442-11380 · 16462-42240 · 16462-62050 |
| 16451 | Radiator core upper plate | 16451-11380 · 16452-42240 · 16452-62050 |
| 16452 | Radiator core lower plate | 16452-11380 · 16452-42240 · 16452-62050 |
| 16462 | O-ring (for radiator lower tank) | 16462-42240 · 16462-62050 |
| 16470 | Radiator reservoir assembly | 16470-11090 · 16470-11130 · 16470-55050 |
| 16470B | Clip or clip (for radiator reservoir hose) | 90467-11085 |
| 16470C | Bracket (for radiator reservoir) | 16611-11050 |
| 16471 | Liquid storage tank cover sub-assembly | 16405-11090 · 16405-55071 |
| 16472 | Breather hose | 85338-68010 |
| 16491 | Oil cooler (for ATM) | 16491-16310 · 16491-55100 |
| 16491A | O-ring (for automatic transmission oil cooler) | 16492-62060 |
| 16491B | Flat Washer (for automatic transmission oil cooler) | 16493-74520 |
| 16495 | Oil line nut (for automatic transmission oil cooler) | 16495-70420 |
| 16523A | Radiator bracket cushion | 16523-11050 |
| 16533 | Radiator upper bracket | 16505-11160 · 16533-11050 · 16533-55050 |
| 16535 | Radiator lower support | 16535-55040 · 90480-23018 · 90916-04004 · 90916-04005 |
| 16564 | Radiator reservoir cushion | 16564-11010 |
| 16571 | Radiator water inlet hose | 16571-11240 · 16571-55050 |
| 16571A | Hose clamp or clip (for radiator water inlet) | 90467-31003 · 90467-34003 |
| 16572 | Radiator outlet hose | 16572-11250 · 16572-11260 · 16572-55070 · 16572-55090 |
| 16572A | Hose clamp or clip (for radiator outlet No. 1) | 90467-31003 · 90467-34003 |
| 16582 | Radiator bracket No. 1 | 16582-55010 |
| 16701 | Fan cover sub-assembly | 16711-11250 · 16711-11260 · 16711-55111 · 16711-55120 · 16711-55130 |
| 16715 | fan cover bracket | 16715-55030 · 16715-55040 · 16715-55050 |
| 16715A | No. 2 fan cover bracket | 88688-16850 |
| 88467G | Rubber bushing | 88467-30270 |
