Toyota COROLLA Water Pump — Figure 1601

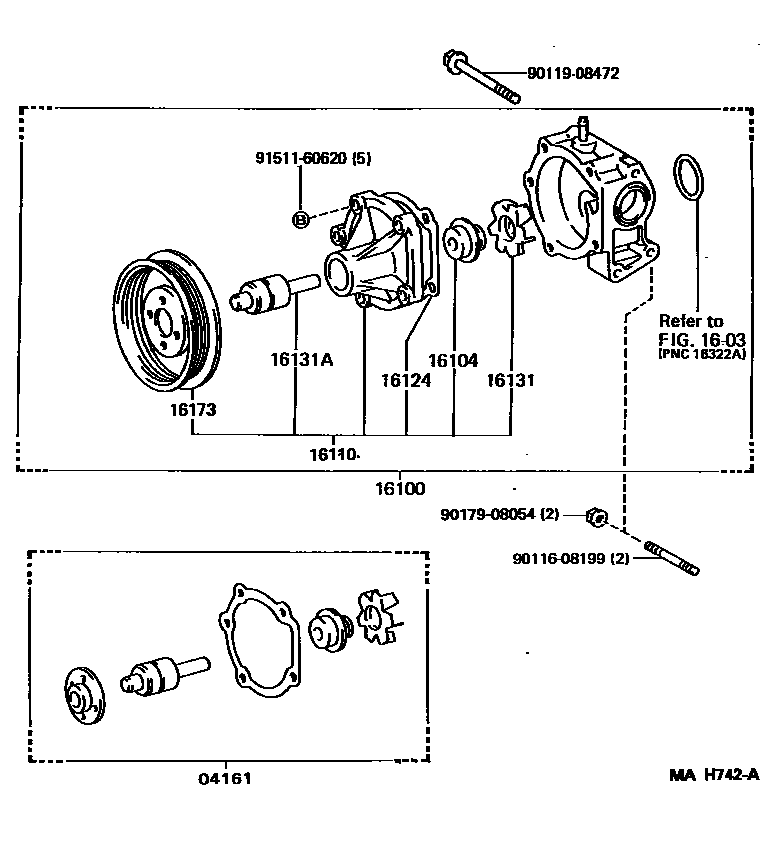

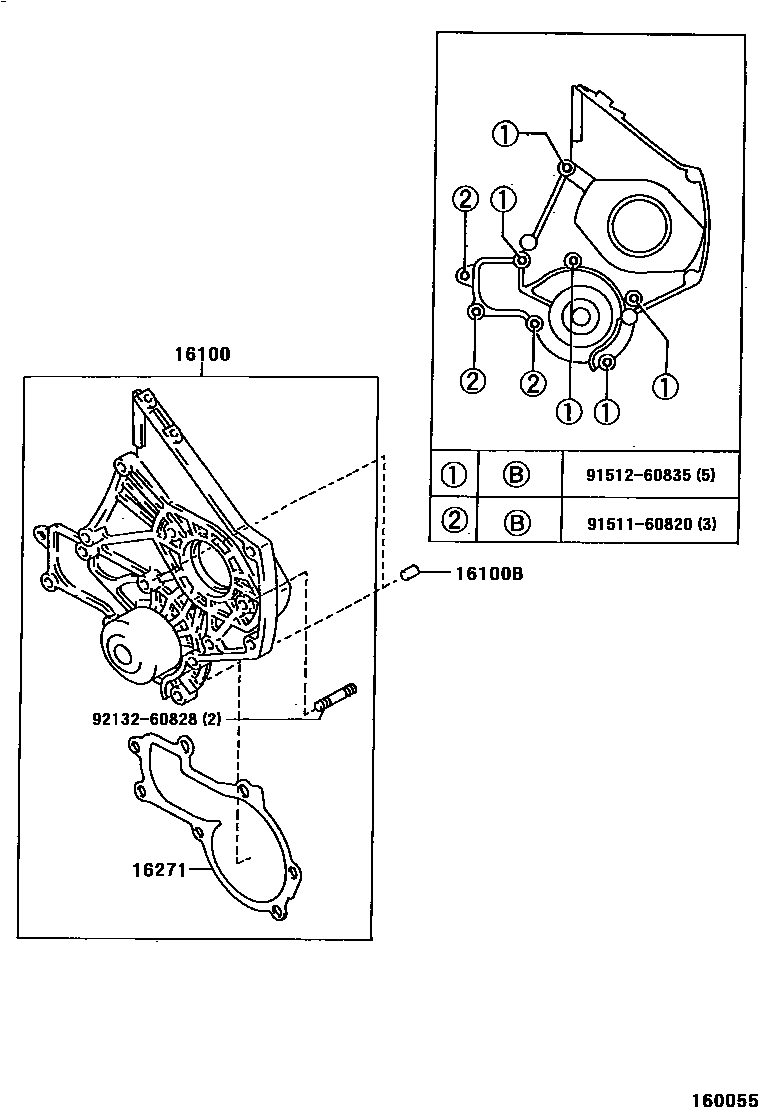

Toyota COROLLA EPC diagram 1601, Water Pump, with 2 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04161 | Water pump components | 04161-10022 · 04161-10023 |
| 16100 | Engine water pump assembly | 16100-19226 · 16100-59235 |
| 16100B | Ring pin (for water pump assembly) | 90253-11021 |
| 16104 | Water pump seal components | 16104-16040 · 16104-46060 · 16104-74010 |
| 16110 | Water pump assembly without coupling | 16110-19106 · 16110-19107 |
| 16124 | water pump cover gasket | 16124-10013 |
| 16131 | water pump rotor | 16131-10013 · 16131-15080 |
| 16131A | water pump bearings | 90029-36809 · 90029-36850 |
| 16173 | water pump pulley | 16173-10013 |
| 16271 | water pump gasket | 16271-55010 |
