Toyota COROLLA Engine Oil Cooler — Figure 1503

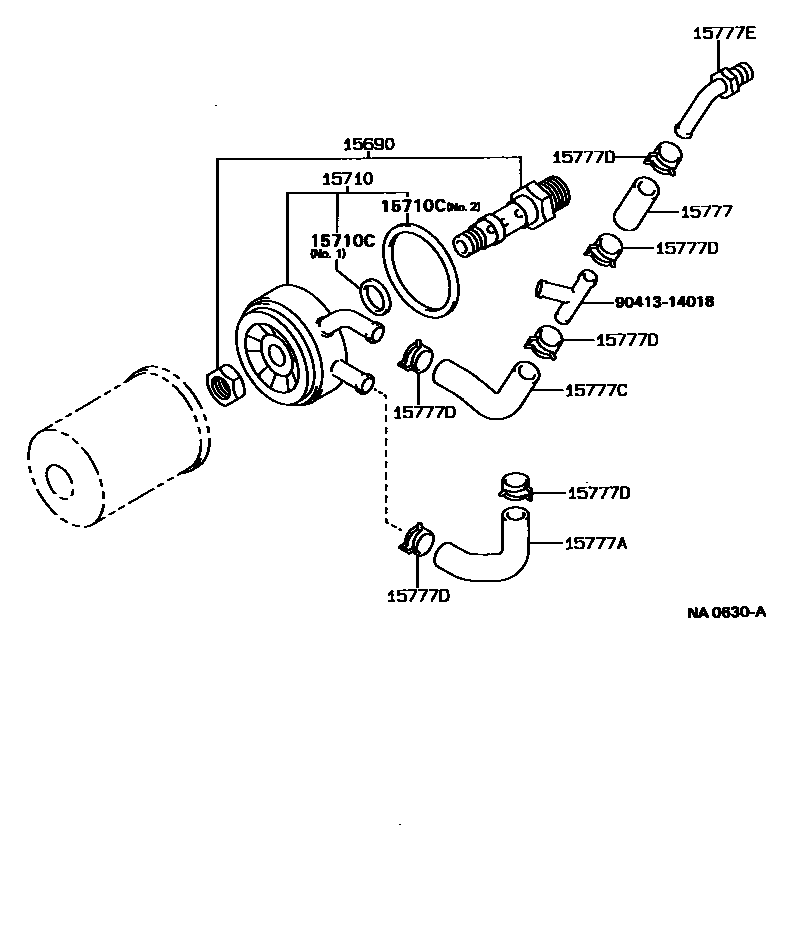

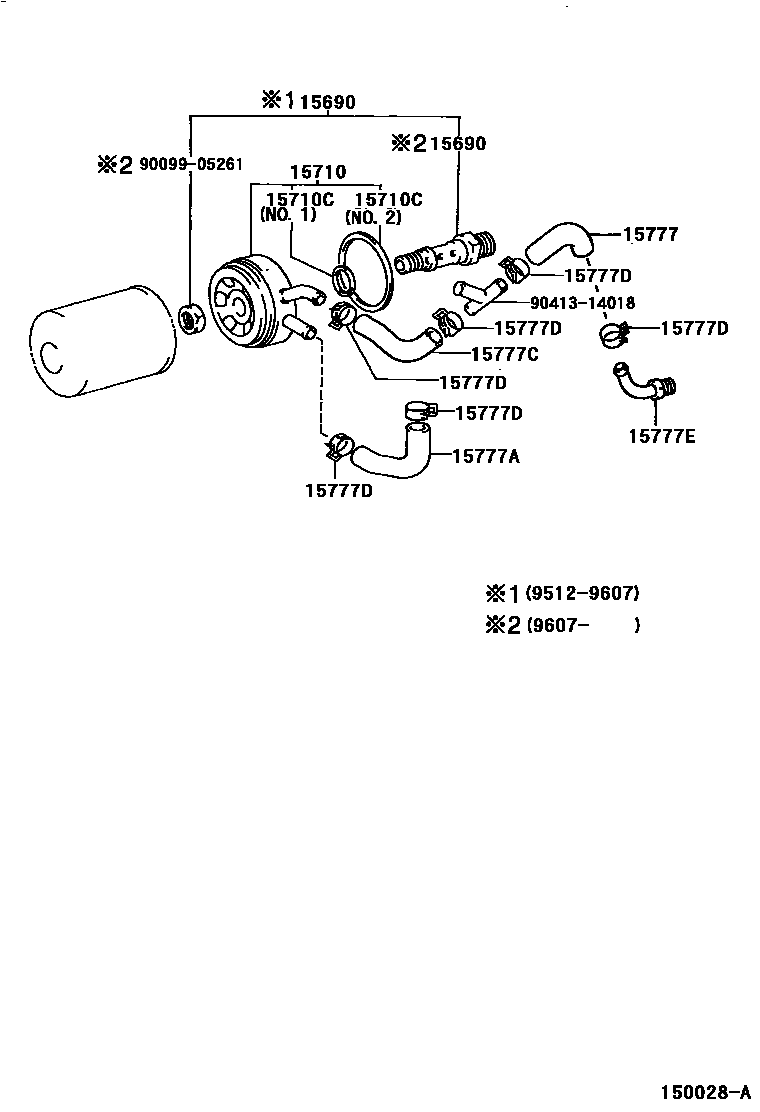

Toyota COROLLA EPC diagram 1503, Engine Oil Cooler, with 2 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 15690 | Oil cooler pressure reducing valve assembly | 15690-55020 · 15690-55030 |
| 15710 | Oil cooler assembly | 15710-55020 |
| 15710C | Gasket (for oil cooler) | 90301-24006 · 90301-61003 · 90301-61004 |
| 15777 | oil cooler hose | 15777-55020 · 15777-55030 |
| 15777A | oil cooler hose | 15778-55010 |
| 15777C | oil cooler hose | 15779-55010 · 15779-55020 |
| 15777D | Hose clamp or clip (for oil cooler hose) | 90467-20005 |
| 15777E | Connector | 90404-53070 · 90404-53073 |
