Toyota COROLLA Engine Mounting — Figure 1107

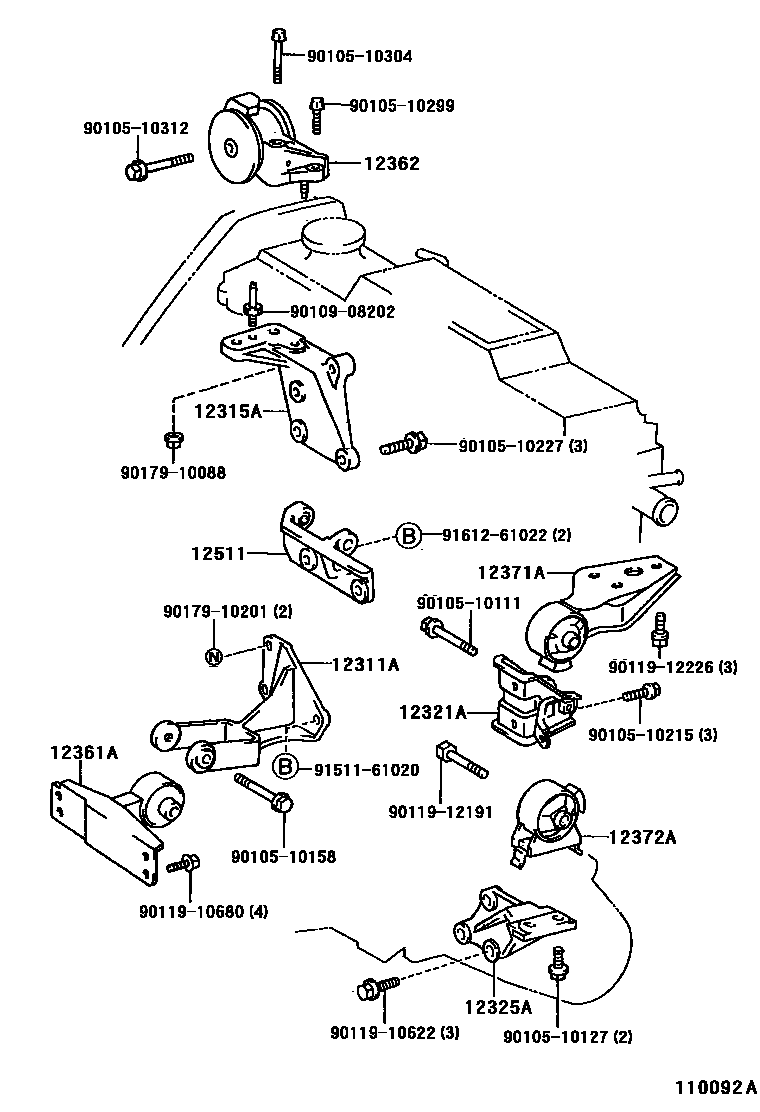

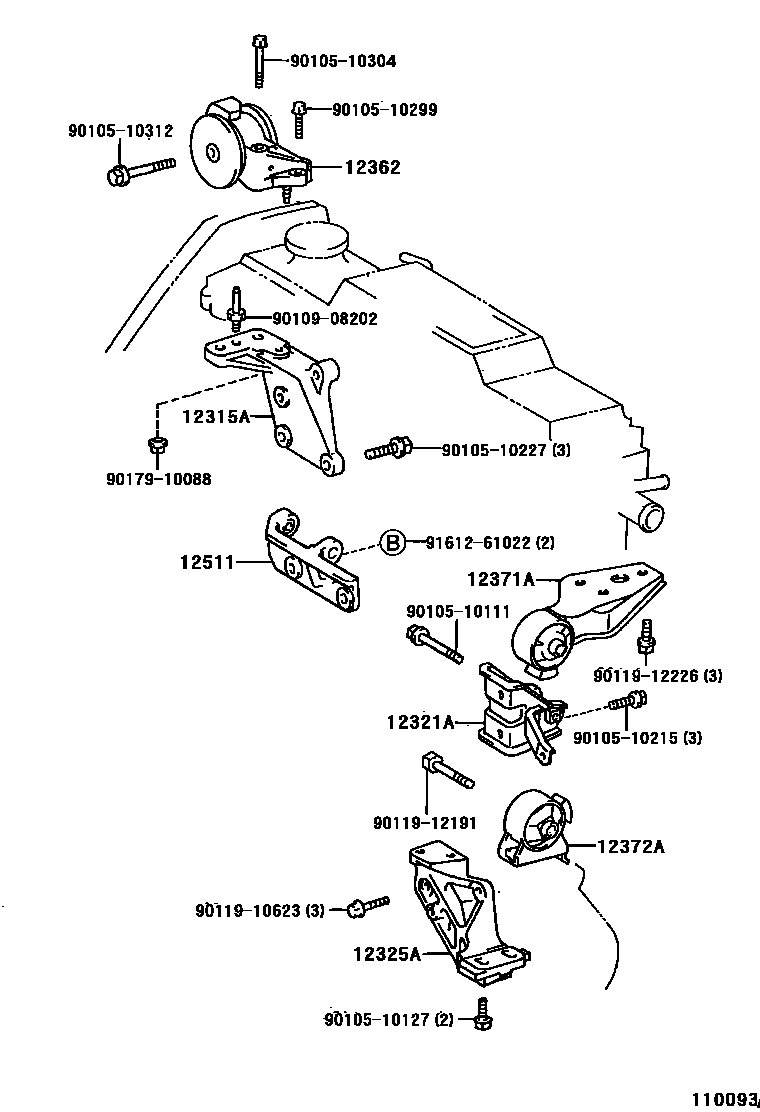

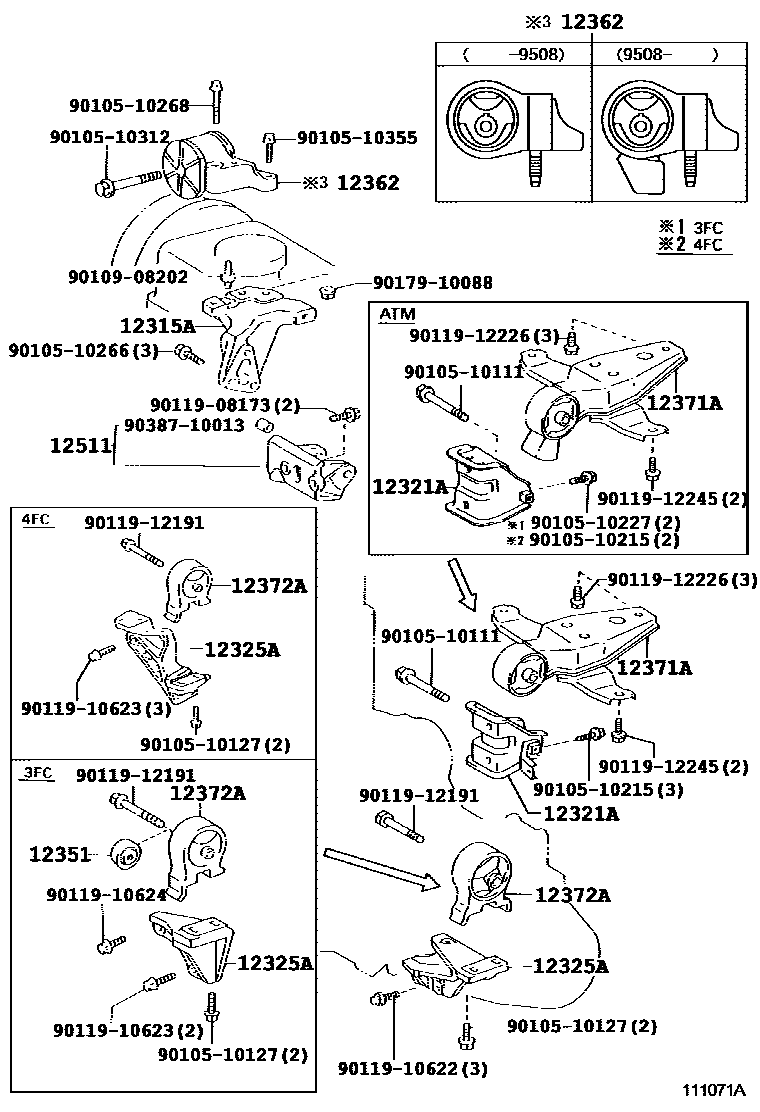

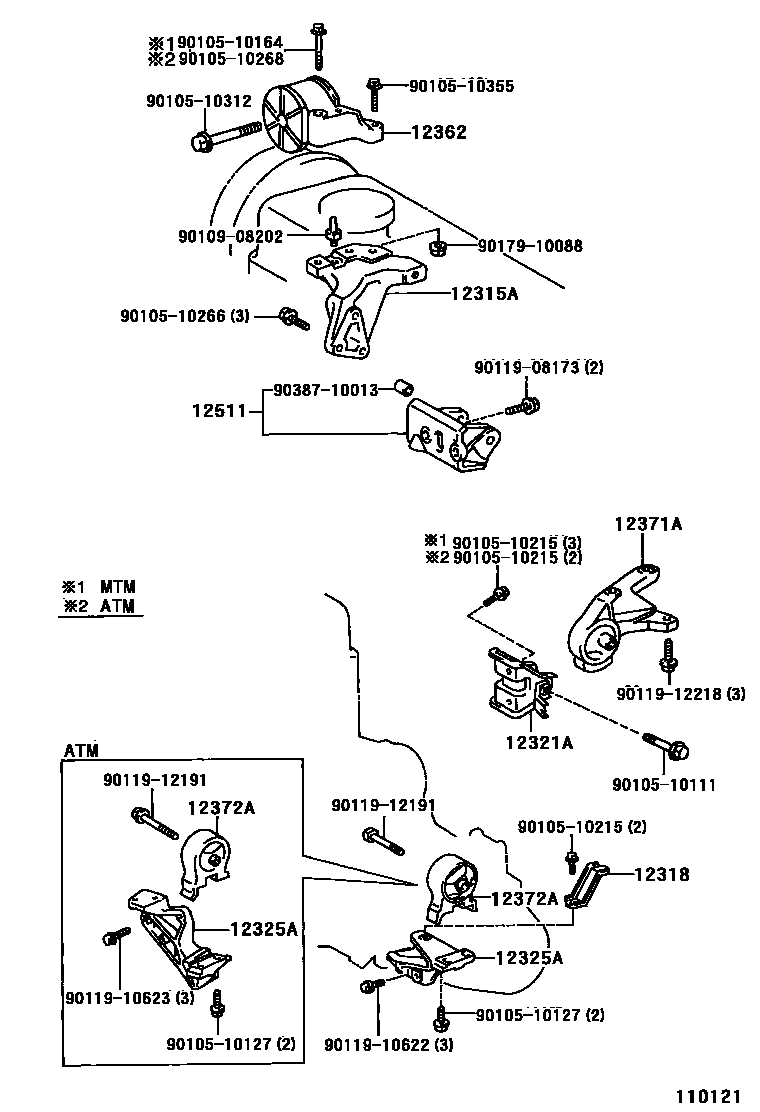

Toyota COROLLA EPC diagram 1107, Engine Mounting, with 4 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 12311A | Engine front mounting bracket (for transverse engine) | 12311-55020 |
| 12315A | Engine right side mounting bracket (for transversely mounted engine) | 12315-11040 · 12315-55031 |
| 12318 | Engine left mounting bracket | 12318-11030 |
| 12321A | Rear engine mounting bracket (for transverse engine) | 12303-11050 · 12303-11051 · 12303-11052 · 12303-11090 · 12303-55040 · 12303-55041 · 12303-55042 · 12321-11100 · 12321-11101 · 12321-11150 · 12321-11160 · 12321-11260 · 12321-55051 |
| 12325A | Engine left side mounting bracket (for transversely mounted engine) | 12325-11020 · 12325-11030 · 12325-11070 · 12325-11090 · 12325-11100 · 12325-55010 |
| 12351 | engine mount shock absorber | 12351-11030 |
| 12361A | Engine front mounting vibration isolation pad (for transversely mounted engine) | 12361-55050 |
| 12362 | Engine right side mounting vibration isolation pad (for transversely mounted engine) | 12362-11140 · 12362-11150 · 12362-11160 · 12362-11300 · 12362-55040 |
| 12371A | Engine rear mount vibration isolation pad | 12371-11390 · 12371-11400 · 12371-11490 · 12371-11491 · 12371-11500 · 12371-11510 · 12371-55070 · 12371-55080 |
| 12372A | Engine left-side mounting vibration isolation pad (for transversely mounted engines) | 12372-11170 · 12372-11180 · 12372-11190 · 12372-11210 · 12372-11290 · 12372-55070 · 12372-55080 |
| 12511 | No. 1 generator bracket | 12511-11020 · 12511-55010 |
