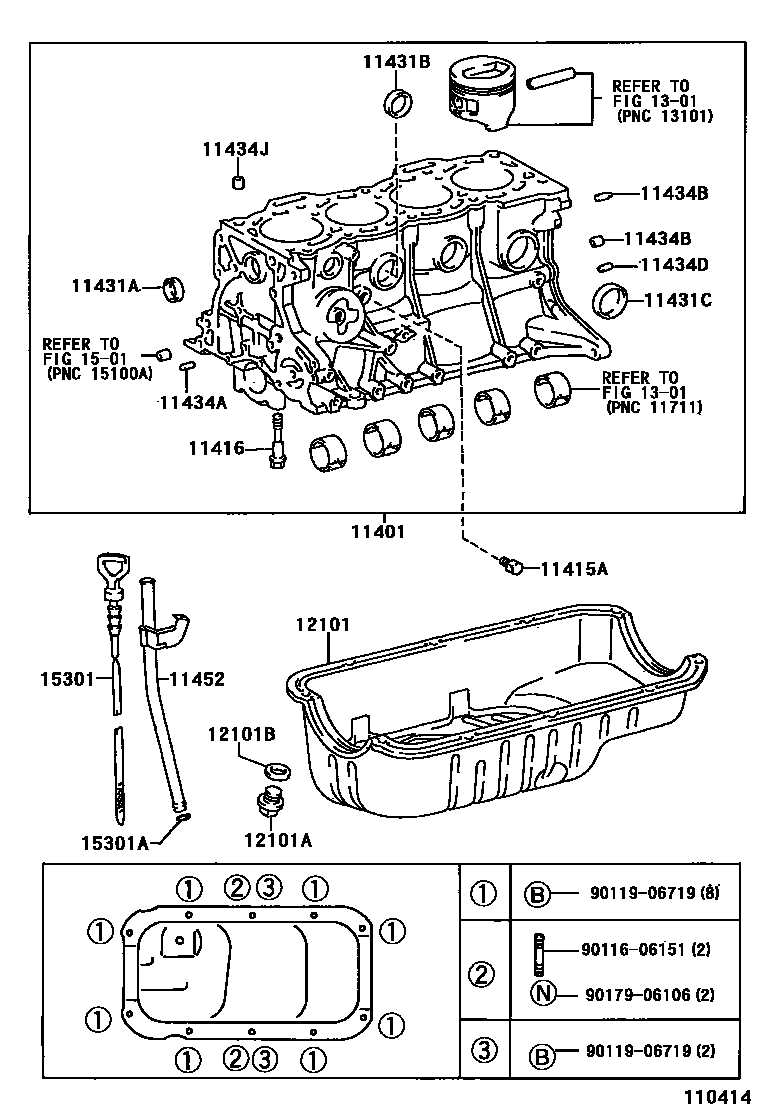

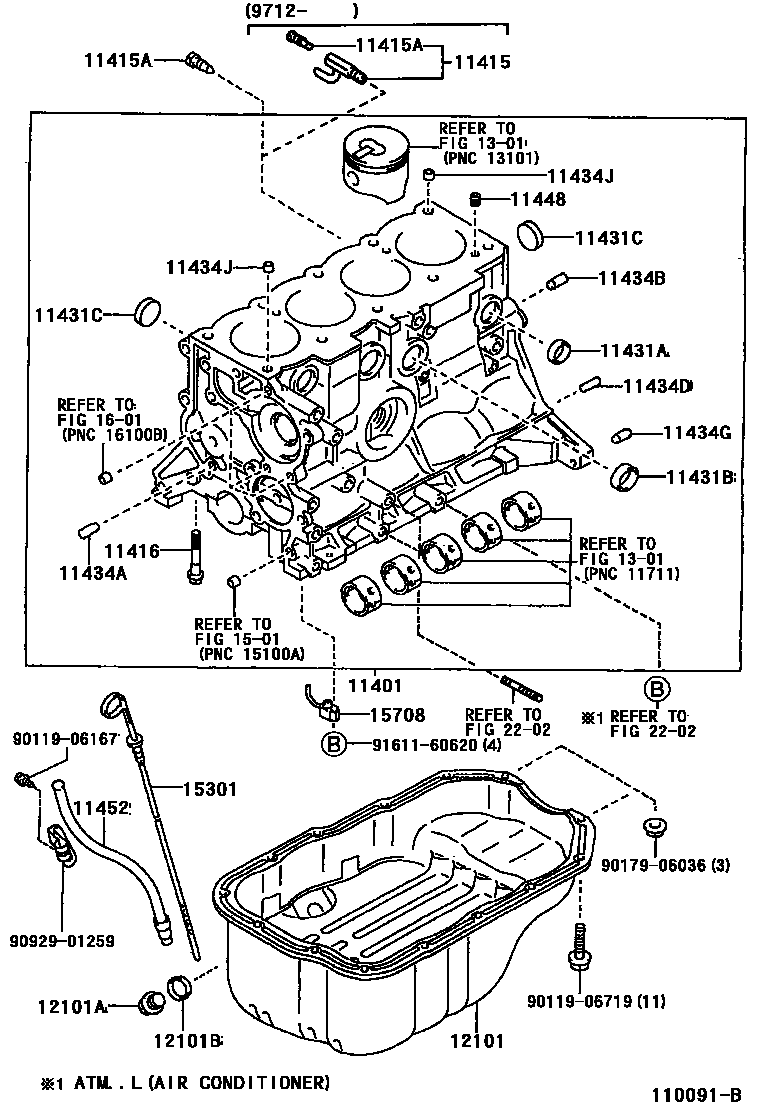

Toyota COROLLA Cylinder Block — Figure 1105
Toyota COROLLA EPC diagram 1105, Cylinder Block, with 2 images and 20 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11401 | Cylinder block sub-assembly | 11401-19598 · 11401-19599 · 11401-19875 · 11401-19876 · 11401-19877 · 11401-59329 · 11401-59685 · 11401-80003 |
| 11415 | Water release switch sub-assembly (for cylinder block) | 90910-09109 |
| 11415A | Water drain switch screw plug (for cylinder block) | 90345-52001 · 90345-52003 · 90910-09087 |
| 11416 | Bolts (for crankshaft bearing cap assembly) | 90105-10007 · 90105-10153 · 90910-02019 |
| 11431A | No. 1 sealing plug (for cylinder block) | 96411-42000 · 96411-42500 |
| 11431B | No. 2 sealing plug (for cylinder block) | 96411-43000 |
| 11431C | No. 3 sealing plug (for cylinder block) | 96411-43500 |
| 11434A | Direct sales (for timing gear cover assembly) | 90250-06003 · 90250-06068 |
| 11434B | Direct sales (for clutch housing assembly) | 90250-10017 · 90253-15003 |
| 11434D | Direct sales (for engine rear oil seal) | 90250-06068 · 90253-10005 |
| 11434G | Direct sales (for end plates) | 90253-15001 |
| 11434J | Ring pin (for cylinder head assembly) | 90253-12001 · 90253-14001 |
| 11448 | Cylinder block oil orifice | 11448-55010 |
| 11452 | Engine oil level gauge guide | 11452-11040 · 11452-11041 · 11452-55030 |
| 12101 | Oil pan sub-assembly | 12101-11060 · 12101-11090 · 12101-55010 · 12101-55011 |
| 12101A | Screw plug (for draining oil from the oil pan) | 90341-12026 |
| 12101B | Gasket (for oil pan drain plug) | 90430-12031 |
| 15301 | Engine oil level scoring assembly | 15301-11050 · 15301-55030 |
| 15301A | O-ring (for engine oil level gauge) | 96711-19010 · 96721-19010 |
| 15708 | No. 1 oil nozzle sub-assembly | 15790-55010 |
