Toyota COROLLA Cylinder Head — Figure 1104

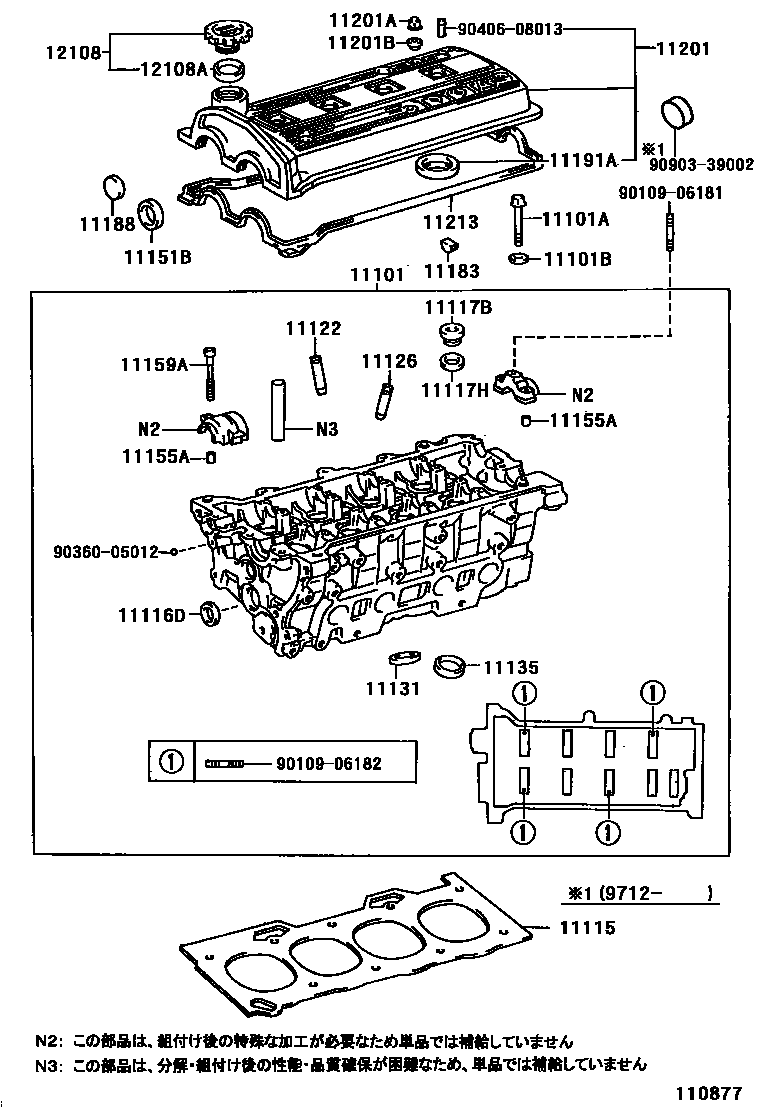

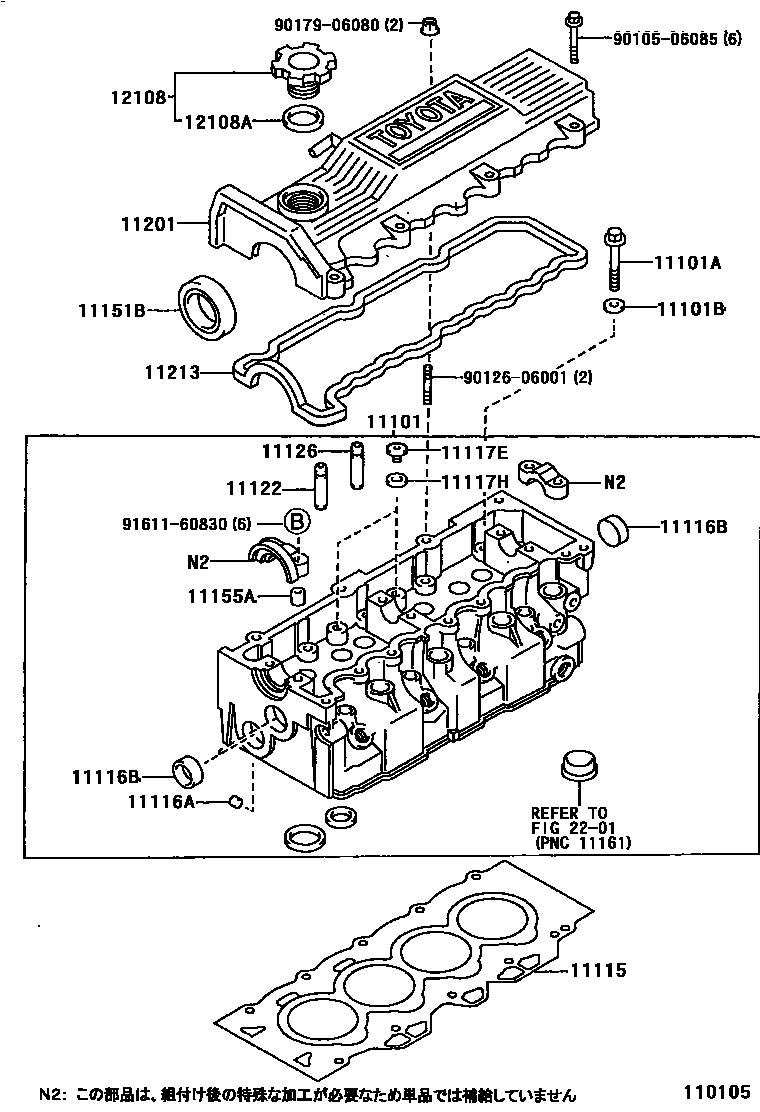

Toyota COROLLA EPC diagram 1104, Cylinder Head, with 2 images and 26 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11101 | CYLINDER HEAD SUB-ASSY | 11101-19435 · 11101-19436 · 11101-55041 |
| 11101A | BOLT (FOR CYLINDER HEAD) | 90910-02100 · 90910-02101 · 90910-02105 |
| 11101B | Flat Washer (for cylinder head assembly) | 90201-09024 · 90201-11016 |
| 11115 | GASKET, CYLINDER HEAD | 11115-11070 · 11115-11071 |
| 11116A | No. 1 sealing plug | 90331-08004 |
| 11116B | No. 2 sealing plug | 96411-12800 |
| 11116D | No. 4 sealing plug | 96411-42800 |
| 11117B | No. 2 headed tapered thread plug | 90341-20002 |
| 11117E | PLUG, STRAIGHT SCREW W/HEAD, NO.1 | 90341-18023 |
| 11117H | Gasket (for coolant hole) | 90430-18008 · 90430-20004 |
| 11122 | BUSH, INTAKE VALVE GUIDE | 11122-15030 · 11122-16020 · 11123-15030 · 11123-16020 |
| 11126 | BUSH, EXHAUST VALVE GUIDE | 11122-10040 · 11122-16020 · 11123-10040 · 11123-16020 |
| 11131 | intake valve seat | 11131-11020 · 11132-11020 |
| 11135 | Exhaust valve seat | 11135-11020 · 11136-11020 |
| 11151B | OIL SEAL (FOR CAMSHAFT SETTING) | 90311-35013 · 90311-35035 · 90311-38041 · 90311-38069 |
| 11155A | PIN, RING W/HEAD | 90253-08003 · 90253-11021 |
| 11159A | BOLT (FOR CYLINDER HEAD TO CAMSHAFT BEARING CAP) | 90109-06080 |
| 11183 | PLUG, SEMICIRCULAR | 11183-11010 |
| 11188 | Camshaft housing screw plug | 11188-11010 |
| 11191A | Gasket (for spark plug bushing) | 11193-15010 |
| 11201 | CYLINDER HEAD COVER SUB-ASSY | 11201-11030 · 11201-55040 |
| 11201A | Cap nut (for cylinder head cover) | 90176-06028 |
| 11201B | Gasket (for cylinder head cover) | 90210-06008 · 90210-06013 |
| 11213 | GASKET, CYLINDER HEAD COVER | 11213-11041 · 11213-55010 · 11213-55011 |
| 12108 | OIL FILLER CAP SUB-ASSY | 12180-55010 |
| 12108A | GASKET (FOR OIL FILLER CAP) | 90430-37004 · 90430-37140 |
