Toyota COROLLA Engine Overhaul Gasket Kit — Figure 1103

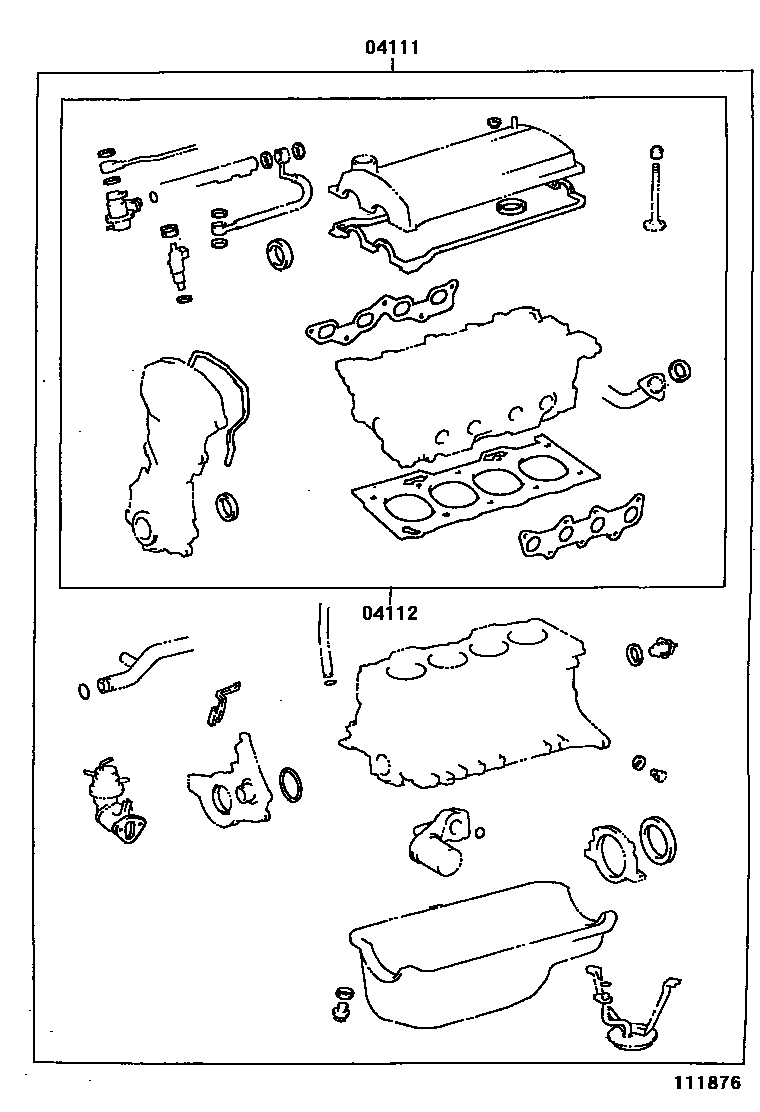

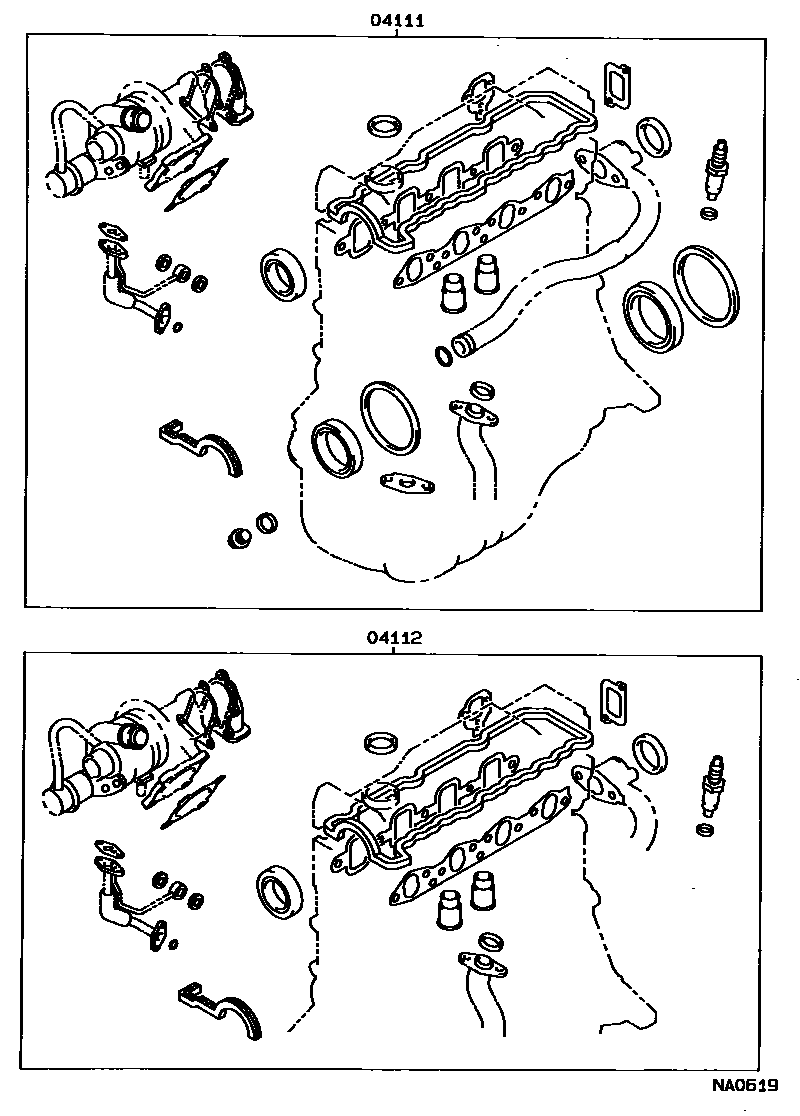

Toyota COROLLA EPC diagram 1103, Engine Overhaul Gasket Kit, with 2 images and 2 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04111 | Engine overhaul gasket assembly | 04111-11140 · 04111-11141 · 04111-11150 · 04111-11151 · 04111-11190 · 04111-55050 · 04111-55051 · 04111-55052 |
| 04112 | Engine valve grinding pad assembly | 04112-11120 · 04112-11121 · 04112-11130 · 04112-11131 · 04112-11160 · 04112-55050 · 04112-55051 |
