Toyota COROLLA Partial Engine Assembly — Figure 1101

Toyota COROLLA EPC diagram 1101, Partial Engine Assembly, with 1 images and 1 PNC and OE references.

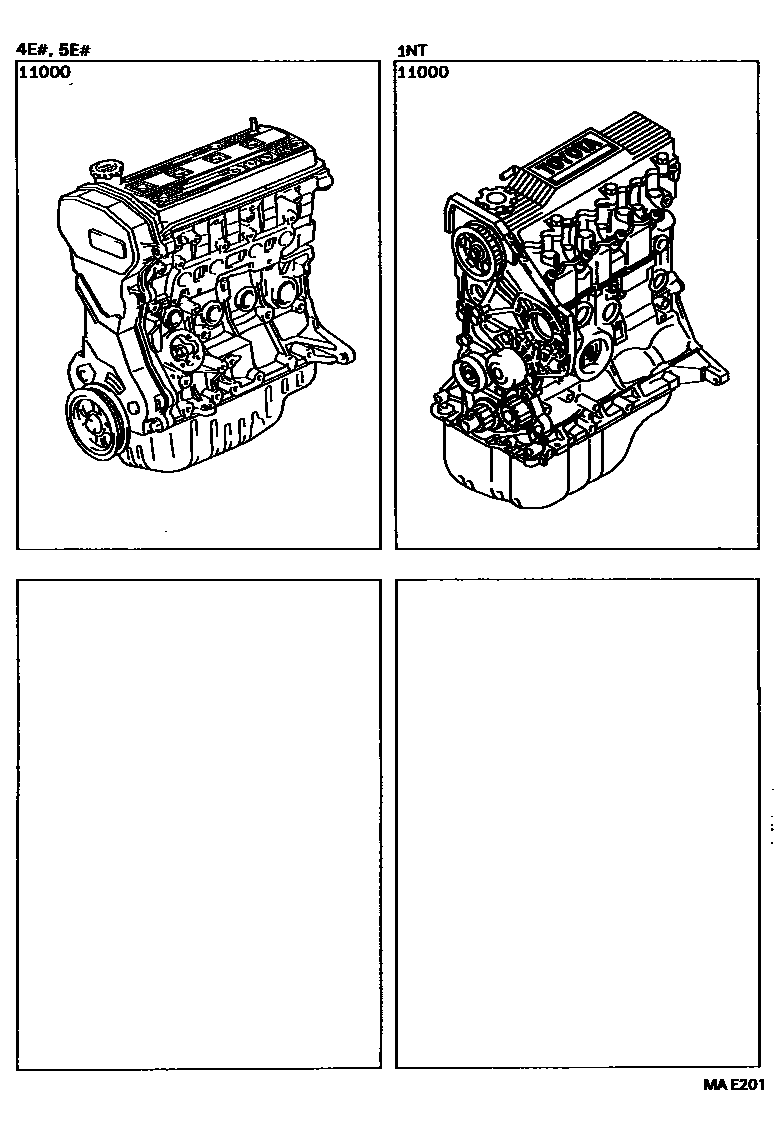

Toyota COROLLA Partial Engine Assembly EPC diagram — MAE201
Partial Engine Assembly — MAE201 (199409 – 999999)

PNC and OE references

PNCPart nameOE numbers
11000Partial Engine Assembly19000-11620 · 19000-11630 · 19000-11640 · 19000-11710 · 19000-11800 · 19000-11810 · 19000-11840 · 19000-55140 · 19000-55150
