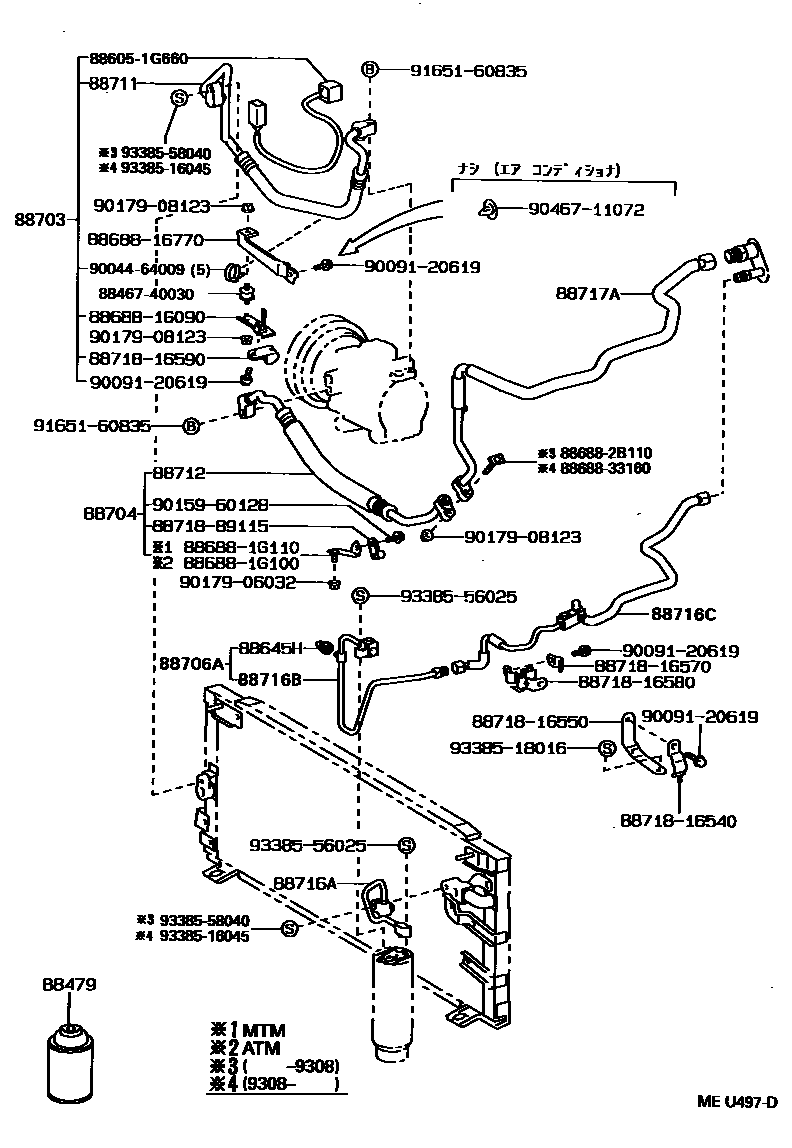

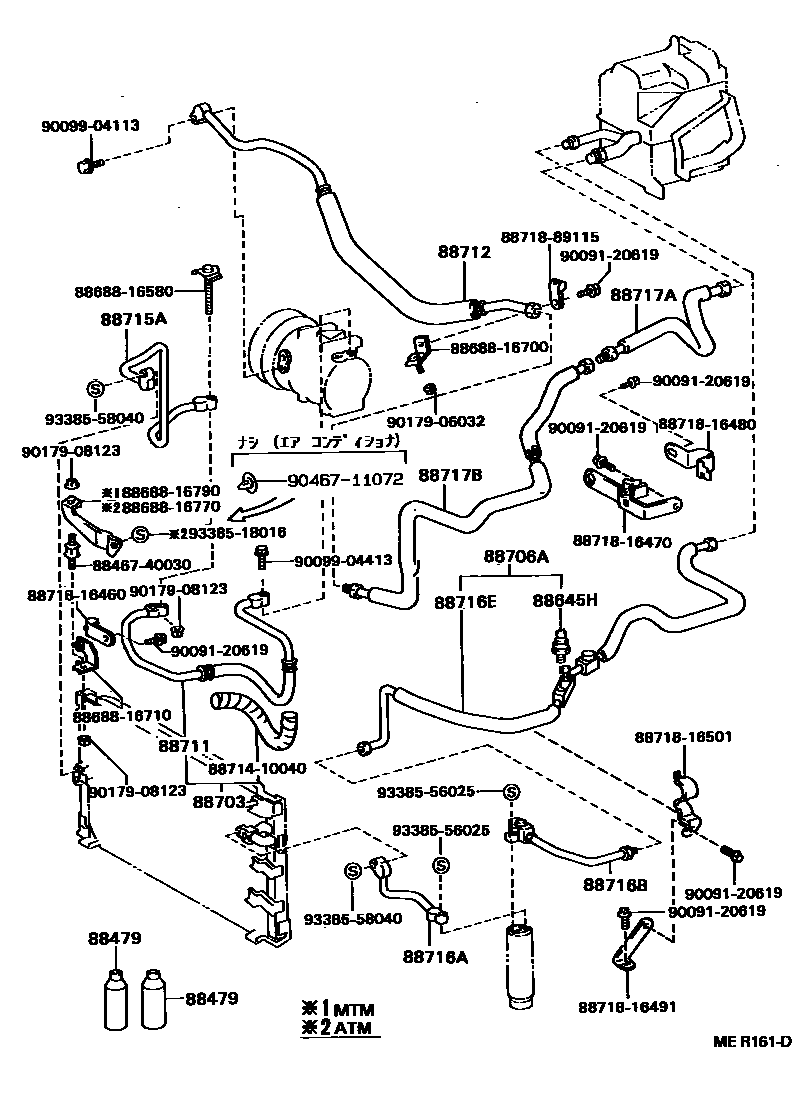

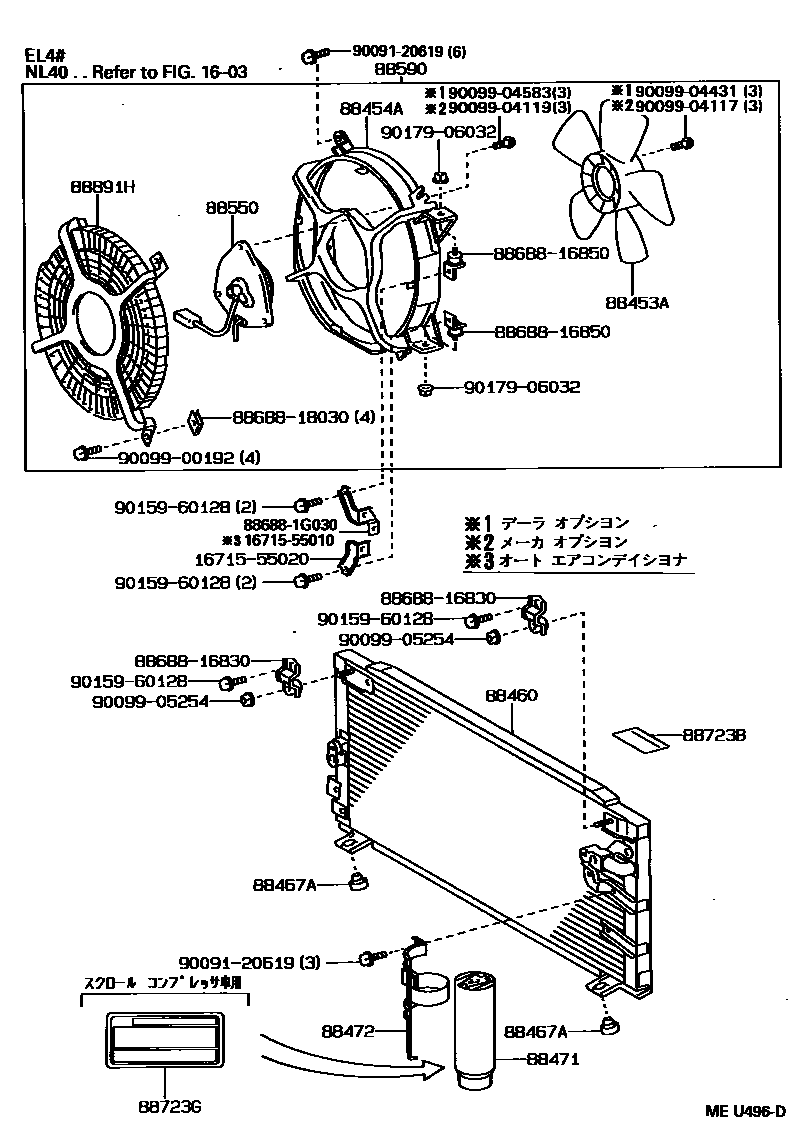

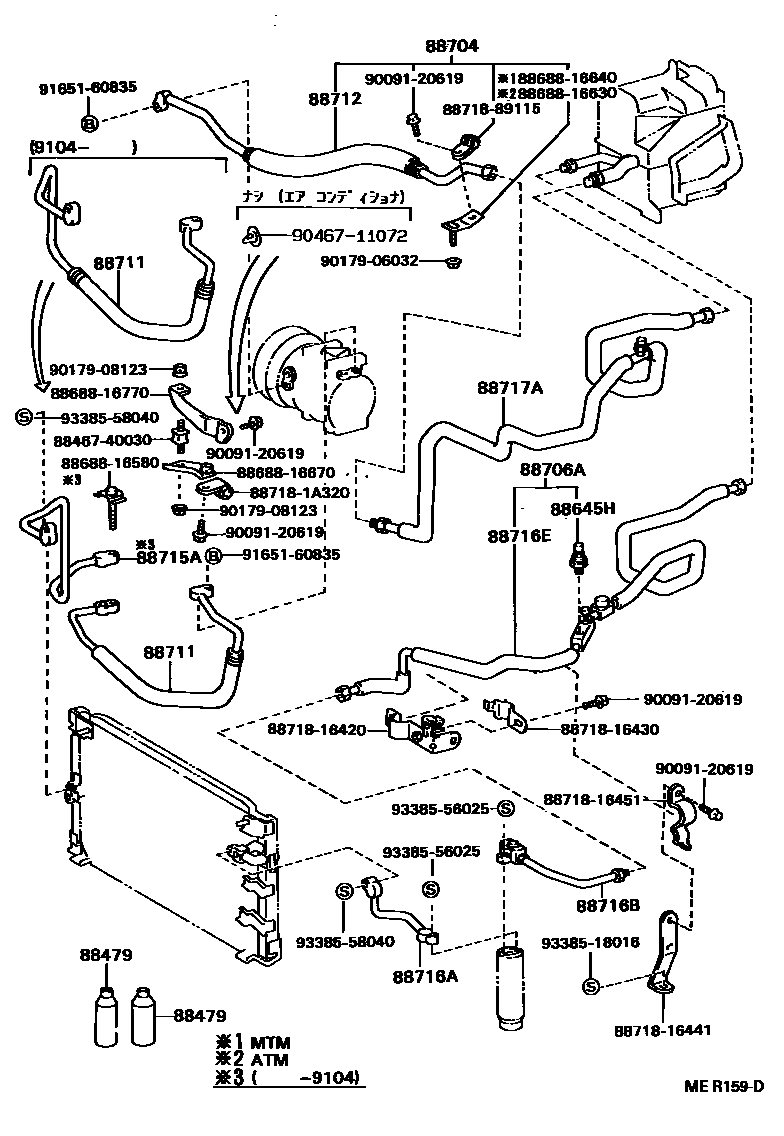

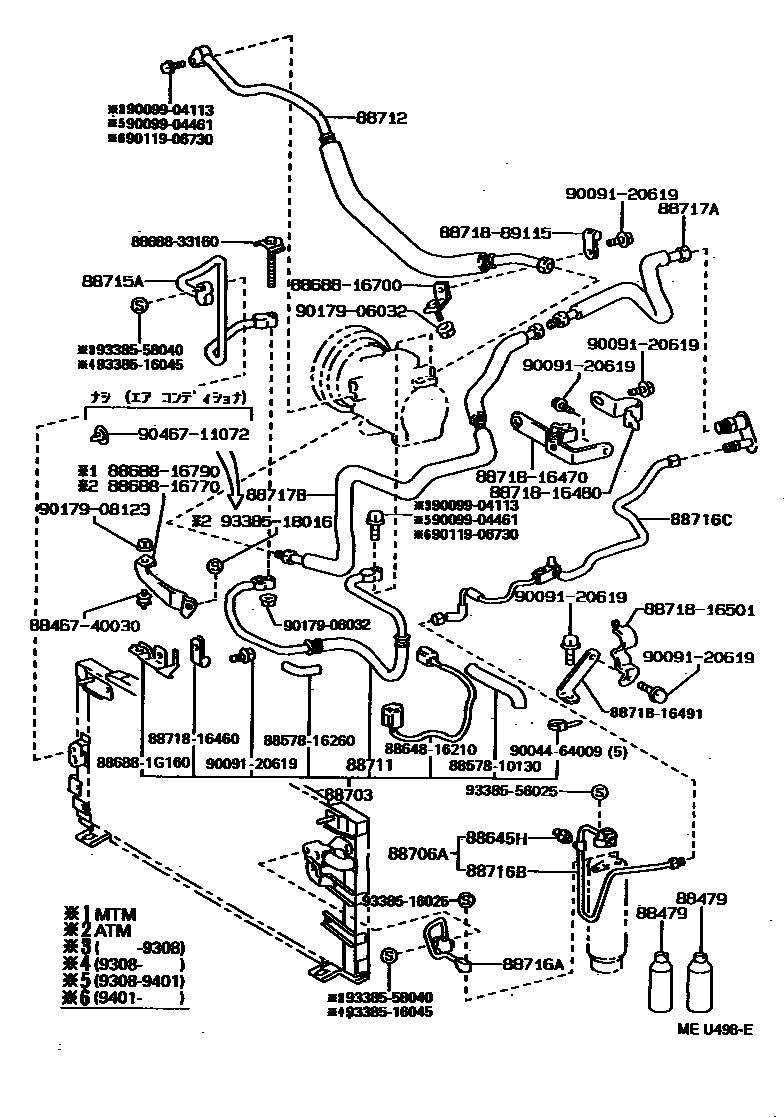

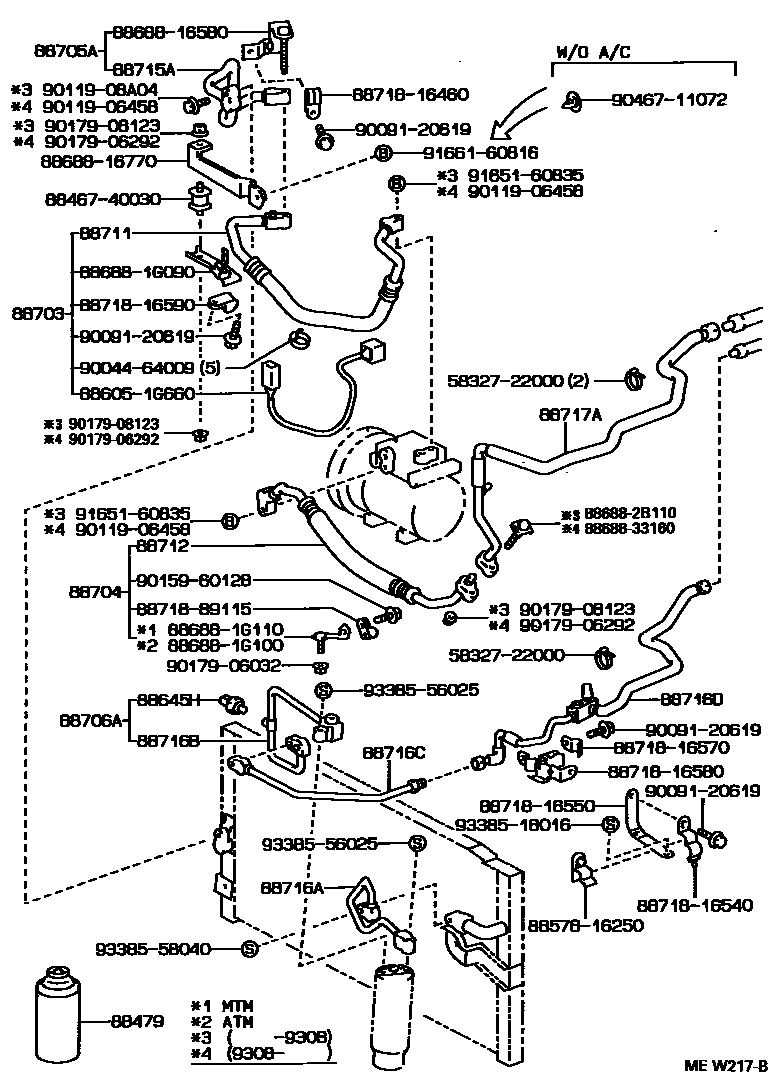

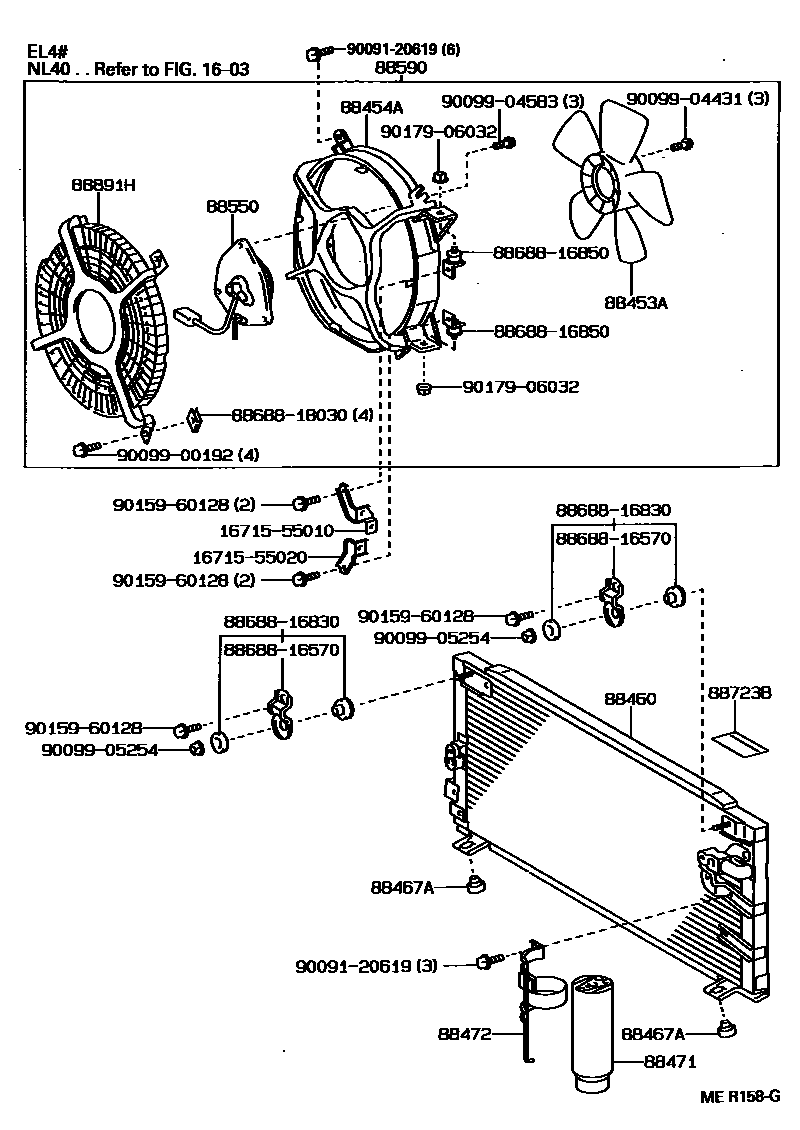

Toyota COROLLA Heating & Air Conditioning - Cooler Piping — Figure 8718
Toyota COROLLA EPC diagram 8718, Heating & Air Conditioning - Cooler Piping, with 7 images and 27 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 88453A | cooling fan | 16361-55040 · 88453-10020 |
| 88454A | fan cover | 16711-55110 · 88454-16110 |
| 88460 | Air conditioning condenser assembly | 88460-16240 · 88460-16250 · 88460-16300 · 88460-16301 · 88460-16320 · 88460-16321 |
| 88467A | No. 2 air conditioning condenser buffer pad | 88467-10020 · 88467-16090 |
| 88471 | Air conditioning fluid storage tank | 88471-16040 · 88471-34010 |
| 88472 | No. 1 liquid storage tank bracket | 88472-16110 · 88472-16120 |
| 88479 | Air conditioning Freon gas (cooler refrigerant drum) | 90986-02004 · 90986-02006 · 90986-02008 |
| 88550 | Blower motor assembly (for condenser) | 16363-55020 · 88550-10050 |
| 88590 | Blower assembly with hood | 16370-55030 · 88590-16040 |
| 88645H | No. 1 pressure switch | 88645-10030 · 88645-20050 |
| 88703 | Discharge hose sub-assembly | 88703-16050 · 88703-16060 · 88703-16061 · 88703-16070 · 88703-16071 · 88703-16080 · 88703-16081 · 88703-16082 · 88703-16160 |
| 88704 | Oil suction hose sub-assembly | 88704-16030 · 88704-16031 · 88704-16040 · 88704-16090 · 88704-16091 · 88704-16100 · 88704-16101 · 88704-16120 · 88704-16121 · 88704-16130 · 88704-16131 · 88704-16190 |
| 88705A | Discharge pipe sub-assembly | 88705-16010 · 88705-16011 |
| 88706A | Liquid pipe A sub-assembly | 88706-16100 · 88706-16101 · 88706-16200 · 88706-16250 · 88706-16251 · 88706-16280 · 88706-16281 |
| 88711 | Cooler No. 1 refrigerant drain hose | 88711-16130 · 88711-16140 · 88711-16160 · 88711-16170 · 88711-16171 · 88711-16180 · 88711-16181 · 88711-16190 · 88711-16191 · 88711-16192 · 88711-16310 |
| 88712 | Cooler No. 1 refrigerant suction hose | 88712-16170 · 88712-16171 · 88712-16180 · 88712-16190 · 88712-16250 · 88712-16251 · 88712-16260 · 88712-16261 · 88712-16280 · 88712-16281 · 88712-16290 · 88712-16291 · 88712-16300 · 88712-16301 · 88712-16440 |
| 88715A | Cooler refrigerant discharge pipe A | 88715-16030 · 88715-16031 |
| 88716A | Cooler refrigerant liquid pipe A | 88716-16530 · 88716-16531 · 88716-16532 |
| 88716B | Cooler refrigerant liquid pipe B | 88716-16570 · 88716-16730 · 88716-16731 · 88716-16840 · 88716-16841 |
| 88716C | Cooler refrigerant liquid pipe C | 88716-16780 · 88716-16781 · 88716-16820 · 88716-16821 · 88716-16850 · 88716-16851 |
| 88716D | Cooler refrigerant liquid pipe D | 88716-16740 · 88716-16741 |
| 88716E | Cooler refrigerant liquid pipe E | 88716-16700 · 88716-16701 · 88716-16800 |
| 88717A | Cooler refrigerant suction pipe A | 88717-16130 · 88717-16131 · 88717-16140 · 88717-16141 · 88717-16200 · 88717-16201 · 88717-16220 · 88717-16221 |
| 88717B | Cooler refrigerant suction pipe B | 88717-16160 · 88717-16161 |
| 88723B | Cooler maintenance warning label | 88723-16030 · 88723-20010 · 88723-20030 |
| 88723G | Cooler maintenance warning label | 88723-16070 |
| 88891H | Cooler cover No. 1 | 88891-16040 |
