Toyota COROLLA 暖风和空调系统 - 真空管 — Figure 8717

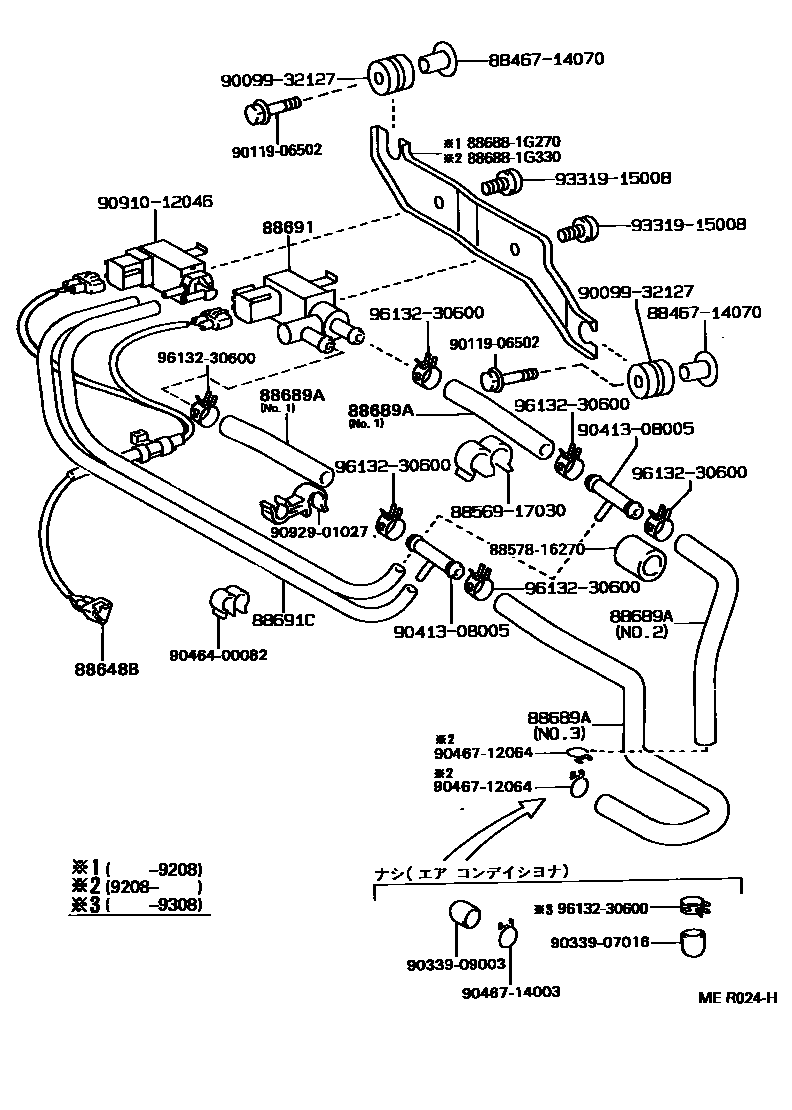

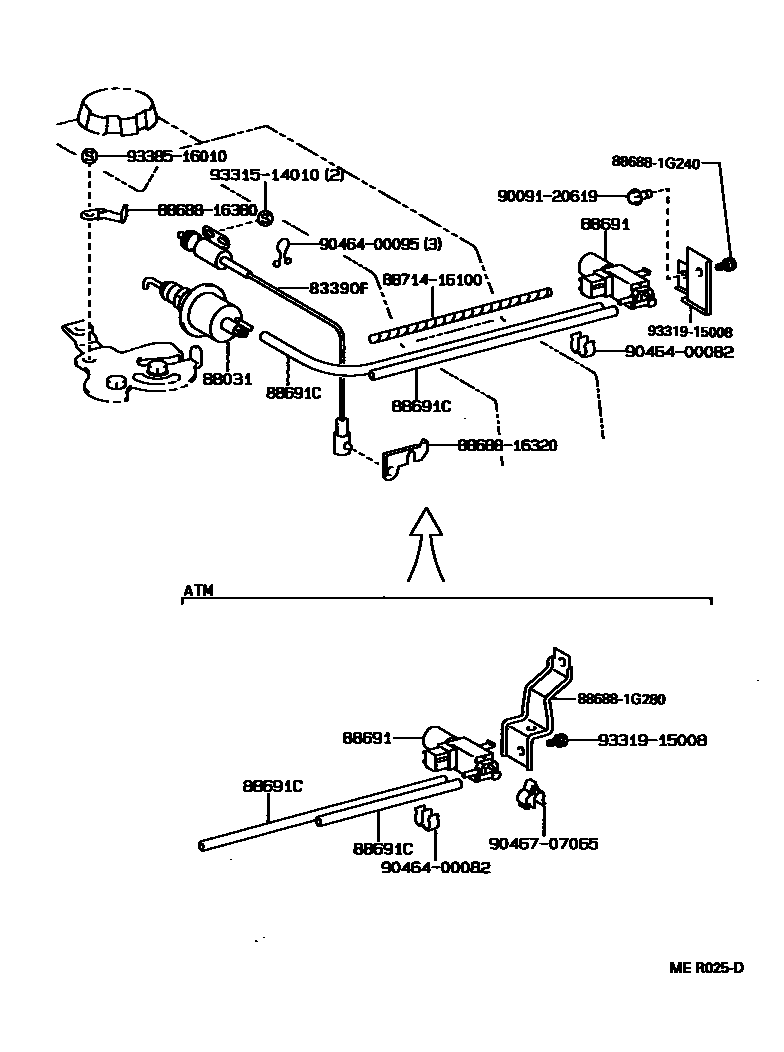

Toyota COROLLA EPC diagram 8717, 暖风和空调系统 - 真空管, with 2 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 83390F | Cooler vacuum switch assembly | 88610-16040 |
| 88031 | Idle speed lift actuator assembly | 88031-27040 |
| 88648B | No. 1 cooler wiring harness | 88648-16190 |
| 88689A | Cooler Vacuum Hose No. 1 | 88689-16050 · 88689-16051 · 88689-16060 · 88689-16070 · 88689-16080 · 88689-16081 · 88689-16090 · 88689-16091 |
| 88691 | Solenoid valve (for idle speed lifting device) | 88691-16060 · 88691-17030 |
| 88691C | Vacuum hose No. 1 (for idle lift) | 90999-92002 · 90999-92003 · 95411-10022 |
