Toyota COROLLA 暖风和空调系统 - 控制器和风管 — Figure 8715

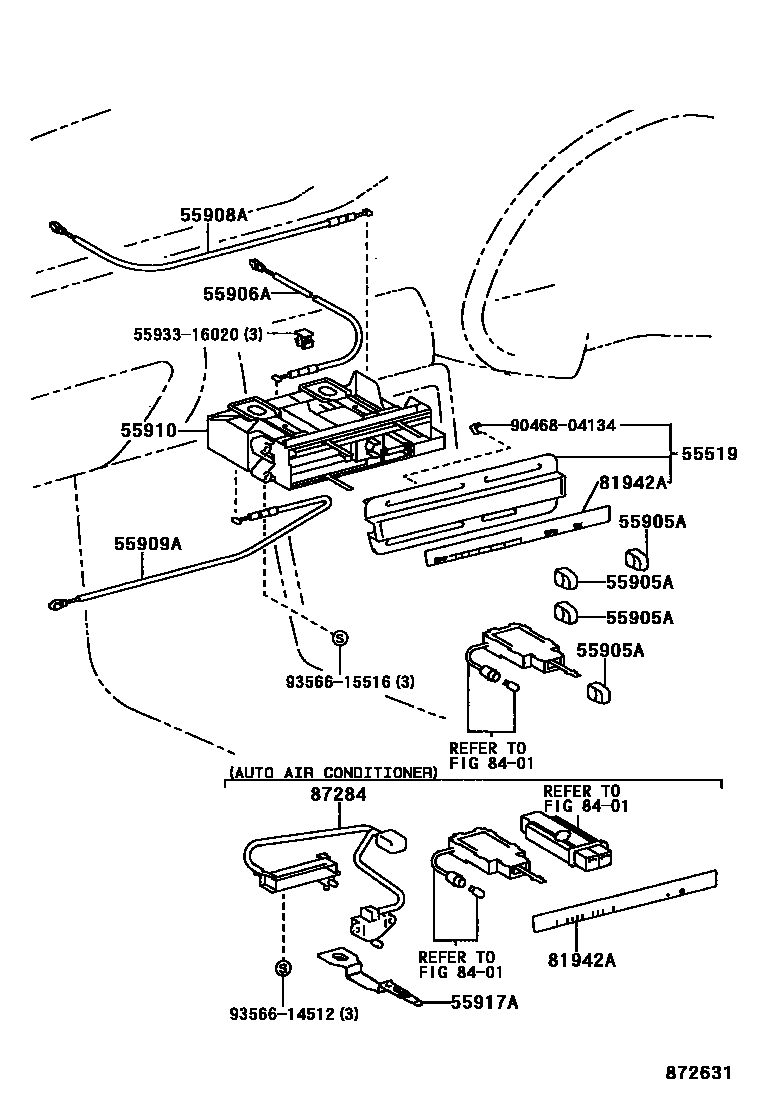

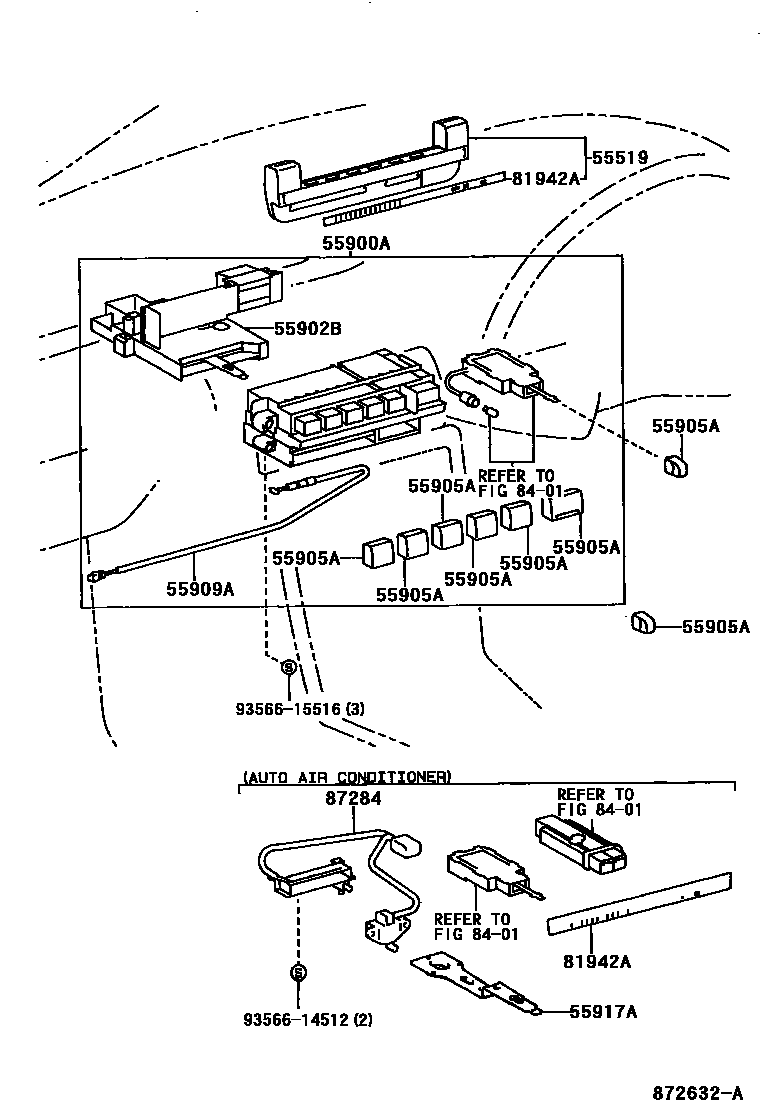

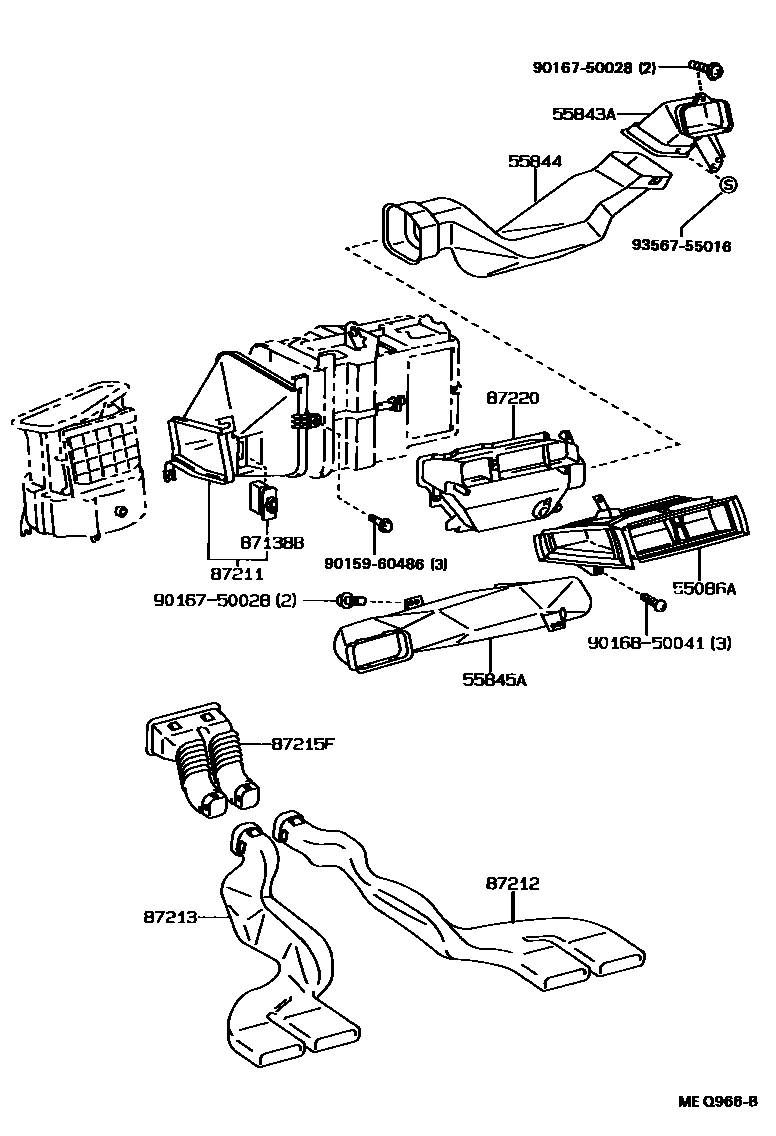

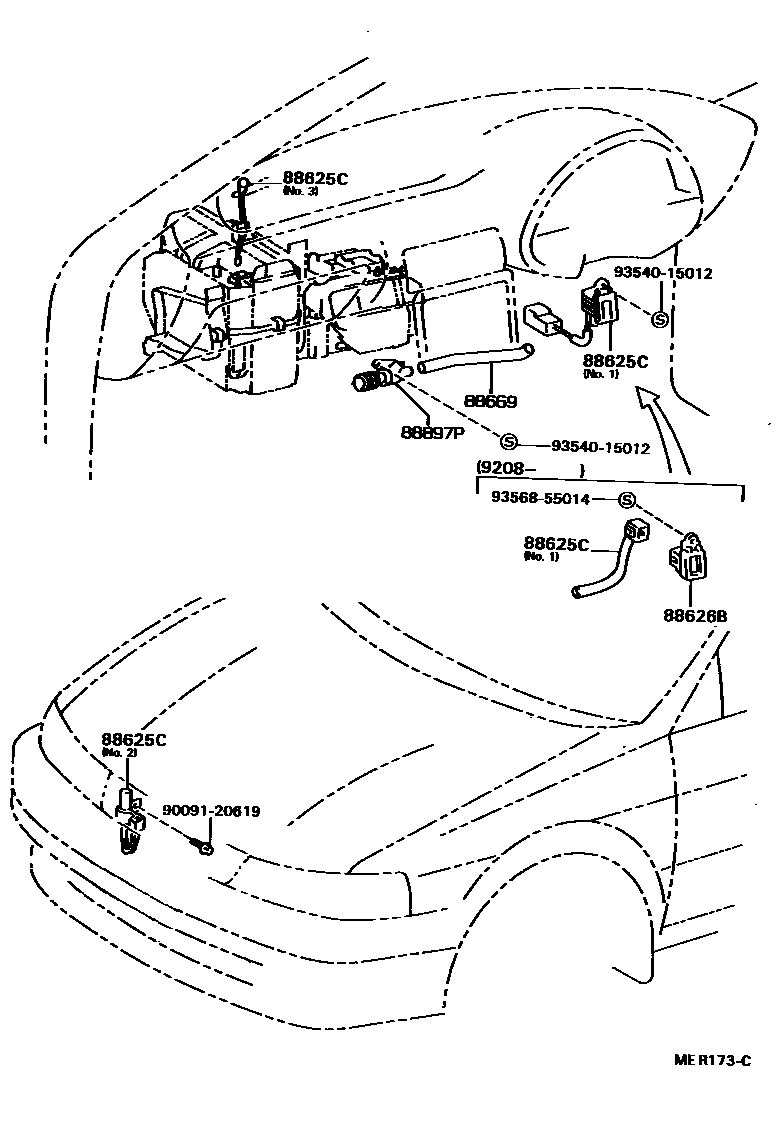

Toyota COROLLA EPC diagram 8715, 暖风和空调系统 - 控制器和风管, with 4 images and 22 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55086A | Heater to central air register air duct sub-assembly | 55086-16060 |
| 55843A | Air duct No. 1 from heater to air register | 55843-16070 |
| 55844 | Air duct No. 2 from heater to air regulator | 55844-16070 |
| 55845A | Air duct No. 3 from heater to air regulator | 55845-16070 |
| 55902B | Heater control sub-assembly | 55902-16010 |
| 55905A | Heater control button | 55905-89115 |
| 55906A | Defroster damper control cable sub-assembly | 55906-16070 |
| 55908A | Intake air valve control cable sub-assembly | 55908-16070 |
| 55909A | Air mix damper control cable sub-assembly | 55909-16070 · 55909-16090 |
| 55910 | Heater or auxiliary ventilation control assembly | 55910-16140 · 55910-16141 |
| 55917A | Temperature damper control lever | 55917-16050 · 55917-16060 |
| 87138B | Heater Blower Resistor | 87138-16130 |
| 87211 | No. 1 air duct | 87201-16120 |
| 87212 | No. 1 rear air duct | 87212-10100 |
| 87213 | No. 2 rear air duct | 87213-10090 |
| 87215F | No. 3 rear air duct | 87215-10010 |
| 87220 | Air duct assembly | 87220-16010 |
| 87284 | Variable resistor sub-assembly | 88032-16090 · 88032-16100 |
| 88625C | Cooler thermistor | 88625-16121 · 88625-16130 · 88625-16140 · 88625-16150 · 88625-16190 |
| 88626B | Thermistor mount | 88626-16010 |
| 88669 | Cooler air hose | 88669-16040 · 88669-16050 |
| 88897P | aspirator | 88897-16010 |
