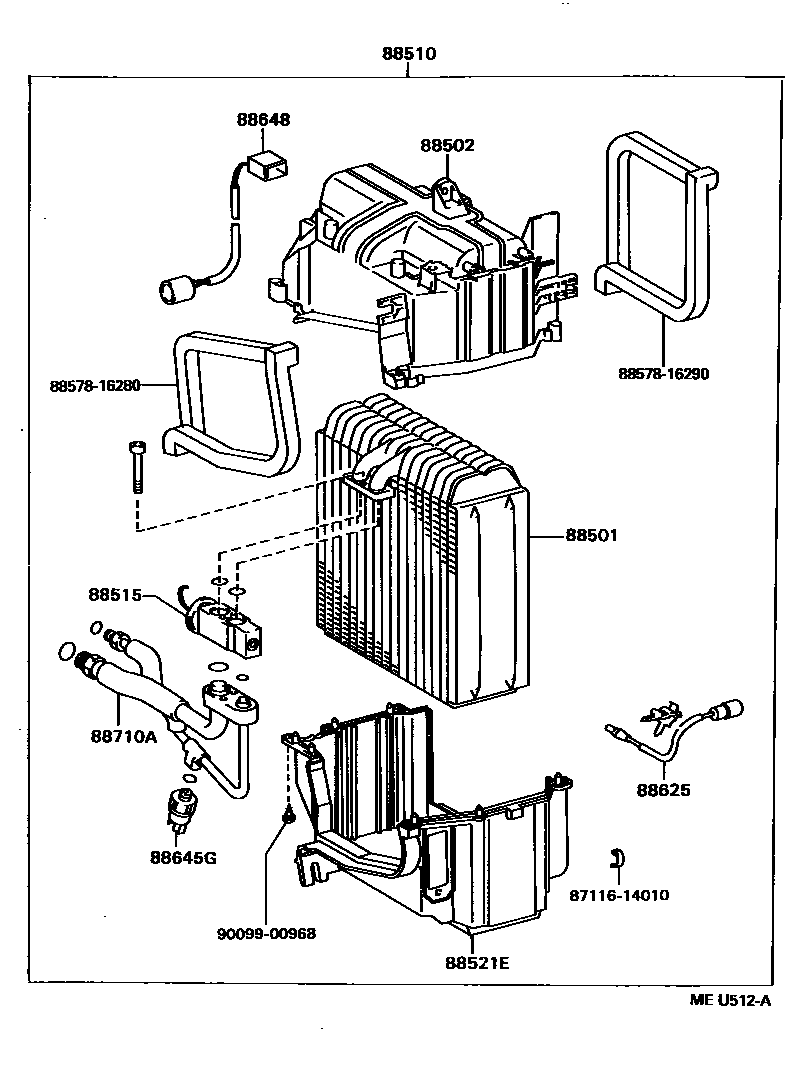

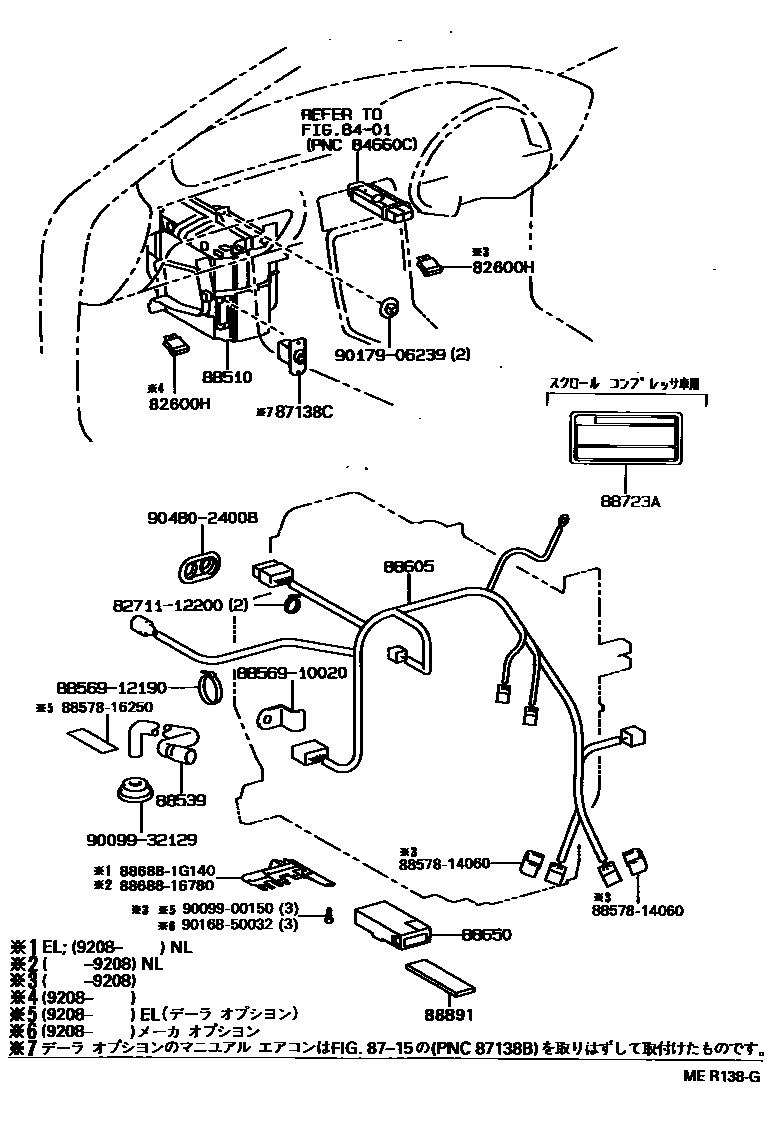

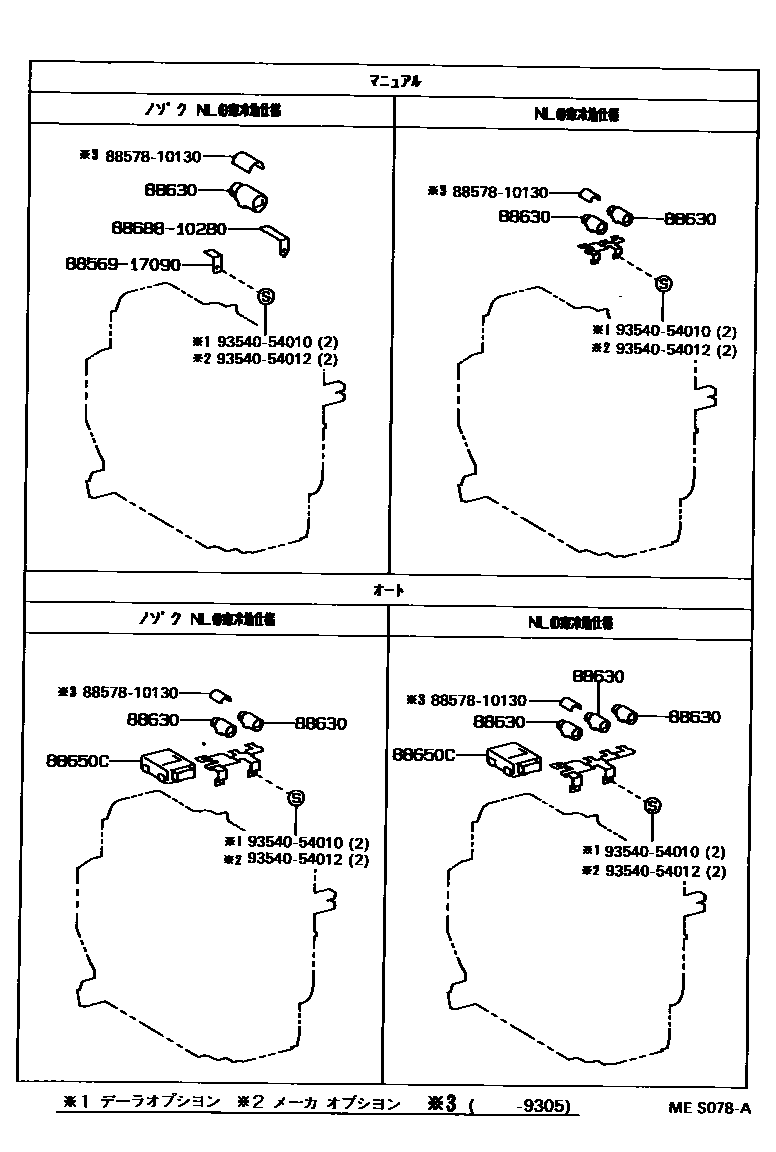

Toyota COROLLA 暖风和空调系统 - 冷却器组件 — Figure 8714
Toyota COROLLA EPC diagram 8714, 暖风和空调系统 - 冷却器组件, with 3 images and 18 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 82600H | Spare fuse | 90982-09002 |
| 87138C | Blower resistor | 87138-16130 · 87138-18020 |
| 88501 | Cooler No. 1 evaporator sub-assembly | 88501-10100 · 88501-16110 |
| 88502 | Cooling device shell sub-assembly | 88502-10010 · 88502-16150 |
| 88510 | Cooler device assembly | 88510-10240 · 88510-16480 |
| 88515 | Cooler expansion valve | 88515-14062 · 88515-20100 |
| 88521E | Cooling device shell sub-assembly | 88502-10020 |
| 88539 | No. 1 Cooler Unit Drain Hose | 88539-10090 |
| 88605 | No. 1 cooler wiring harness sub-assembly | 88605-1G350 · 88605-1G360 · 88605-1G370 · 88605-1G380 · 88605-1G390 · 88605-1G400 · 88605-1G410 · 88605-1G420 · 88605-1G440 · 88605-1G450 · 88605-1G470 · 88605-1G480 · 88605-1G510 · 88605-1G520 · 88605-1G530 · 88605-1G610 · 88605-1G611 · 88605-1G630 · 88605-1G631 · 88605-1G670 · 88605-1G671 · 88605-1G690 · 88605-1G691 · 88605-1G730 · 88605-1G731 · 88605-1G740 · 88605-1G741 · 88605-1G750 · 88605-1G751 · 88605-1G760 · 88605-1G761 · 88605-1G790 · 88605-1G791 · 88605-1G800 |
| 88625 | Cooler No. 1 Thermistor | 88625-24050 |
| 88630 | Cooler relay assembly | 88630-95702 |
| 88645G | pressure switch | 88645-30320 |
| 88648 | No. 1 cooler wiring harness | 88648-10290 |
| 88650 | Cooler stabilized amplifier assembly | 88650-16430 · 88650-16440 · 88650-16450 · 88650-16480 · 88650-16490 · 88650-16530 · 88650-16660 |
| 88650C | Air conditioning amplifier sub-assembly | 88650-16460 |
| 88710A | Air conditioning pipe assembly | 88710-10060 · 88710-16230 |
| 88723A | Cooler maintenance warning label | 88723-16070 |
| 88891 | Seals (for coolers) | 88578-16190 |
