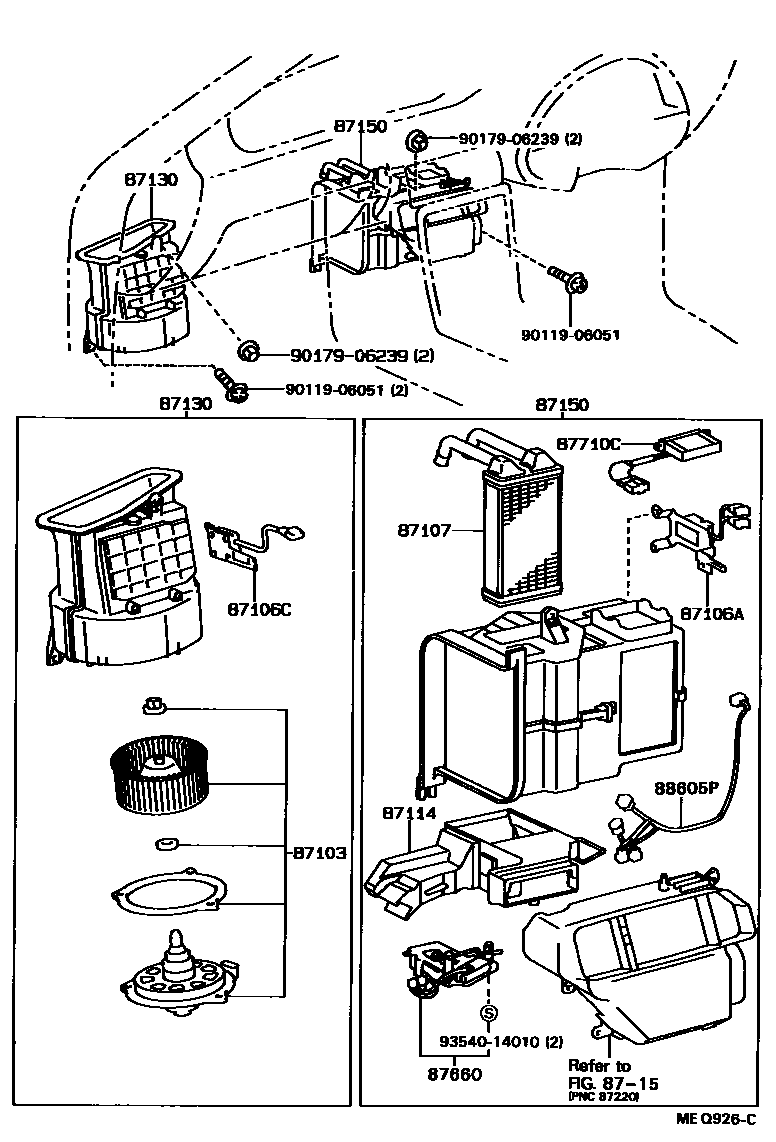

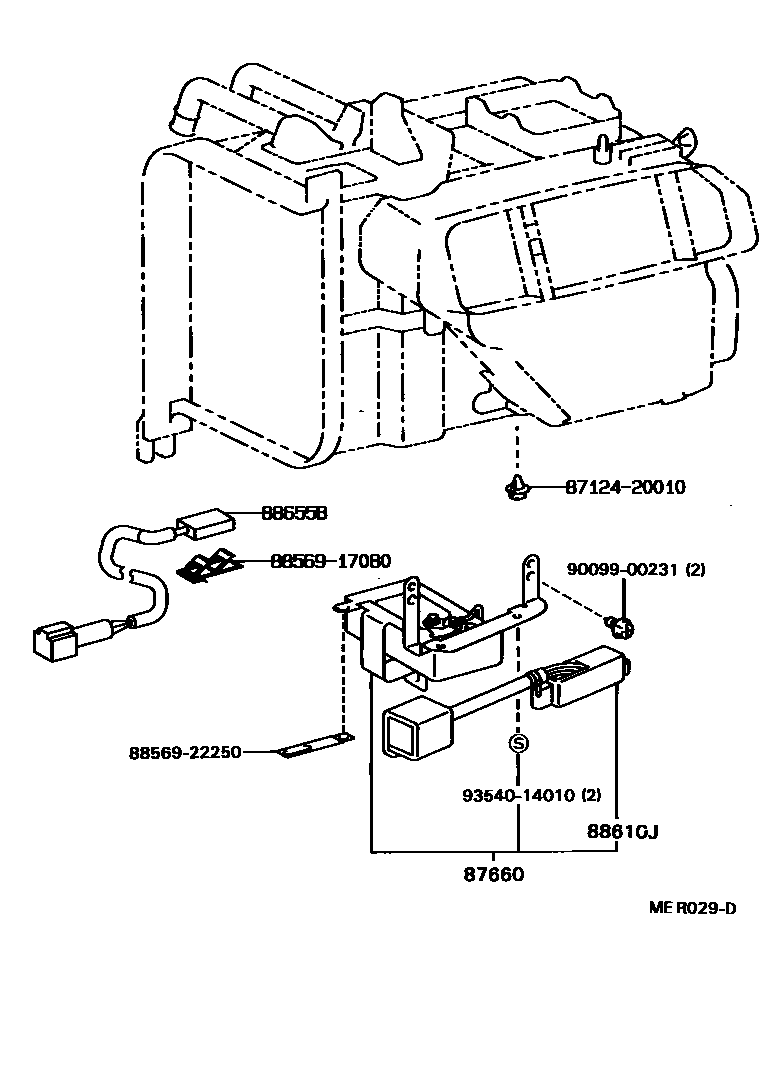

Toyota COROLLA 暖风和空调系统 - 加热装置和鼓风机 — Figure 8712
Toyota COROLLA EPC diagram 8712, 暖风和空调系统 - 加热装置和鼓风机, with 2 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 87103 | Heater blower motor sub-assembly with fan | 87103-17010 |
| 87106A | Damper servo mechanism sub-assembly | 87106-16010 · 87106-16030 |
| 87106C | Damper servo mechanism sub-assembly (for blower) | 87106-16020 |
| 87107 | Heater radiator device sub-assembly | 87107-16190 · 87107-16200 · 87107-16210 · 87107-16220 |
| 87114 | heater cover | 87114-16050 · 87114-16060 |
| 87130 | Front heater blower assembly | 87130-16140 · 87130-16150 |
| 87150 | Heater radiator assembly | 87150-16270 · 87150-16280 · 87150-16290 · 87150-16300 · 87150-16310 · 87150-16320 · 87150-16330 · 87150-16370 · 87150-16380 |
| 87660 | Air conditioning servo mechanism assembly | 88660-16030 · 88660-16040 |
| 87710C | Rapid heater assembly | 87710-10020 |
| 88605P | Air conditioning wiring harness sub-assembly | 88605-1G650 |
| 88610J | Control switch assembly | 88610-16070 |
| 88655B | Water temperature switch | 88625-10070 · 88625-16180 |
