Toyota COROLLA 后视镜 — Figure 8701

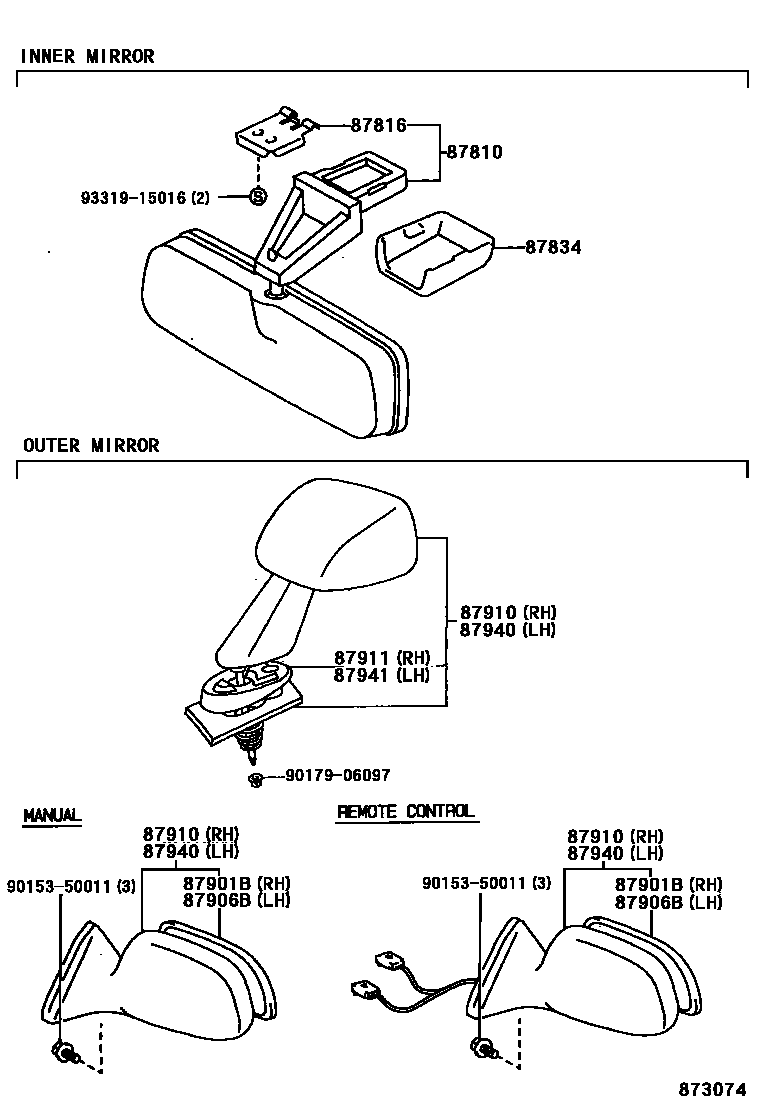

Toyota COROLLA EPC diagram 8701, 后视镜, with 1 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 87816 | Interior rearview mirror spring | 74372-30030 |
| 87901B | Right exterior rearview mirror sub-assembly | 87931-16500 · 87931-16610 |
| 87906B | Left exterior rearview mirror sub-assembly | 87961-16540 · 87961-16660 |
| 87910 | Right exterior rearview mirror assembly | 87910-16460 · 87910-16520 · 87910-16580 |
| 87911 | Right exterior mirror pad | 87911-16100 |
| 87940 | Left exterior rearview mirror assembly | 87940-16570 · 87940-16620 · 87940-16630 |
| 87941 | Left exterior mirror pad | 87941-16100 |
