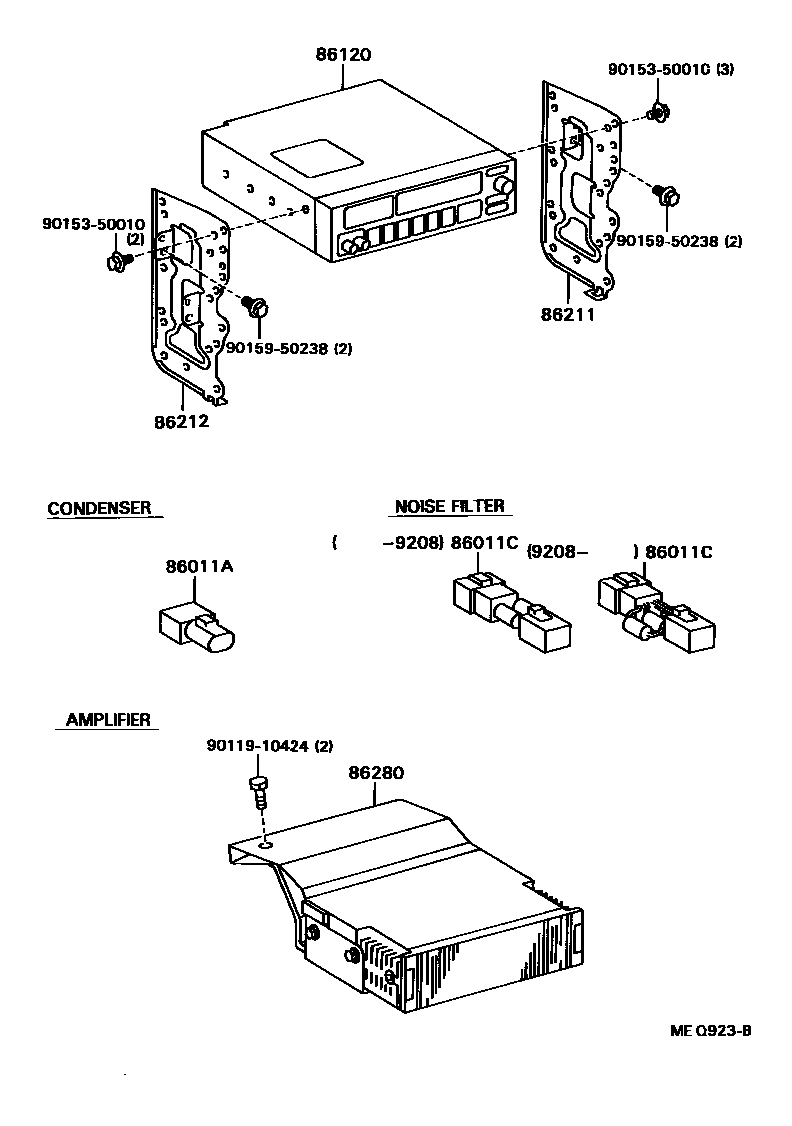

Toyota COROLLA 收音机、放大器和冷凝器 — Figure 8601
Toyota COROLLA EPC diagram 8601, 收音机、放大器和冷凝器, with 1 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86011A | radio settings phase modulator | 90980-04083 |
| 86011C | Noise filter | 90980-05175 · 90980-05270 |
| 86120 | Radio assembly | 86120-10290 · 86120-10430 · 86120-14840 · 86120-27010 · 86120-2A160 · 86120-2B370 · 86120-32470 |
| 86211 | No. 1 radio bracket | 86211-16240 · 86211-16250 |
| 86212 | No. 2 radio bracket | 86212-16240 · 86212-16250 |
| 86280 | Stereo parts amplifier assembly | 86280-16060 |
