Toyota COROLLA 后清洗器 — Figure 8504

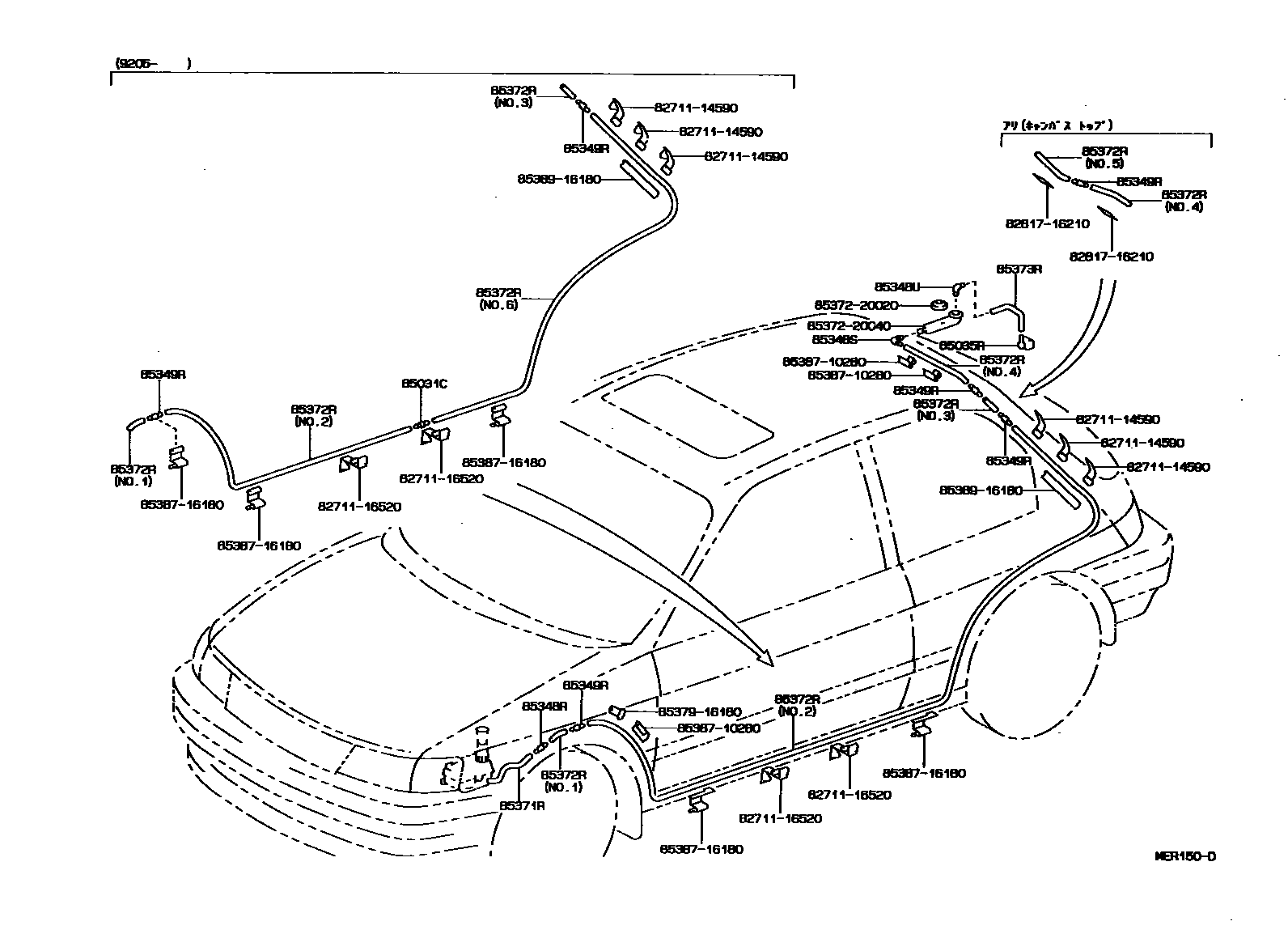

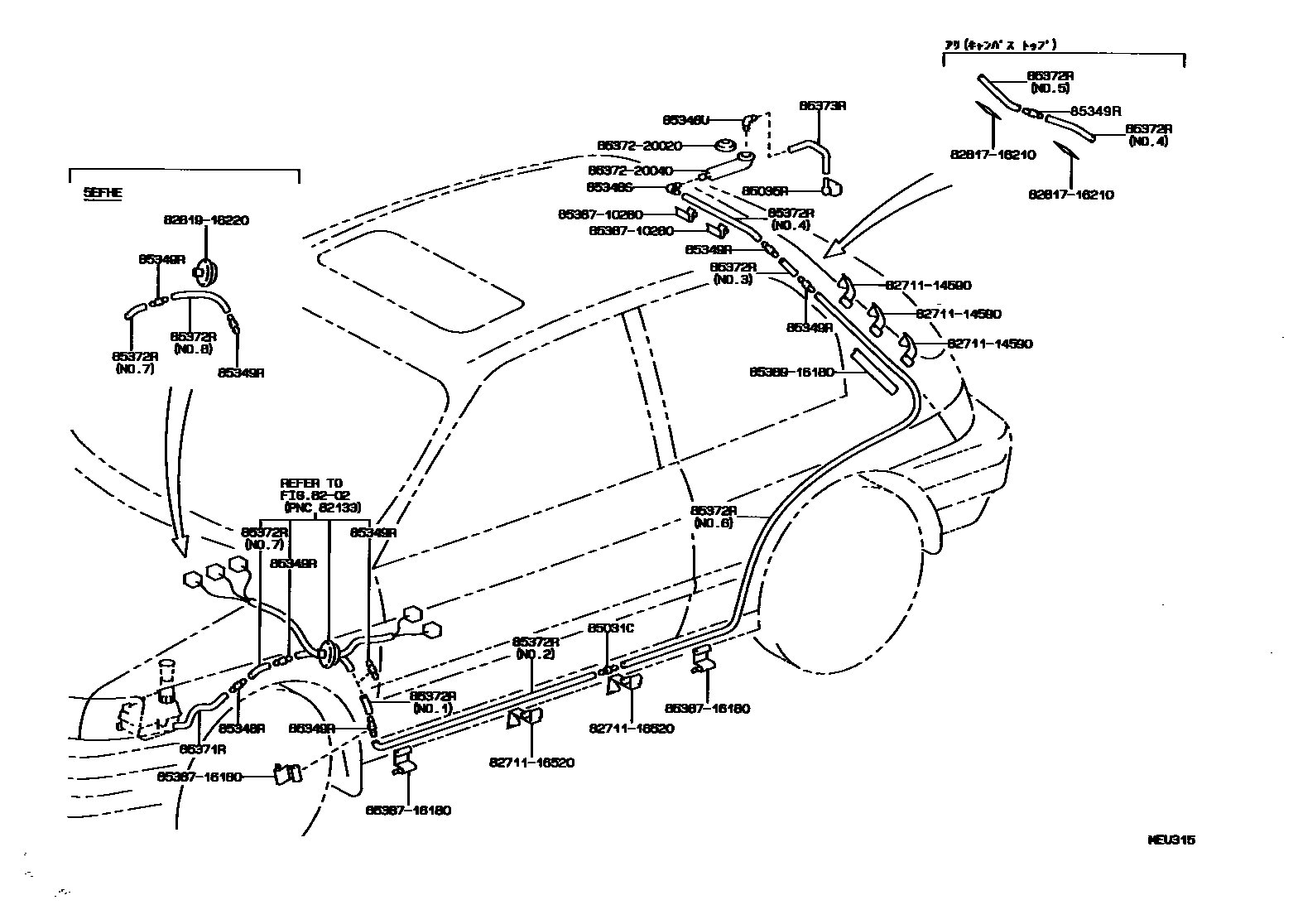

Toyota COROLLA EPC diagram 8504, 后清洗器, with 2 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85031C | Cleaner valve sub-assembly | 85031-90A00 |
| 85035R | Rear washer nozzle sub-assembly | 85391-16010 |
| 85348R | No. 1 rear washer hose connector | 85349-89122 |
| 85348S | No. 1 rear cleaner elbow joint | 85355-20200 |
| 85348U | No. 3 rear washer hose connector | 85355-20200 |
| 85349R | No. 5 rear washer hose connector | 85349-89122 |
| 85371R | Rear washer hose (from motor to connector) | 90446-07001 |
| 85372R | Rear washer hose (from fitting to fitting or nozzle) | 90099-33080 · 90099-33511 · 90099-59053 · 90099-59058 · 90099-59080 · 90446-07001 |
| 85373R | Rear washer hose (from connector to nozzle) | 90099-33185 |
