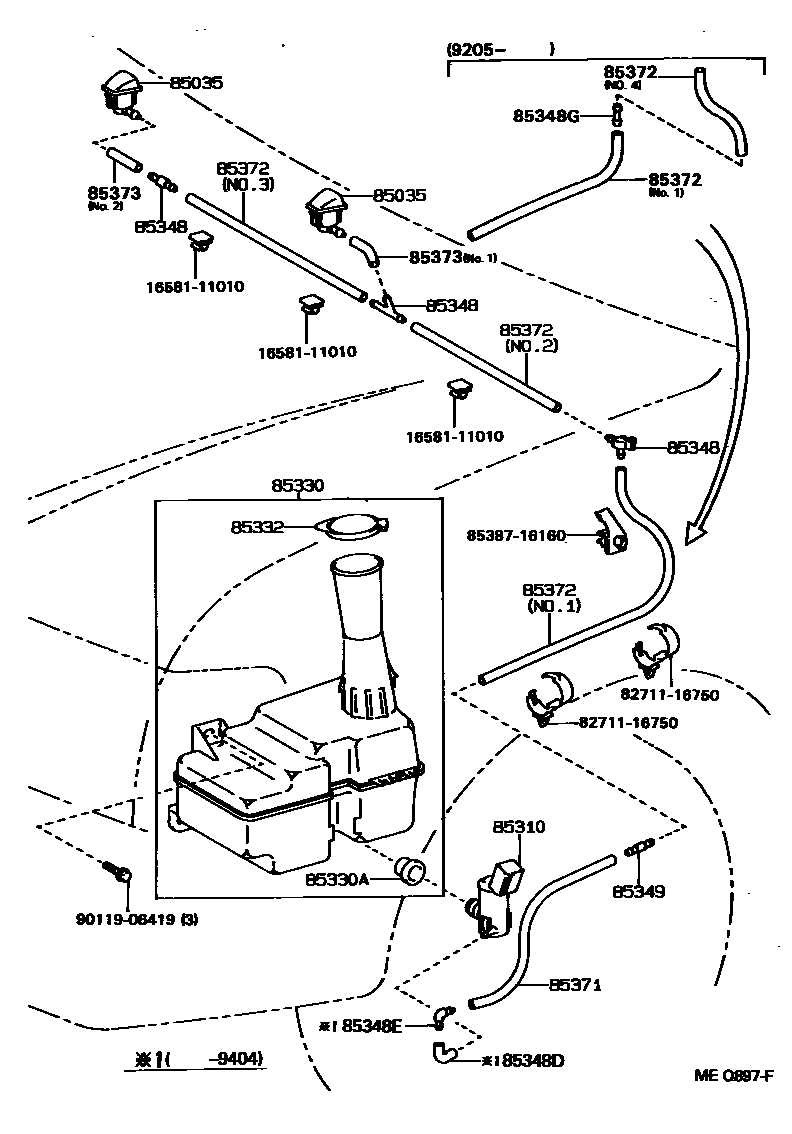

Toyota COROLLA 挡风玻璃清洗器 — Figure 8503
Toyota COROLLA EPC diagram 8503, 挡风玻璃清洗器, with 1 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85035 | Cleaner nozzle sub-assembly | 85381-16010 |
| 85310 | Windshield washer motor and pump assembly | 85310-20170 · 85310-20210 · 85330-12280 |
| 85330 | Windshield washer fluid tank assembly | 85315-16070 |
| 85330A | Windshield washer fluid tank bushing | 90099-32089 |
| 85332 | Windshield washer fluid tank cap | 85316-10190 · 85316-16070 |
| 85348 | Windshield washer hose connector No. 1 | 85348-14390 · 85375-10260 · 85375-16160 |
| 85348D | No. 1 windshield washer elbow joint | 85355-14481 |
| 85348E | No. 2 windshield washer elbow joint | 85355-20200 |
| 85348G | Windshield washer hose connector No. 2 | 85376-50040 |
| 85349 | Windshield washer hose connector No. 1 | 85349-89122 |
| 85371 | Windshield washer hose (from motor to connector) | 90099-33080 · 90099-33299 |
| 85372 | Windshield washer hose No. 1 (from connector to connector) | 90099-33080 · 90446-06013 · 90446-07001 · 90446-07012 |
| 85373 | Windshield washer hose (from connector to nozzle) | 90099-33080 · 90099-33299 |
