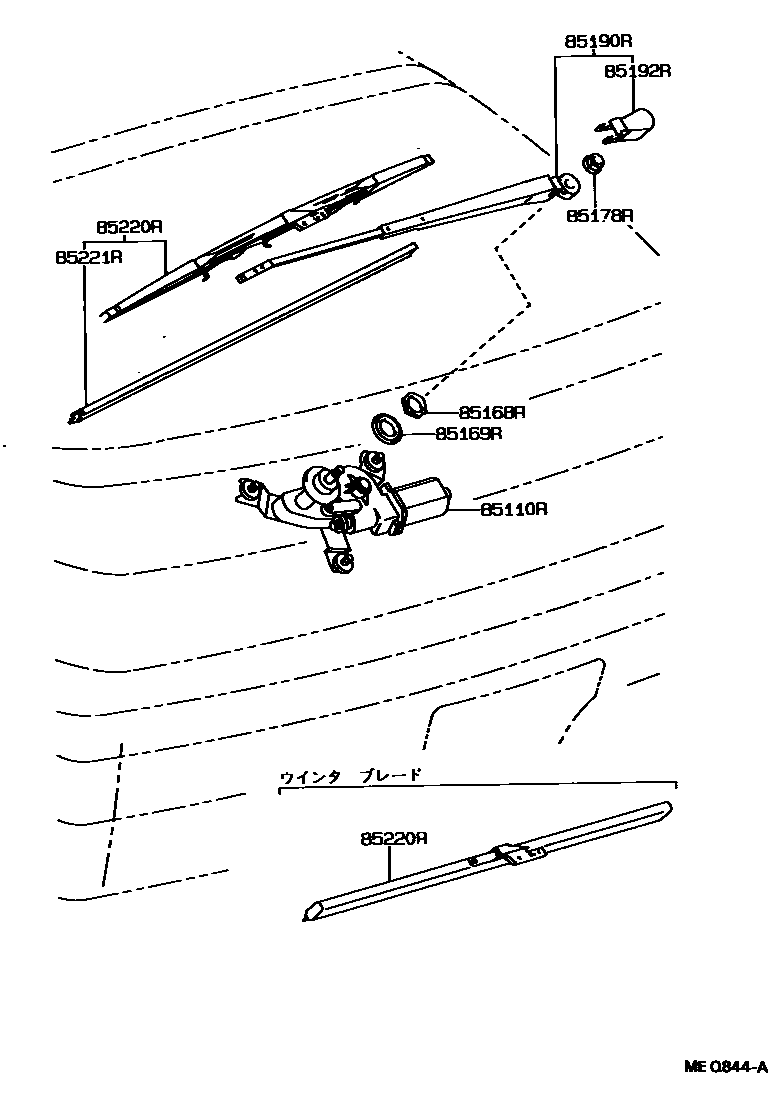

Toyota COROLLA 后刮水器 — Figure 8502
Toyota COROLLA EPC diagram 8502, 后刮水器, with 1 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85110R | Rear wiper motor assembly | 85130-16390 |
| 85168R | No. 1 rear wiper link pivot nut | 90099-05157 |
| 85169R | No. 1 rear wiper link pivot washer | 85134-16390 |
| 85178R | Nut (for securing rear wiper arm) | 90176-06024 · 90179-06158 |
| 85190R | Rear wiper arm assembly | 85241-16010 · 85241-16011 · 85241-16020 · 85241-16021 |
| 85192R | Rear wiper arm cover | 85192-13060 |
| 85220R | Rear wiper blade assembly | 85220-16441 · 85242-16010 · 85242-16011 · 85242-16012 · 85291-16040 |
| 85221R | Rear wiper blade | 85221-16080 · 85243-16020 · 85243-32010 |
