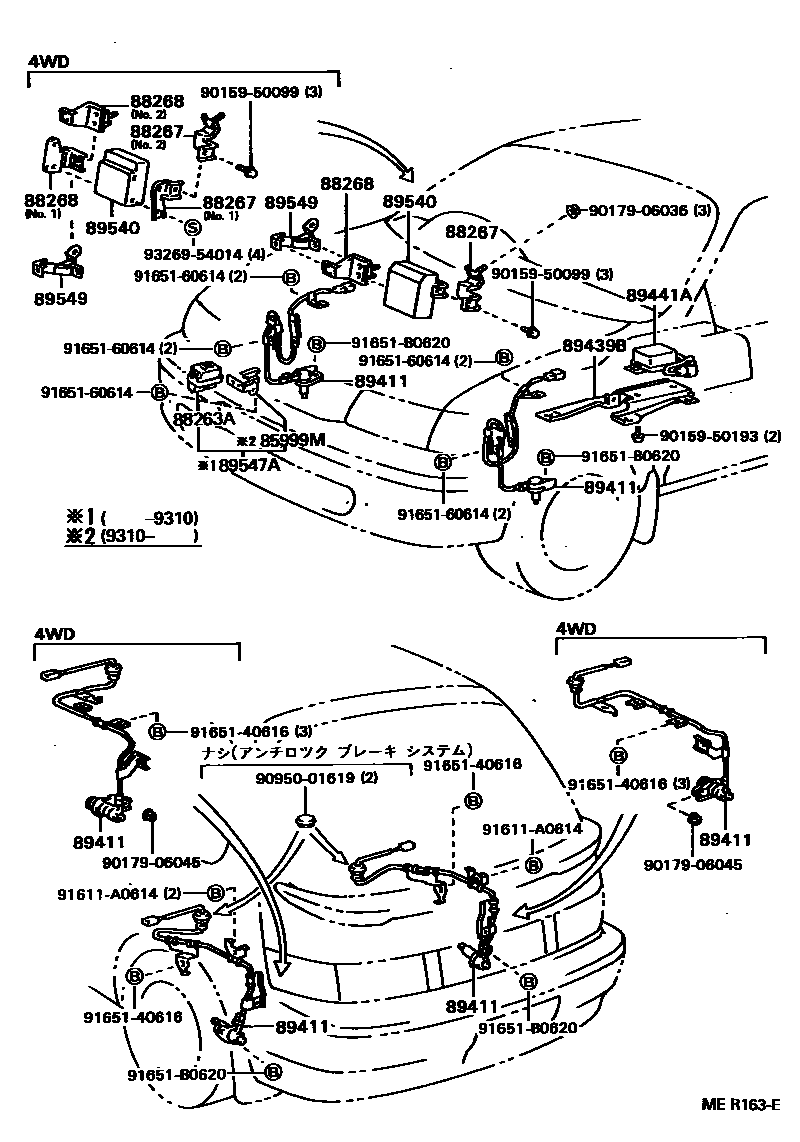

Toyota COROLLA ABS 和 VSC — Figure 8414
Toyota COROLLA EPC diagram 8414, ABS 和 VSC, with 1 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85999M | Relay bracket | 85999-16090 · 85999-16100 |
| 88263A | Anti-skid control relay | 88263-12090 · 88263-16010 |
| 88267 | No. 1 anti-skid control ECU bracket | 88267-16010 · 88267-16020 |
| 88268 | No. 2 anti-skid control ECU bracket | 88268-16010 · 88268-16020 |
| 89411 | Speed sensor | 89542-16010 · 89543-16010 · 89545-16010 · 89545-16020 · 89545-16030 · 89546-16010 · 89546-16020 · 89546-16030 |
| 89439B | Sensor holder | 89439-16010 |
| 89441A | deceleration sensor | 89441-16010 · 89441-20030 |
| 89540 | Anti-skid control ECU assembly | 89541-16010 · 89541-16020 · 89541-16030 · 89541-16050 |
| 89547A | Anti-skid control relay with bracket | 89547-10010 |
| 89549 | Anti-slip control ECU bracket | 89549-16010 |
