Toyota COROLLA 超速档和电子控制变速器 — Figure 8410

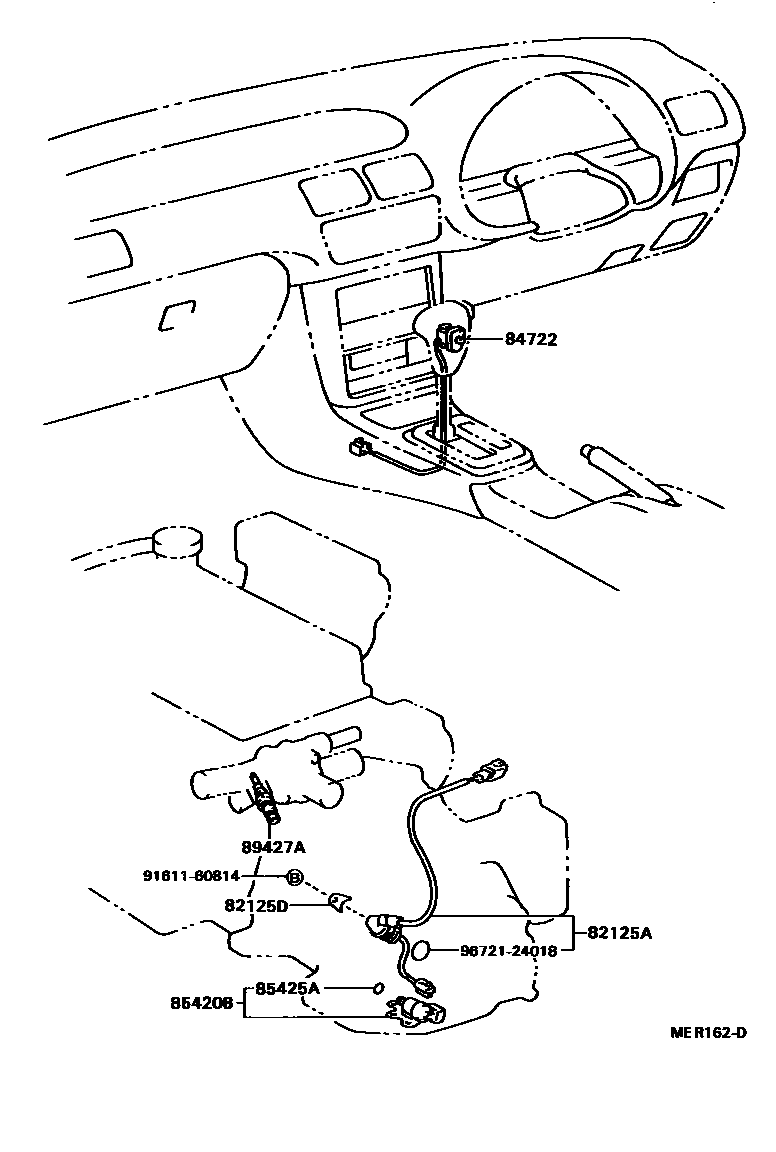

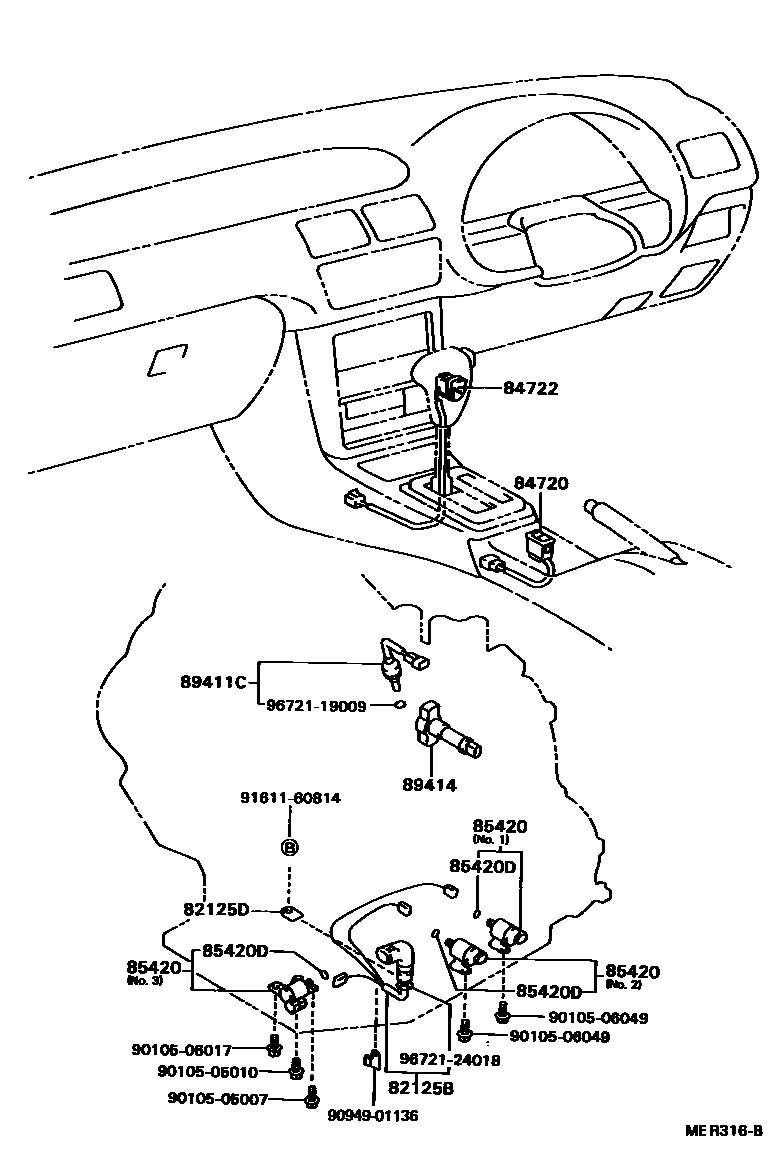

Toyota COROLLA EPC diagram 8410, 超速档和电子控制变速器, with 2 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 82125A | Transmission wiring harness | 82125-20170 |
| 82125B | Transmission wiring harness | 82125-20160 |
| 82125D | Transmission harness locking plate | 33485-30020 |
| 84720 | Mode selection switch assembly | 84720-32041 |
| 85420 | Transmission solenoid valve assembly | 85420-12062 · 85420-22080 |
| 85420B | Transmission solenoid valve assembly | 85420-10011 |
| 85420D | O-ring (for transmission solenoid valve) | 90301-06004 |
| 85425A | O-ring (for overspeed solenoid valve) | 90301-06004 |
| 89411C | Speed sensor | 89411-20040 |
| 89414 | sensor rotor | 89414-12010 |
| 89427A | temperature switch | 89427-10040 · 89427-12070 |
