Toyota COROLLA 电子燃油喷射系统 — Figure 8404

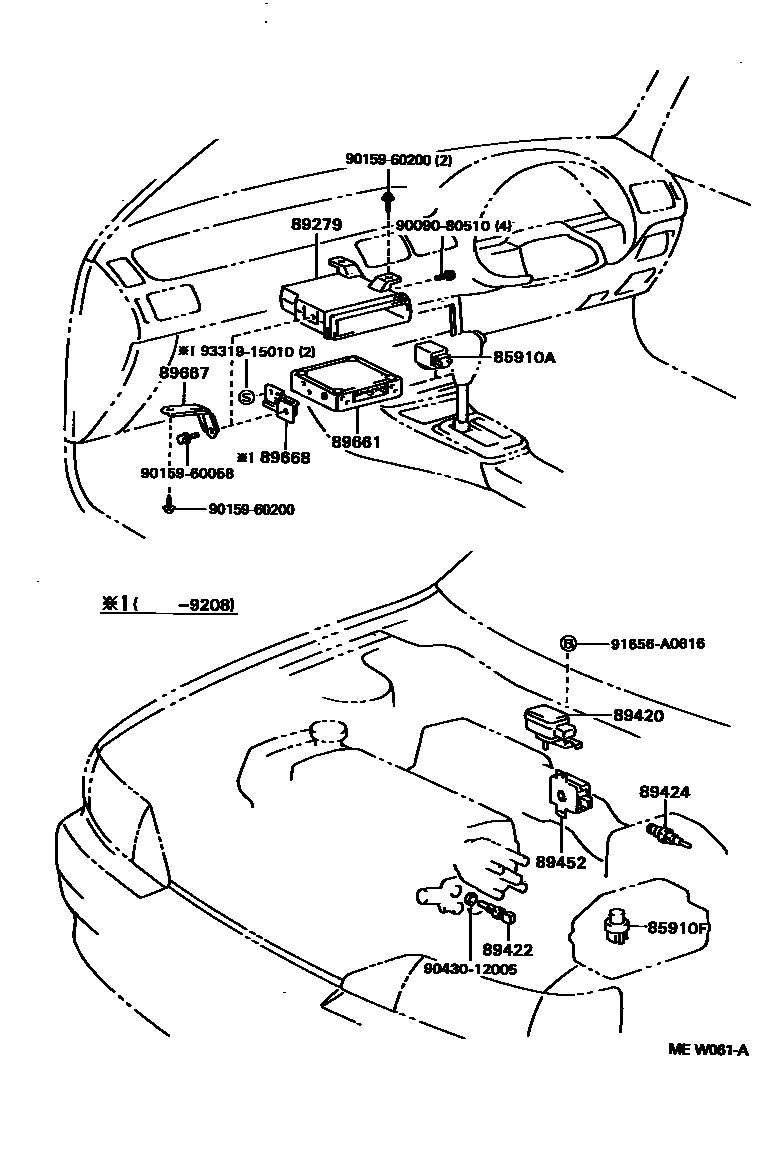

Toyota COROLLA EPC diagram 8404, 电子燃油喷射系统, with 1 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85910A | Circuit breaking relay assembly (for EFI) | 85910-12010 · 85910-16030 |
| 85910F | ECU relay (for EFI) | 90987-02004 · 90987-02009 |
| 89279 | Engine control ECU cover | 89279-16070 · 89279-16090 |
| 89420 | Vacuum sensor assembly | 89420-16020 · 89420-16030 |
| 89422 | Water temperature sensor (for E.F.I.) | 89422-20010 |
| 89424 | Intake air temperature sensor (for E.F.I.) | 89424-12010 |
| 89452 | Throttle position sensor (for E.F.I.) | 89452-12060 · 89452-14020 · 89452-22090 |
| 89661 | Engine control ECU | 89661-16050 · 89661-16070 · 89661-16100 · 89661-16110 · 89661-16120 · 89661-16160 · 89661-16200 · 89661-16201 · 89661-16210 · 89661-16230 · 89661-16240 · 89661-16250 |
| 89667 | Engine control ECU bracket | 89667-16020 · 89667-16040 |
| 89668 | No. 2 engine control ECU bracket | 89668-16020 |
