Toyota COROLLA 蓄电池和蓄电池电缆 — Figure 8201

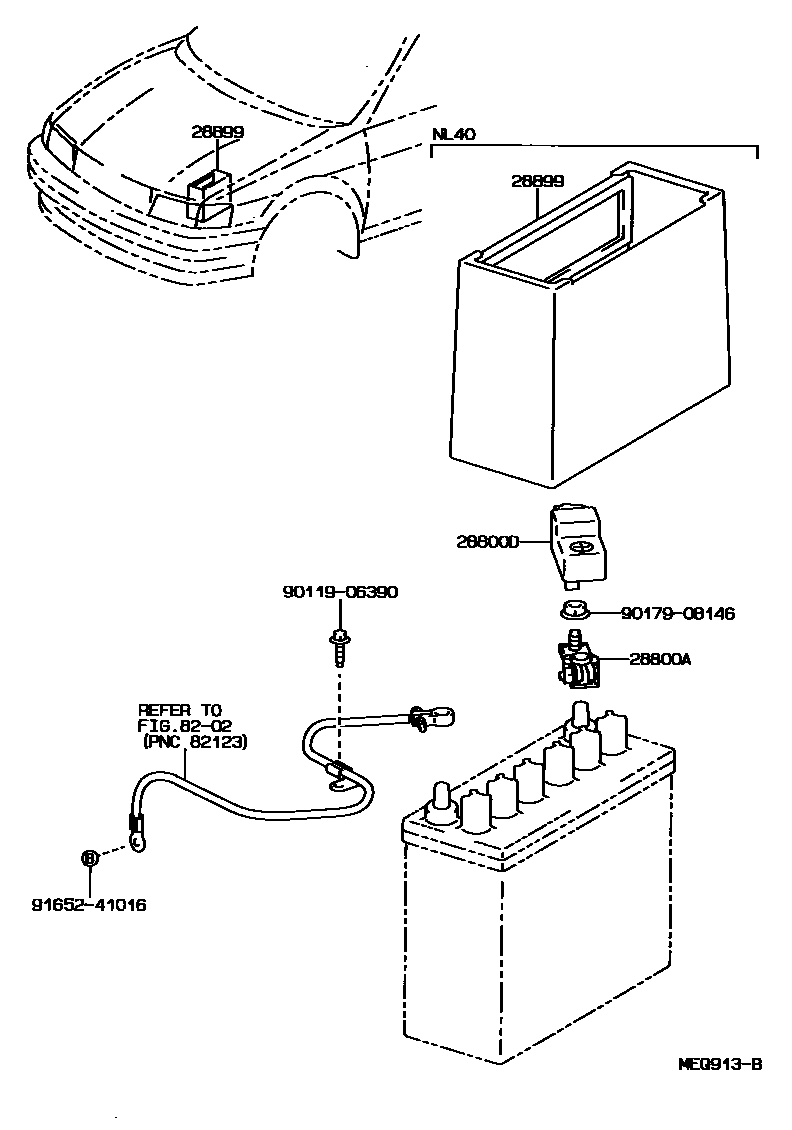

Toyota COROLLA EPC diagram 8201, 蓄电池和蓄电池电缆, with 1 images and 3 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 28800A | battery positive terminal | 90982-05034 · 90982-05035 · 90982-05040 |
| 28800D | Connector cover (for battery terminals) | 82821-16050 · 82821-16060 |
| 28899 | Battery insulation cover | 28899-55010 · 28899-55020 · 28899-55050 |
