Toyota COROLLA 后组合灯 — Figure 8111

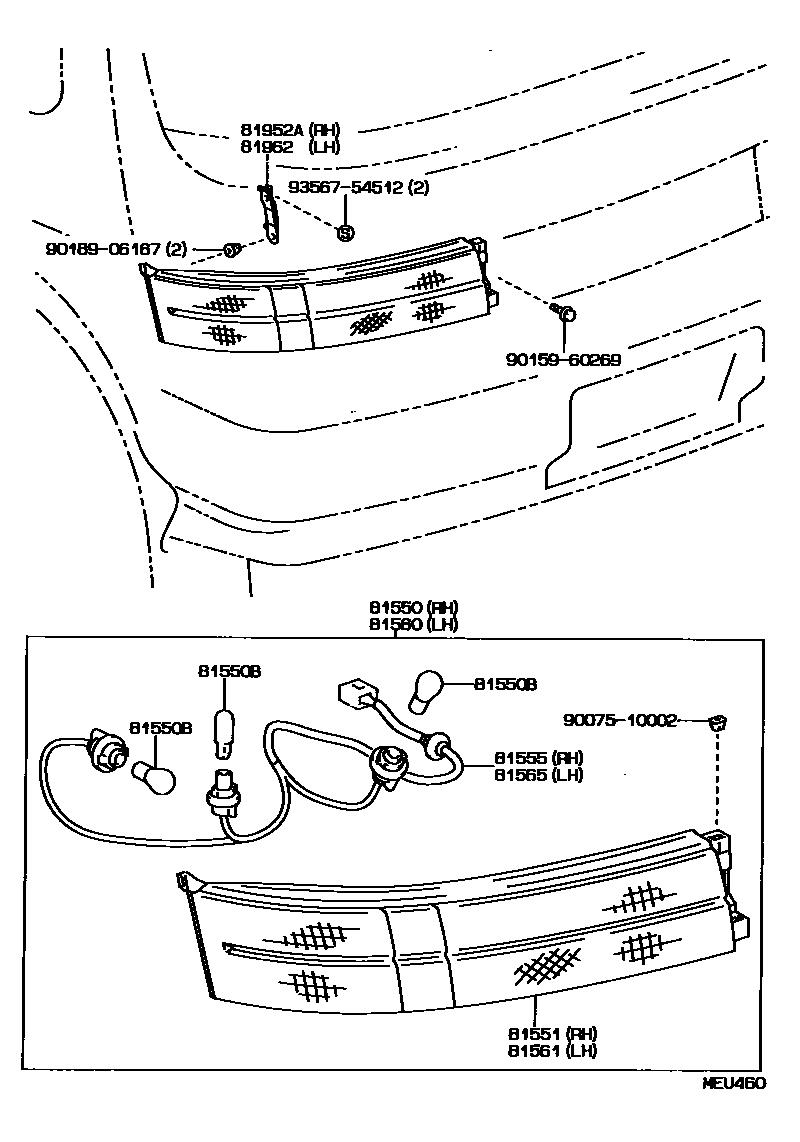

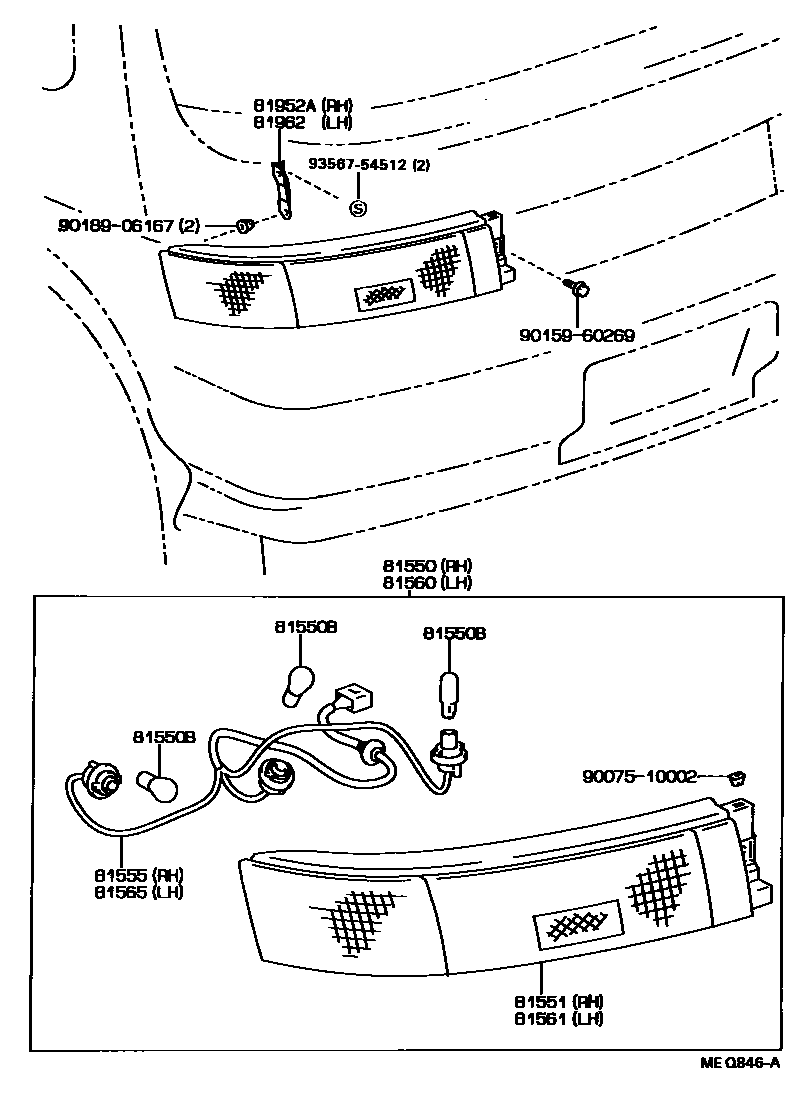

Toyota COROLLA EPC diagram 8111, 后组合灯, with 2 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81550 | Right rear combination light assembly | 81550-16430 · 81550-16470 |
| 81550B | Bulb (for rear combination lights) | 90981-11039 · 99132-11210 · 99132-21210 |
| 81551 | Right rear combination lamp shade | 81551-16430 · 81551-16470 |
| 81555 | Right rear combination lamp lamp holder and wiring harness sub-assembly | 81555-16430 · 81555-16470 · 81555-16471 |
| 81560 | Left rear combination light assembly | 81560-16470 · 81560-16510 |
| 81561 | Left rear combination lamp shade | 81561-16470 · 81561-16510 |
| 81565 | Left rear combination lamp lamp holder and wiring harness sub-assembly | 81555-16430 · 81555-16470 · 81555-16471 |
| 81952A | Right rear light cover | 61663-16010 |
| 81962 | Left rear light cover | 61664-16010 |
