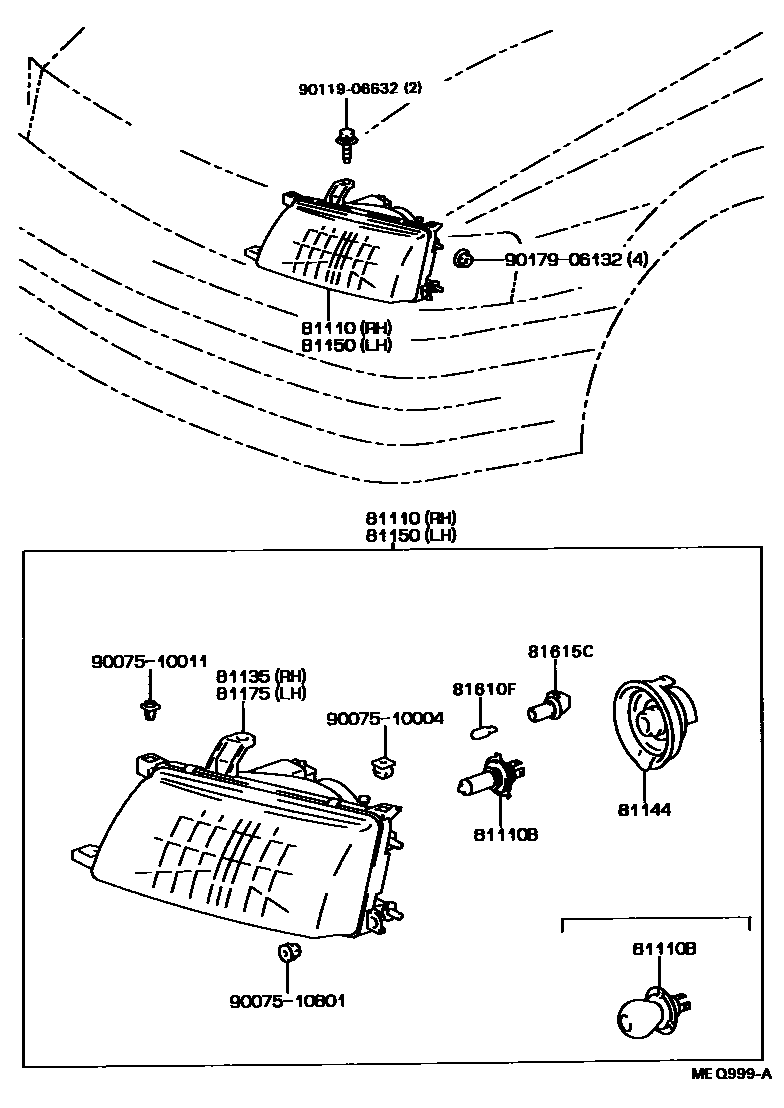

Toyota COROLLA Headlamp — Figure 8101
Toyota COROLLA EPC diagram 8101, Headlamp, with 1 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81110 | Right headlight assembly | 81110-16480 · 81110-16490 · 81110-16491 |
| 81110B | Bulb (for headlight No. 1) | 90981-13015 · 90981-13022 |
| 81135 | Right headlight assembly | 81130-16480 · 81130-16490 · 81130-16491 |
| 81144 | No. 1 headlight cover | 81139-20730 |
| 81150 | Left headlight assembly | 81150-16480 · 81150-16490 · 81150-16491 |
| 81175 | Left headlight assembly | 81170-16480 · 81170-16490 · 81170-16491 |
| 81610F | Light bulb (for width indicator light) | 90981-11038 · 99132-12050 |
| 81615C | Width light lamp holder and wiring harness | 90075-99044 |
