Toyota COROLLA accelerator pedal connecting rod — Figure 7801

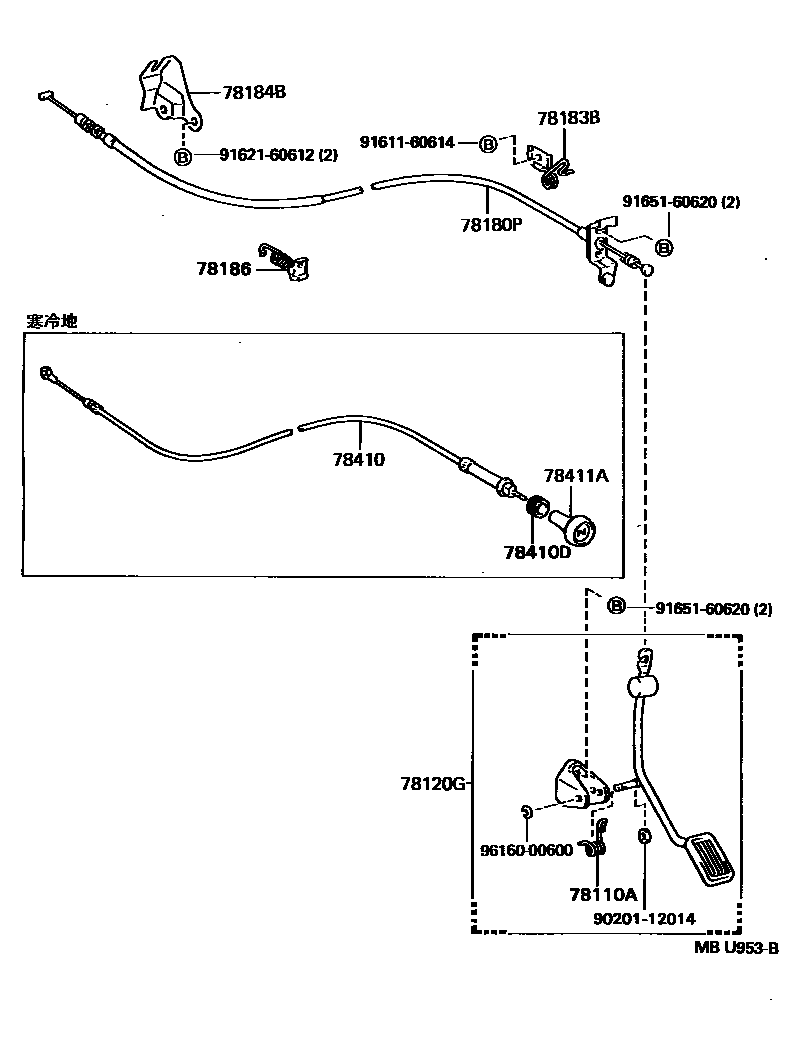

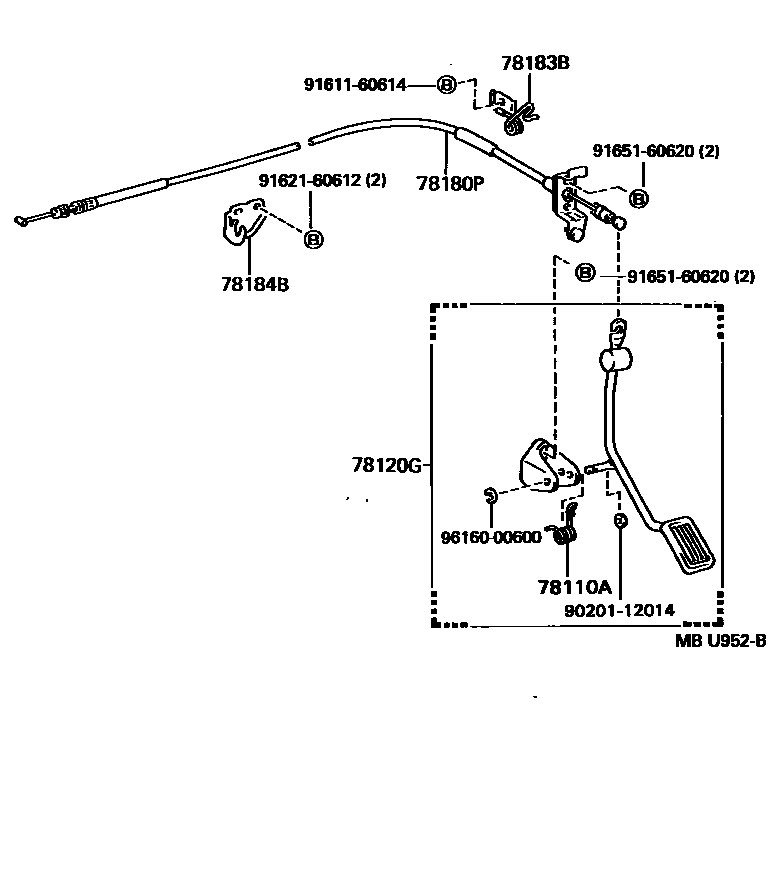

Toyota COROLLA EPC diagram 7801, accelerator pedal connecting rod, with 2 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 78110A | Spring (for accelerator pedal lever) | 90508-20114 · 90508-22002 · 90959-03007 |
| 78120G | Accelerator pedal lever assembly | 78120-16090 · 78120-16110 |
| 78180P | Accelerator pedal control cable assembly | 78180-10440 · 78180-10520 · 78180-10530 · 78180-16280 · 78180-16370 · 78180-16390 |
| 78183B | Accelerator pedal control cable clip | 78183-10060 |
| 78184B | Throttle pedal control cable bracket | 78024-10010 · 78184-10080 · 78184-16040 |
| 78186 | No. 1 accelerator pedal control cable bracket | 78186-16090 |
| 78410 | Throttle valve control cable assembly | 78410-16020 |
| 78410D | throttle nut | 78314-95A00 |
| 78411A | Throttle control cable button | 78411-22010 |
