Toyota COROLLA 挡泥板和扰流板 — Figure 7601

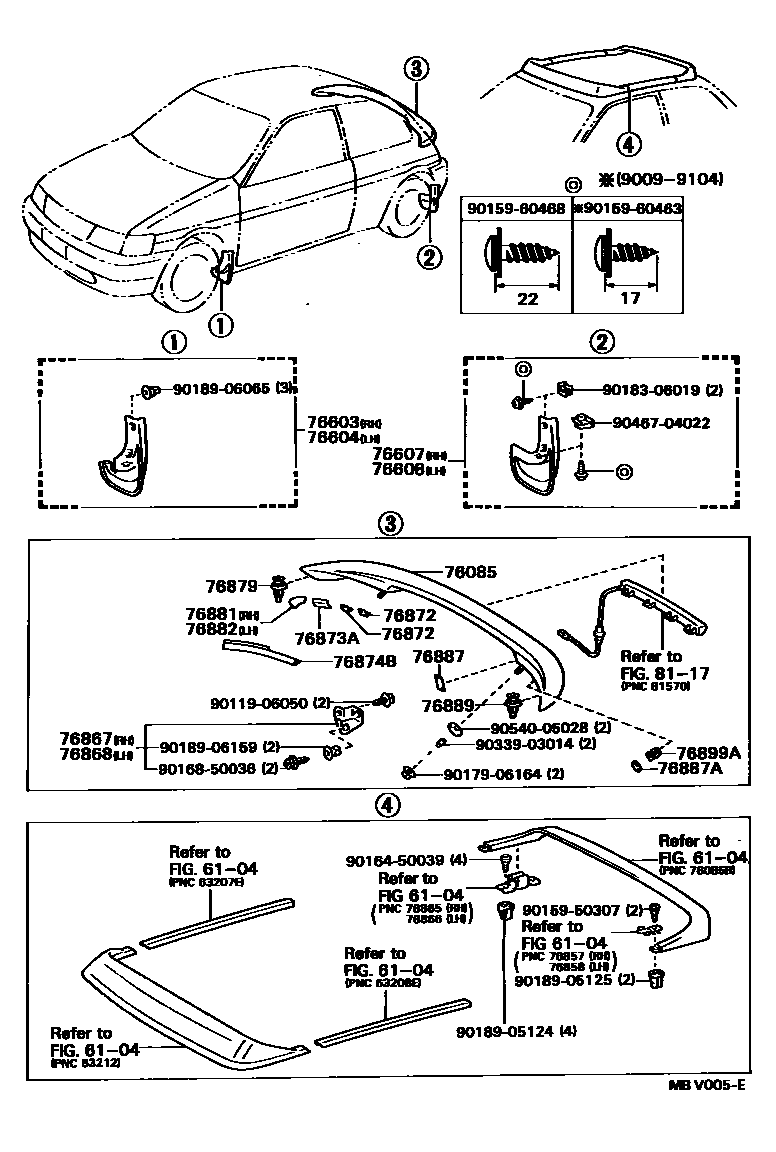

Toyota COROLLA EPC diagram 7601, 挡泥板和扰流板, with 1 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 76085 | Rear spoiler sub-assembly | 76085-16900 |
| 76603 | Right front fender fender sub-assembly | 76621-19185 |
| 76604 | Left front fender fender sub-assembly | 76622-19185 |
| 76607 | Right rear side fender sub-assembly | 76625-19395 |
| 76608 | Left rear side fender sub-assembly | 76626-19395 |
| 76867 | Right rear spoiler fixing | 76867-16030 |
| 76868 | Left rear spoiler fixing | 76868-16020 |
| 76872 | No. 1 rear spoiler protective strip | 76872-16020 |
| 76873A | Right rear spoiler protective strip | 76873-16030 |
| 76874B | Left rear spoiler protective strip | 76874-16030 |
| 76879 | No. 1 rear spoiler clip | 76879-16020 |
| 76881 | No. 1 right rear spoiler protective strip | 76881-16010 |
| 76882 | No. 1 left rear spoiler protective strip | 76882-16010 |
| 76887 | Rear spoiler seal | 76887-16030 |
| 76887A | Rear spoiler seal | 76887-21010 |
| 76889 | No. 2 rear spoiler clip | 76889-16050 |
| 76899A | rear spoiler nut | 76899-16010 |
